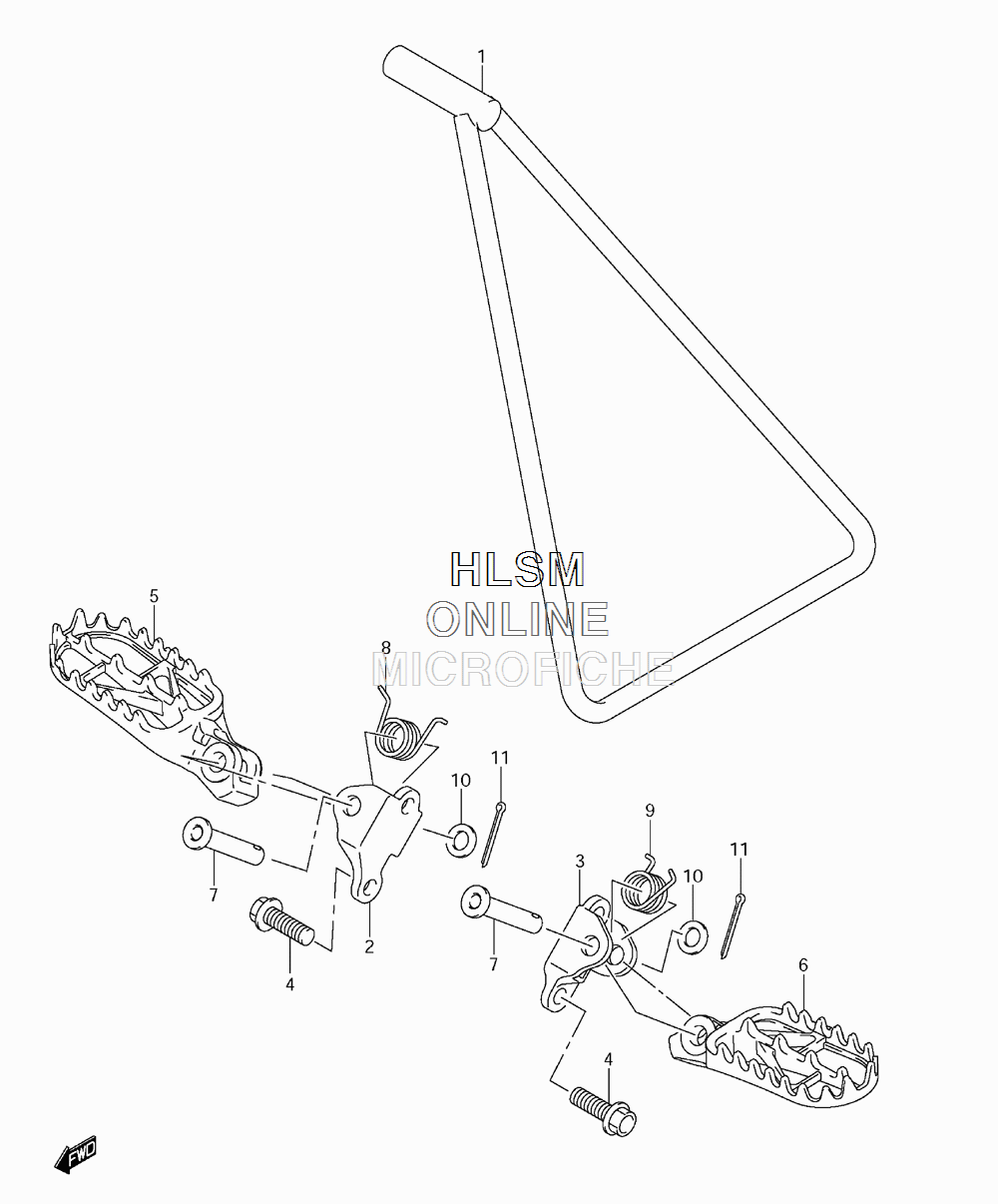

FOOTREST для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
142310-28H10 STANDSTAND
-
241855-28H10 BRACKET, FOOTREST RIGHTBRACKET, FOOTREST RIGHT
-
341865-28H10 BRACKET, FOOTREST LEFTBRACKET, FOOTREST LEFT
-
409103-10415 BOLT (10X25)BOLT (10X25)
-
543551-28H10 FOOTREST, RIGHTFOOTREST, RIGHT
-
643561-28H10 FOOTREST, LEFTFOOTREST, LEFT
-
709200-10019 PIN (10X41.5)PIN (10X41.5)
-
843581-28H10 SPRING, FOOTREST RIGHTSPRING, FOOTREST RIGHT
-
943591-28H10 SPRING, FOOTREST LEFTSPRING, FOOTREST LEFT
-
1009160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
1104111-2520A COTTER PINCOTTER PIN
