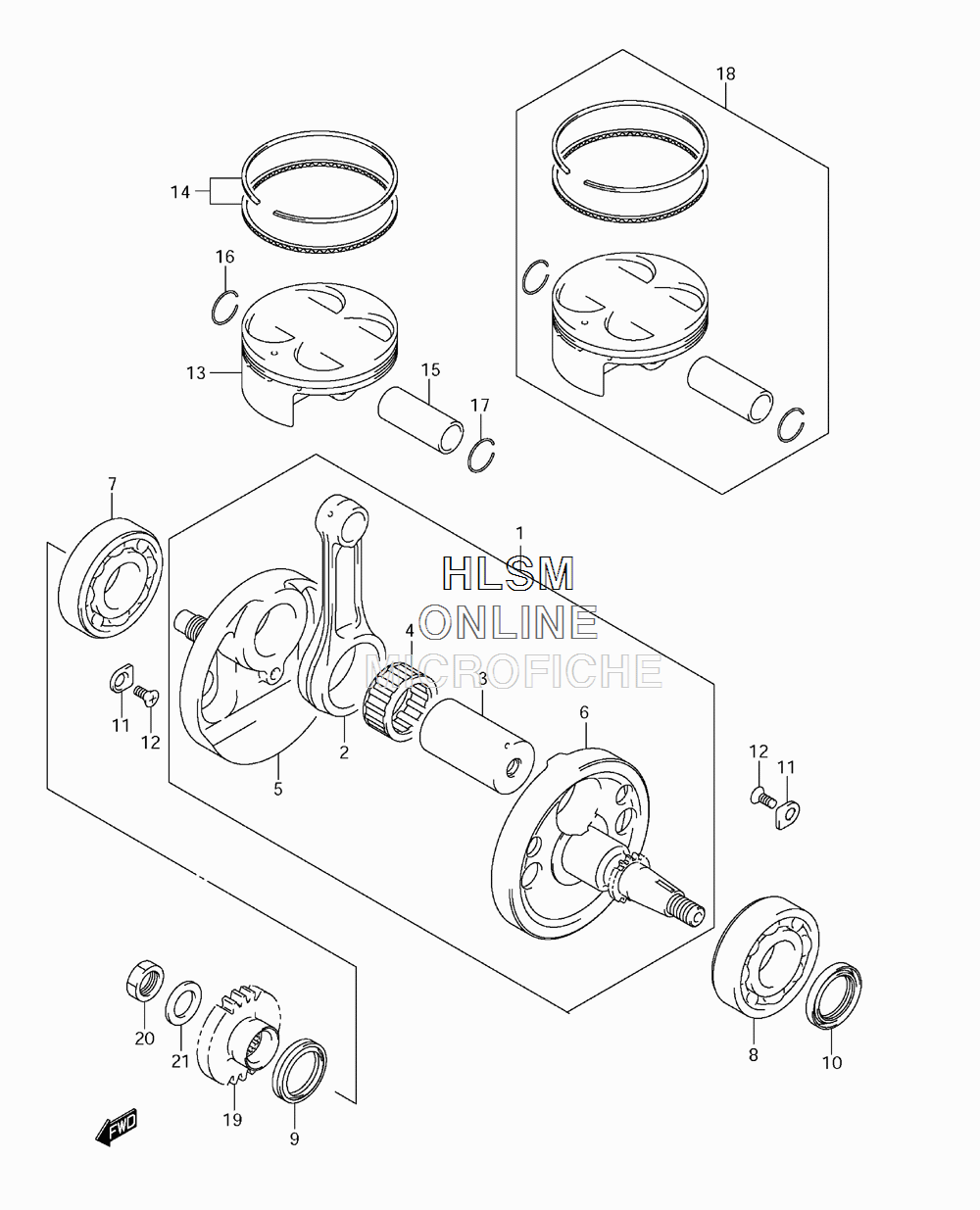

CRANKSHAFT W/ PISTON для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
112200-28H20 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-35G01-0B0 ...ROD, CONNECTING...ROD, CONNECTING
-
312210-35G03 ...PIN...PIN
-
409263-34014-0B0 ...BEARING (34X42X20)...BEARING (34X42X20)
-
512220-28H10 ...CRANKSHAFT, RIGHT...CRANKSHAFT, RIGHT
-
612261-28H10 ...CRANKSHAFT, LEFT...CRANKSHAFT, LEFT
-
709262-30115 BEARING (30X72X19)BEARING (30X72X19)
-
809262-32017 BEARING (32X75X20)BEARING (32X75X20)
-
909283-30061 OIL SEAL (30X40X7)OIL SEAL (30X40X7)
-
1009283-32037 OIL SEAL (32X47X6)OIL SEAL (32X47X6)
-
1124741-20A00 RETAINER, CRANKSHAFT BEARINGRETAINER, CRANKSHAFT BEARING
-
1209126-06011 SCREW (6X12)SCREW (6X12)
-
1312111-28H20-0F0 PISTONPISTON
-
1412140-28820 RING SETRING SET
-
1512151-28H00 PIN, PISTONPIN, PISTON
-
1609381-19001 CIRCLIPCIRCLIP
-
1709381-19005 CIRCLIPCIRCLIP
-
1812110-28840 PISTON KITPISTON KIT
-
1921111-28H00 GEAR, PRIMARY DRIVE (NT:24)GEAR, PRIMARY DRIVE (NT:24)
-
2009140-16037 NUTNUT
-
2109164-16002 WASHERWASHER
