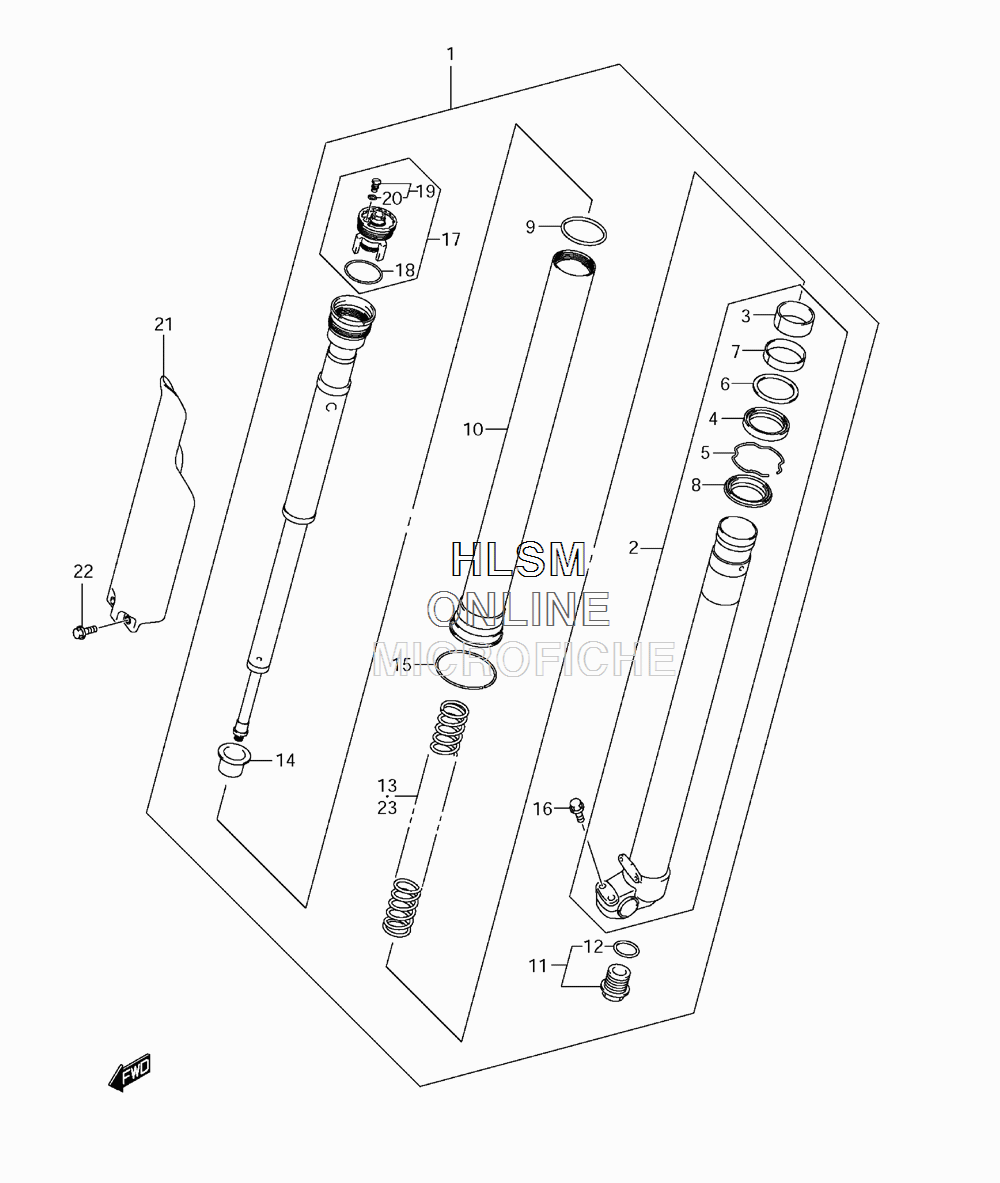

FRONT FORK DAMPER - RIGHT HAND для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
151103-28H30 DAMPER ASSY, FRONT FORK RIGHTDAMPER ASSY, FRONT FORK RIGHT
-
251110-28H30 ...TUBE...TUBE
-
351121-28H30 ...BUSH, SLIDE...BUSH, SLIDE
-
451153-28H30 ...SEAL, OIL...SEAL, OIL
-
551156-28H30 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
651158-28H30 ...SPACER, SEAL...SPACER, SEAL
-
751167-28H30 ...BUSH, GUIDE...BUSH, GUIDE
-
851173-28H30 ...SEAL, DUST...SEAL, DUST
-
951118-28H30 ...O RING...O RING
-
1051130-28H30 ...TUBE, OUTER...TUBE, OUTER
-
1151140-28H30 ...BOLT, CENTER...BOLT, CENTER
-
1262131-27C40 ......O RING......O RING
-
1351171-28H60 ...SPRING, FRONT...SPRING, FRONT
-
1451182-28H30 ...GUIDE SPRING...GUIDE SPRING
-
1551211-37FC0 ...STOPPER RING...STOPPER RING
-
1651328-37F80 ...BOLT...BOLT
-
1751360-28H30 ...BOLT, ADJUSTER...BOLT, ADJUSTER
-
1851187-01H00 ......O RING......O RING
-
1951357-36F20 ......BOLT, PLUG......BOLT, PLUG
-
2051358-28E30 .........O RING.........O RING
-
2151501-28H21 PROTECTOR, RIGHTPROTECTOR, RIGHT
-
2209111-06098 BOLT (6X10)BOLT (6X10)
-
2351171-28H50 SPRING, FRONT (SOFT)SPRING, FRONT (SOFT)
-
2351171-28H70 SPRING, FRONT (HARD)SPRING, FRONT (HARD)
