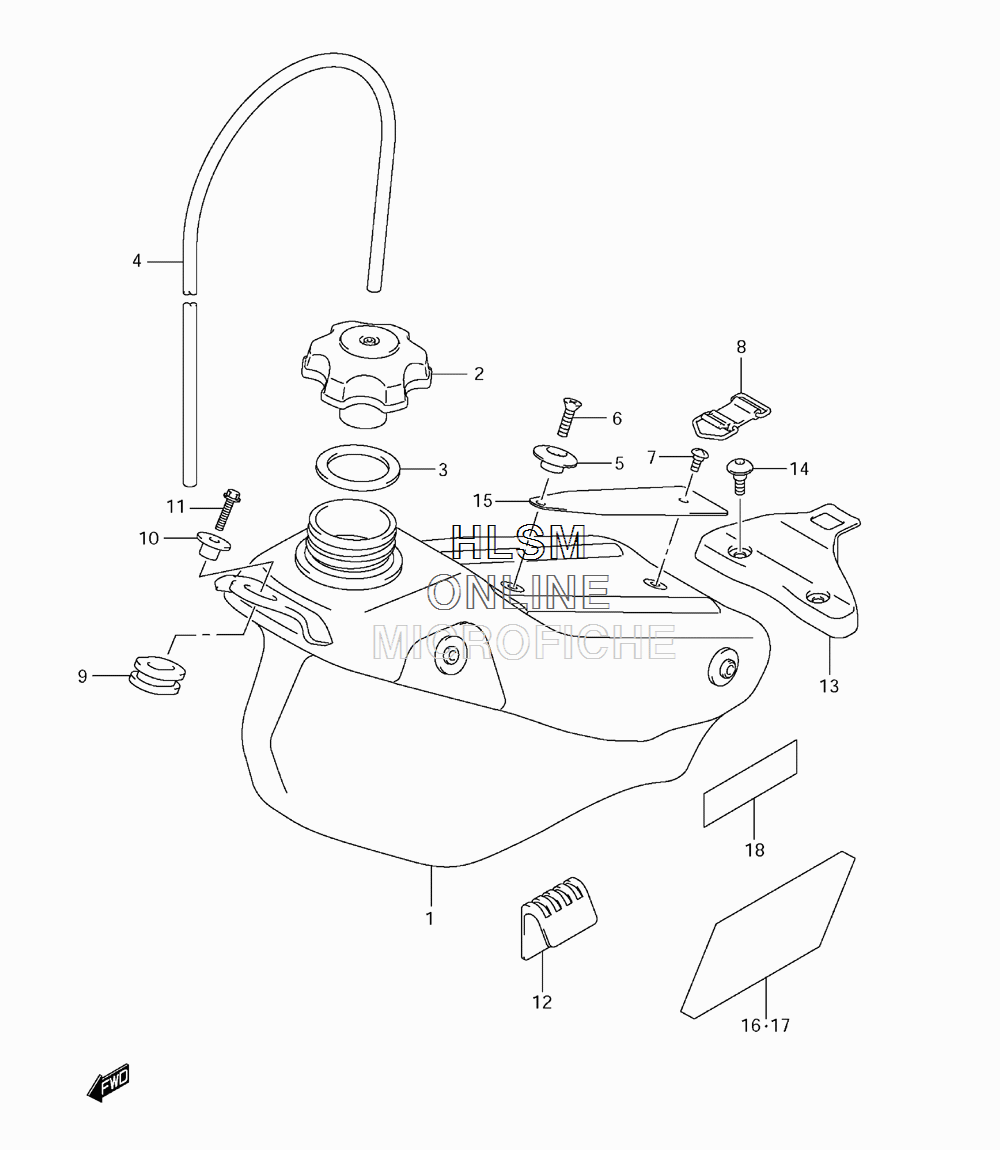

FUEL TANK для Suzuki RM-Z450L3 - 2013 года выпуска
-
№АртикулНазвание
-
144110-28H20 TANK, FUELTANK, FUEL
-
244210-37F00 CAP, FUEL TANK FILLERCAP, FUEL TANK FILLER
-
344248-27C00 GASKETGASKET
-
409352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
544132-37F10 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
602122-0620B SCREWSCREW
-
709139-06134 SCREW (6X13.5)SCREW (6X13.5)
-
844560-27C00 BAND, FUEL TANK REARBAND, FUEL TANK REAR
-
944541-28H00 CUSHION, TANK FRONTCUSHION, TANK FRONT
-
1044134-35G02 SPACERSPACER
-
1109103-06213 BOLT (6X30)BOLT (6X30)
-
1244543-49H00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
1344542-28H10 CUSHION, TANK REARCUSHION, TANK REAR
-
1409139-05074 BOLT (5X13)BOLT (5X13)
-
1544280-28H00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
1617795-28H00 PROTECTOR, RADIAOTR COVER RIGHTPROTECTOR, RADIAOTR COVER RIGHT
-
1717796-28H00 PROTECTOR, RADIAOTR COVER LEFTPROTECTOR, RADIAOTR COVER LEFT
-
1817797-28H00 PROTECTOR, RADIAOTR COVERPROTECTOR, RADIAOTR COVER
