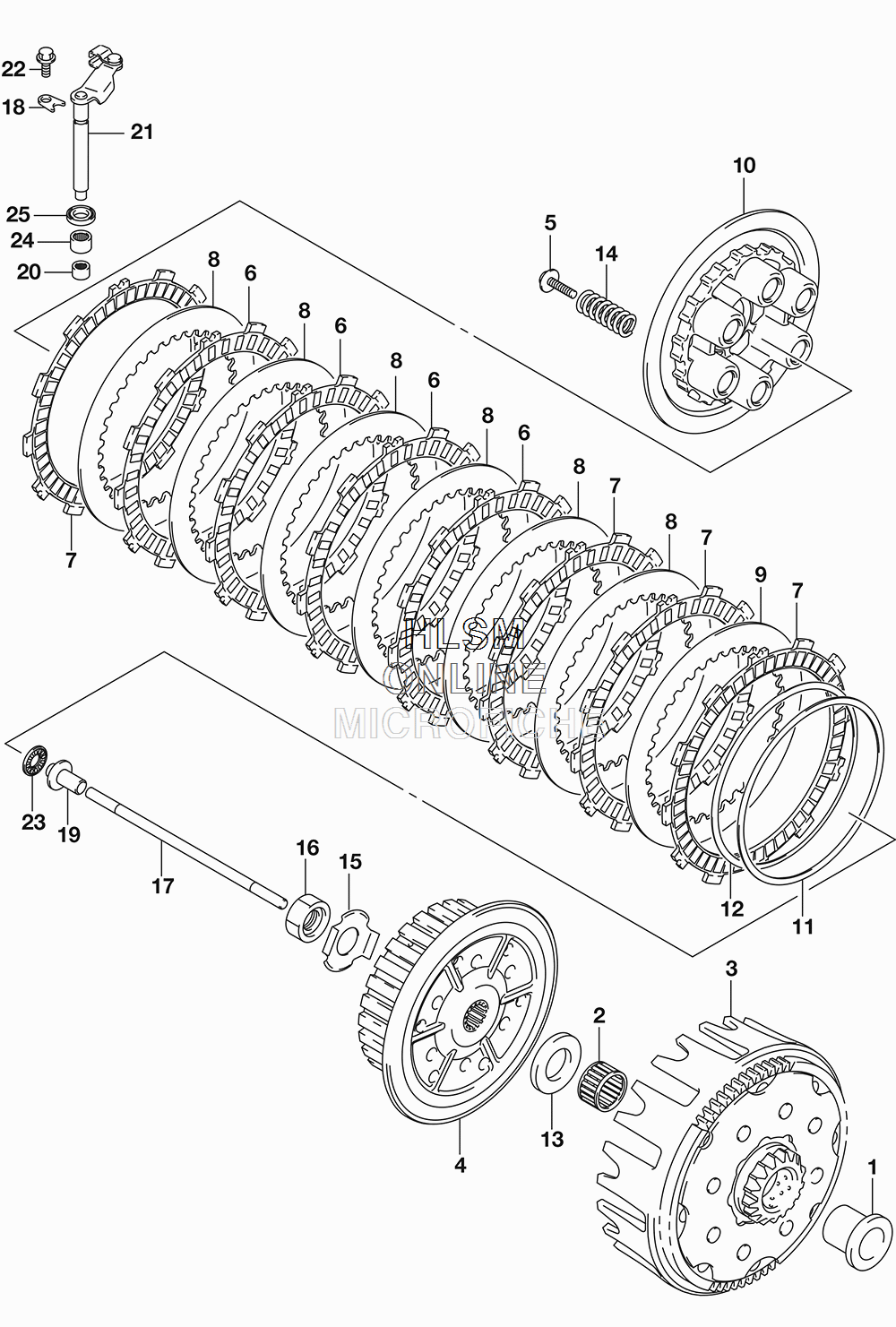

CLUTCH для Suzuki RM-X450ZL7 - 2017 года выпуска

№

Артикул

Название
1

21251-28H00 SPACER, PRIMARY DRIVEN GEAR

SPACER, PRIMARY DRIVEN GEAR

7 470 ₽
2

09263-28042 BEARING (28X32X26)

BEARING (28X32X26)

4 230 ₽
3

21200-02J00 GEAR ASSY, PRIMARY DRIVEN (NT:16/65)

GEAR ASSY, PRIMARY DRIVEN (NT:16/65)

65 260 ₽
4

21411-35G11 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE

17 340 ₽
5

21412-35G00 BOLT, CLUTCH SPRING

BOLT, CLUTCH SPRING

530 ₽
6

21441-02J00 PLATE, CLUTCH DRIVE NO.1 (T:2.9)

PLATE, CLUTCH DRIVE NO.1 (T:2.9)

4 430 ₽
7

21441-37F30 PLATE, CLUTCH DRIVE NO.2 (T:2.9)

PLATE, CLUTCH DRIVE NO.2 (T:2.9)

2 620 ₽
8

21451-35G00 PLATE, CLUTCH DRIVEN (T:1.6)

PLATE, CLUTCH DRIVEN (T:1.6)

1 880 ₽
9

21452-35G00 PLATE, CLUTCH DRIVEN (T:1.6)

PLATE, CLUTCH DRIVEN (T:1.6)

2 040 ₽
10

21462-28H00 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE

9 970 ₽
11

21471-28H00 SEAT, WAVE WASHER

SEAT, WAVE WASHER

2 580 ₽
12

21472-35G00 WASHER, CLUTCH PLATE WAVE

WASHER, CLUTCH PLATE WAVE

3 360 ₽
13

09160-22082 WASHER (22.5X39X3)

WASHER (22.5X39X3)

2 040 ₽
14

09440-18044 SPRING

SPRING

1 070 ₽
15

21416-35G10 WASHER, CLUTCH SLEEVE HUB LOC

WASHER, CLUTCH SLEEVE HUB LOC

860 ₽
16

09140-18017 NUT

NUT

2 020 ₽
17

23110-28H00 ROD, CLUTCH PUSH

ROD, CLUTCH PUSH

3 640 ₽
18

23117-28H00 RETAINER, CL RELEASE CAMSHAFT

RETAINER, CL RELEASE CAMSHAFT

660 ₽
19

23121-37F00 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH

3 650 ₽
20

23129-35G00 BEARING, CLUTCH RELEASE

BEARING, CLUTCH RELEASE

1 560 ₽
21

23200-02J00 CAMSHAFT, CLUTCH RELEASE

CAMSHAFT, CLUTCH RELEASE

18 990 ₽
22

09103-06280 BOLT (6X12)

BOLT (6X12)

440 ₽
23

09263-10002 BEARING (10X22X2.8)

BEARING (10X22X2.8)

1 780 ₽
24

09263-10014 BEARING (10X14X10)

BEARING (10X14X10)

2 370 ₽
25

09285-10004 OIL SEAL (10X17X5)

OIL SEAL (10X17X5)

590 ₽
