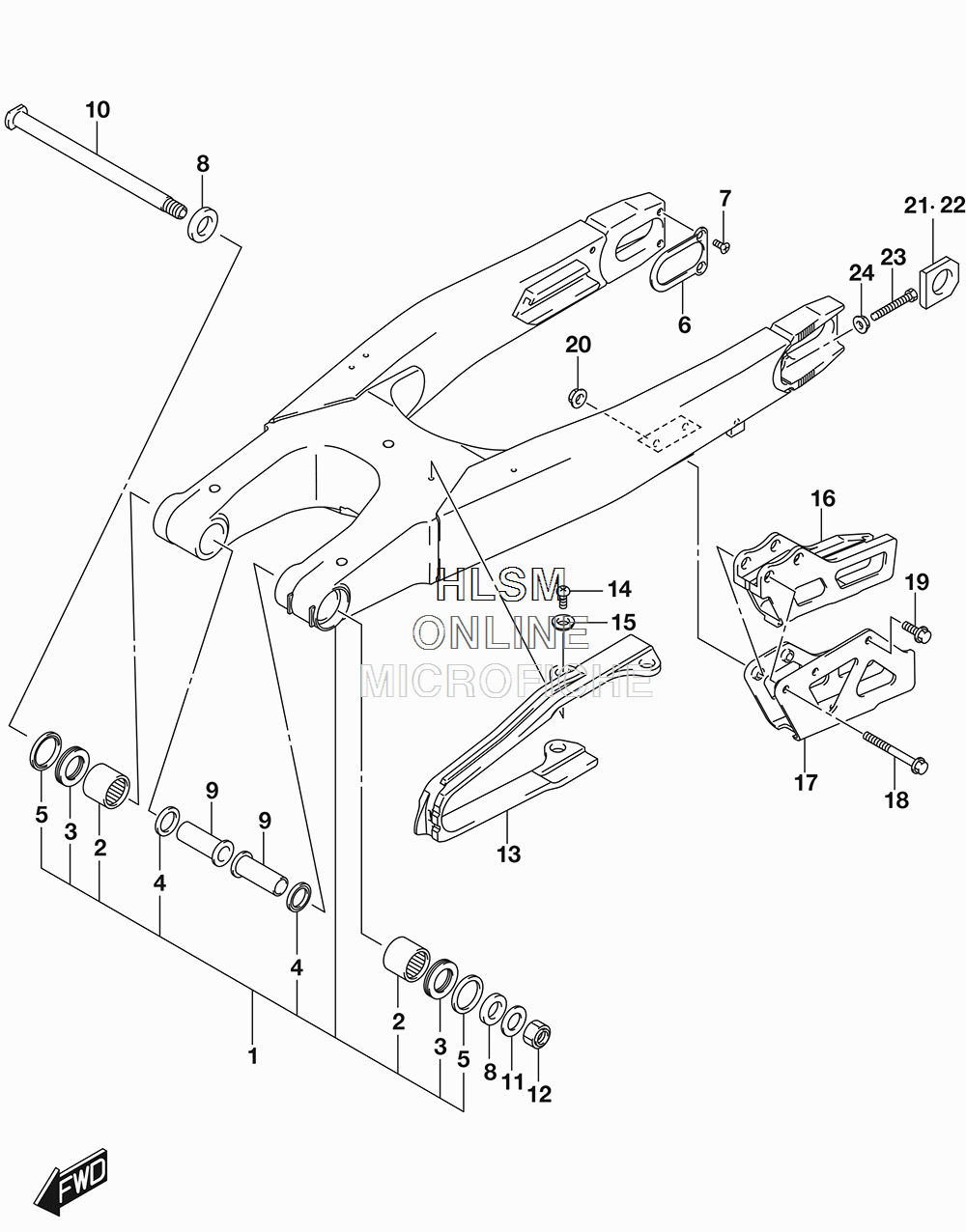

REAR SWINGARM для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
161000-02J10 SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209263-22017 ...BEARING (22X29X30)...BEARING (22X29X30)
-
309263-22064 ...BEARING (22X35X2)...BEARING (22X35X2)
-
409285-22001 ...OIL SEAL (22X29X4)...OIL SEAL (22X29X4)
-
561262-36E00 ...SEAL, OUTER (29.2X37X4)...SEAL, OUTER (29.2X37X4)
-
661128-28H20 ...PLATE, SWINGARM, REAR...PLATE, SWINGARM, REAR
-
709120-05003 ...SCREW (5X10)...SCREW (5X10)
-
861251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
961252-37F01 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
1061211-28H00 SHAFT, PIVOTSHAFT, PIVOT
-
1108322-0116B WASHERWASHER
-
1209159-16007 NUTNUT
-
1361273-37F10 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1402112-0508A SCREWSCREW
-
1509169-05022 WASHERWASHER
-
1661341-35G10 GUIDE, CHAINGUIDE, CHAIN
-
1761342-37F00 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
1801547-0645A BOLT (6X45)BOLT (6X45)
-
1901547-0612A BOLTBOLT
-
2008316-1006B NUTNUT
-
2161445-28H11 WASHER, CHAIN ADJUSTER (RH)WASHER, CHAIN ADJUSTER (RH)
-
2261446-35G01 WASHER, CHAIN ADJUSTER (LH)WASHER, CHAIN ADJUSTER (LH)
-
2309100-08287 BOLT (8X50)BOLT (8X50)
-
2409159-08034 NUTNUT
