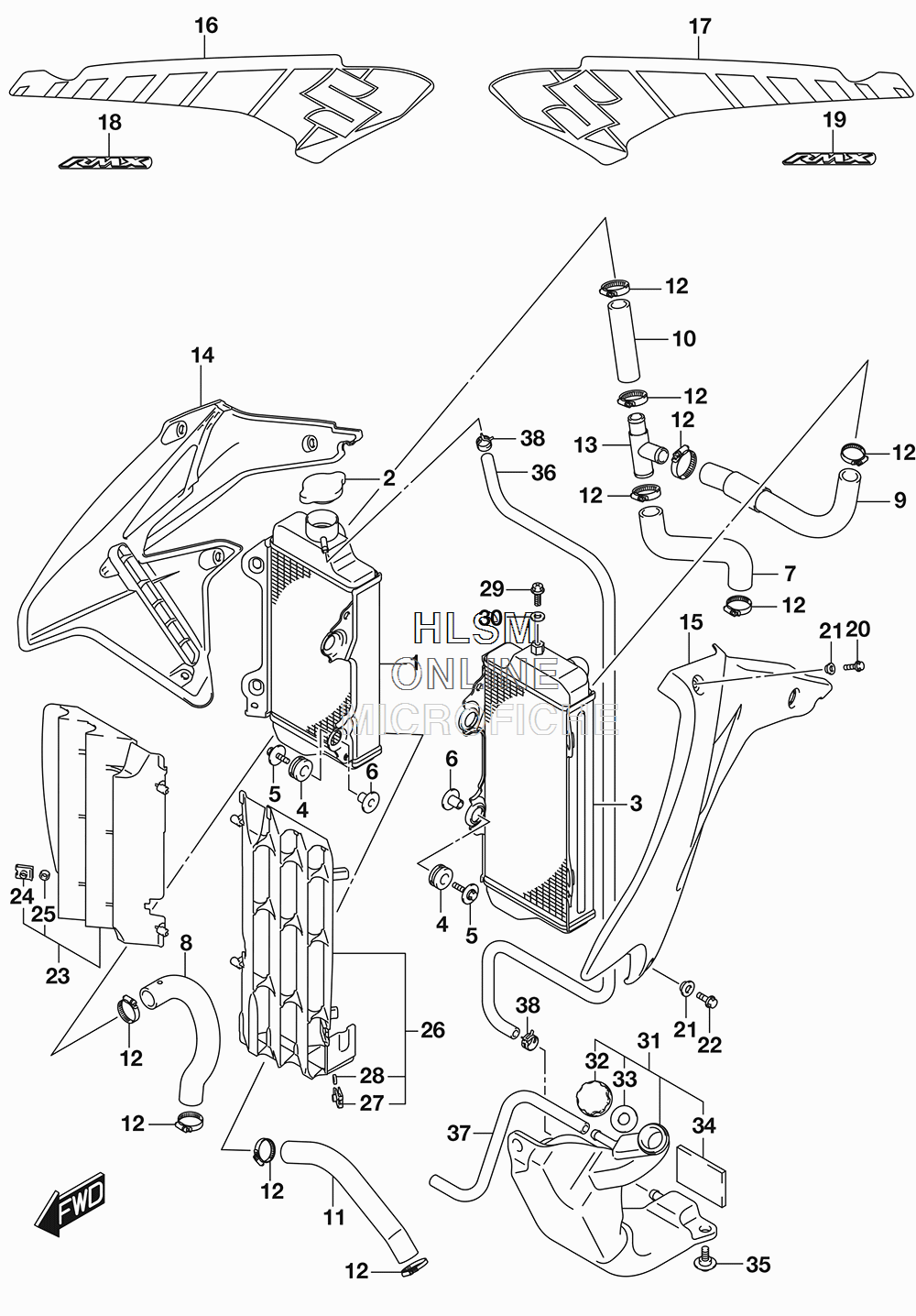

RADIATOR для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
117710-28H21 RADIATOR, (RH)RADIATOR, (RH)
-
217730-08J00 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
317720-28H20 RADIATOR, (LH)RADIATOR, (LH)
-
417787-19A00 CUSHION, SUPPORTCUSHION, SUPPORT
-
509116-06186 BOLT (6X25)BOLT (6X25)
-
609180-06243 SPACER (6.5X10.5X14.1)SPACER (6.5X10.5X14.1)
-
717851-28H00 HOSE, INLETHOSE, INLET
-
817852-28H00 HOSE, OUTLETHOSE, OUTLET
-
917853-28H10 HOSE, JOINT UPPER NO.1HOSE, JOINT UPPER NO.1
-
1017854-28H00 HOSE, JOINT UPPER NO.2HOSE, JOINT UPPER NO.2
-
1117855-28H00 HOSE, JOINT LOWERHOSE, JOINT LOWER
-
1209402-28513 CLAMPCLAMP
-
1317860-02J00 JOINT, RADIATOR HOSEJOINT, RADIATOR HOSE
-
1417761-28H02-GY8 COVER, RADIATOR, (RH) (GY8 - YELLOW/BLACK)COVER, RADIATOR, (RH) (GY8 - YELLOW/BLACK)
-
1517762-28H02-GY8 COVER, RADIATOR, (LH) (GY8 - YELLOW/BLACK)COVER, RADIATOR, (LH) (GY8 - YELLOW/BLACK)
-
1668111-28H00-BDT TAPE, FUEL TANK COVER (RH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)TAPE, FUEL TANK COVER (RH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
-
1768121-28H00-BDT TAPE, FUEL TANK COVER (LH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)TAPE, FUEL TANK COVER (LH) (BDT - WHITE/GRAY/GRAY/BLACK/ORANGE/YELLOW)
-
1868666-02J00-BGJ EMBLEM, "RMX" (BGJ - WHITE/GRAY/BLACK)EMBLEM, "RMX" (BGJ - WHITE/GRAY/BLACK)
-
1968666-02J00-BGJ EMBLEM, "RMX" (BGJ - WHITE/GRAY/BLACK)EMBLEM, "RMX" (BGJ - WHITE/GRAY/BLACK)
-
2001547-0612A BOLTBOLT
-
2147191-02J00 WASHER, RADIATOR COVERWASHER, RADIATOR COVER
-
2201547-0616A BOLTBOLT
-
2317801-28H10 LOUVER, RADIATOR, (RH)LOUVER, RADIATOR, (RH)
-
2409148-06017 ...NUT...NUT
-
2509180-06129 ...SPACER (6.2X10X2.2)...SPACER (6.2X10X2.2)
-
2617802-28H10 LOUVER, RADIATOR, (LH)LOUVER, RADIATOR, (LH)
-
2709148-06017 ...NUT...NUT
-
2809180-06129 ...SPACER (6.2X10X2.2)...SPACER (6.2X10X2.2)
-
2917568-50F00 BOLT, AIR RELEASEBOLT, AIR RELEASE
-
3009168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
3117910-02J00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
3217931-02J00 ...CAP...CAP
-
3317932-02J00 ...GASKET...GASKET
-
3417912-02J00 ...CUSHION...CUSHION
-
3517913-02J00 BOLTBOLT
-
3617981-02J00 HOSE, TANK INLETHOSE, TANK INLET
-
3709352-50901-600 HOSE (5X9X600) (L:600->360)HOSE (5X9X600) (L:600->360)
-
3809401-08411 CLIPCLIP
