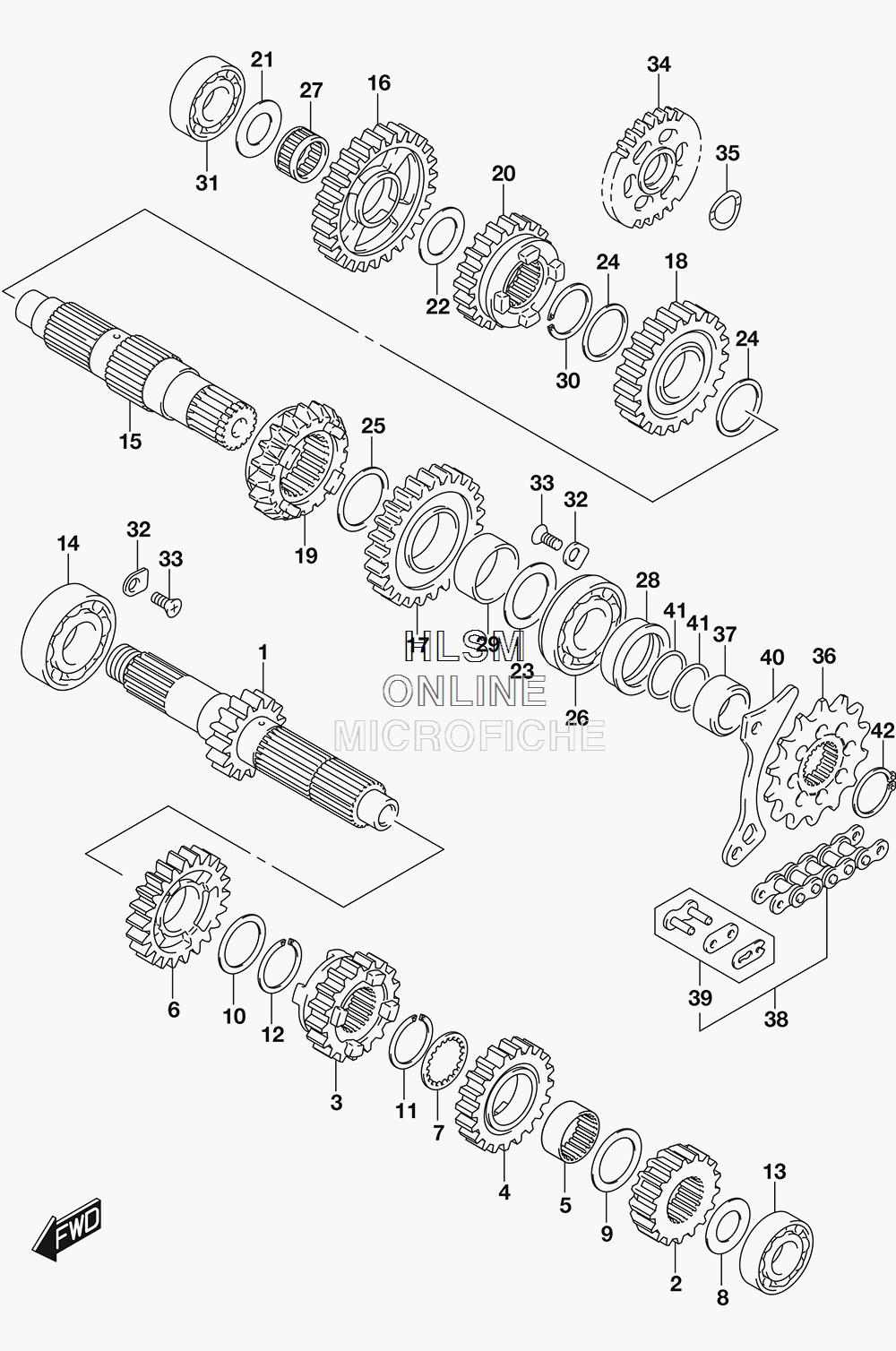

TRANSMISSION для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
124120-02J01 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224221-02J00 GEAR, 2ND DRIVE (NT:18)GEAR, 2ND DRIVE (NT:18)
-
324231-02J00 GEAR, 3RD DRIVE (NT:20)GEAR, 3RD DRIVE (NT:20)
-
424241-02J00 GEAR, 4TH DRIVE (NT:19)GEAR, 4TH DRIVE (NT:19)
-
524242-37F00 BUSH, 4TH DRIVE GEARBUSH, 4TH DRIVE GEAR
-
624251-02J00 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
709167-25026 LOCK WASHER (RH)LOCK WASHER (RH)
-
809181-17223 SHIM (17X30X1)SHIM (17X30X1)
-
909181-25059 SHIM (25X34X1) (LH)SHIM (25X34X1) (LH)
-
1009181-25111 SHIM (25X30X1)SHIM (25X30X1)
-
1109380-25010 CIRCLIPCIRCLIP
-
1209380-25010 CIRCLIPCIRCLIP
-
1308123-62030 BEARING (LH)BEARING (LH)
-
1408143-62057 BEARING (RH)BEARING (RH)
-
1524131-28H00 SHAFT, DRIVESHAFT, DRIVE
-
1624311-02J00 GEAR, 1ST DRIVEN (NT:28)GEAR, 1ST DRIVEN (NT:28)
-
1724321-02J00 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
1824331-02J00 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
1924341-02J00 GEAR, 4TH DRIVEN (NT:19)GEAR, 4TH DRIVEN (NT:19)
-
2024351-02J00 GEAR, 5TH DRIVEN (NT:19)GEAR, 5TH DRIVEN (NT:19)
-
2109181-17223 SHIM (17X30X1) (RH)SHIM (17X30X1) (RH)
-
2209181-20195 SHIM (20X30X1) (LH)SHIM (20X30X1) (LH)
-
2309181-24005 SHIM (24X34X1) (LH)SHIM (24X34X1) (LH)
-
2409181-25111 SHIM (25X30X1)SHIM (25X30X1)
-
2509181-27015 SHIM (27X33X1) (RH)SHIM (27X33X1) (RH)
-
2609262-24001 BEARING (24X56X14) (LH)BEARING (24X56X14) (LH)
-
2709263-20107 BEARING (20X24X10)BEARING (20X24X10)
-
2809289-31003 OIL SEAL (31X40X8.5)OIL SEAL (31X40X8.5)
-
2909300-27005 BUSH (27X31X13)BUSH (27X31X13)
-
3009380-25010 CIRCLIP (RH)CIRCLIP (RH)
-
3108123-62030 BEARING (RH)BEARING (RH)
-
3224741-20A00 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
3309126-06011 SCREW (6X12)SCREW (6X12)
-
3426260-35G00 GEAR, KICK STARTER IDLE (NT:23)GEAR, KICK STARTER IDLE (NT:23)
-
3526264-28H00 WASHER, KICK IDLEWASHER, KICK IDLE
-
36-127511-35G30 SPROCKET, ENGINE (NT:13)SPROCKET, ENGINE (NT:13)
-
36-227511-35G20 SPROCKET, ENGINE (NT:14) (OPT)SPROCKET, ENGINE (NT:14) (OPT)
-
3727531-35G01 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3827600-02J01-114 CHAIN ASSY, DRIVE (DID520MXV 114LE)CHAIN ASSY, DRIVE (DID520MXV 114LE)
-
3927620-02J01 ...JOINT SET, CHAIN...JOINT SET, CHAIN
-
4027641-02J00 PLATE, FRONT CHAIN GUIDEPLATE, FRONT CHAIN GUIDE
-
4109280-21010 O RING (D:1.9,ID:21.8)O RING (D:1.9,ID:21.8)
-
4208331-3124A CIRCLIPCIRCLIP
