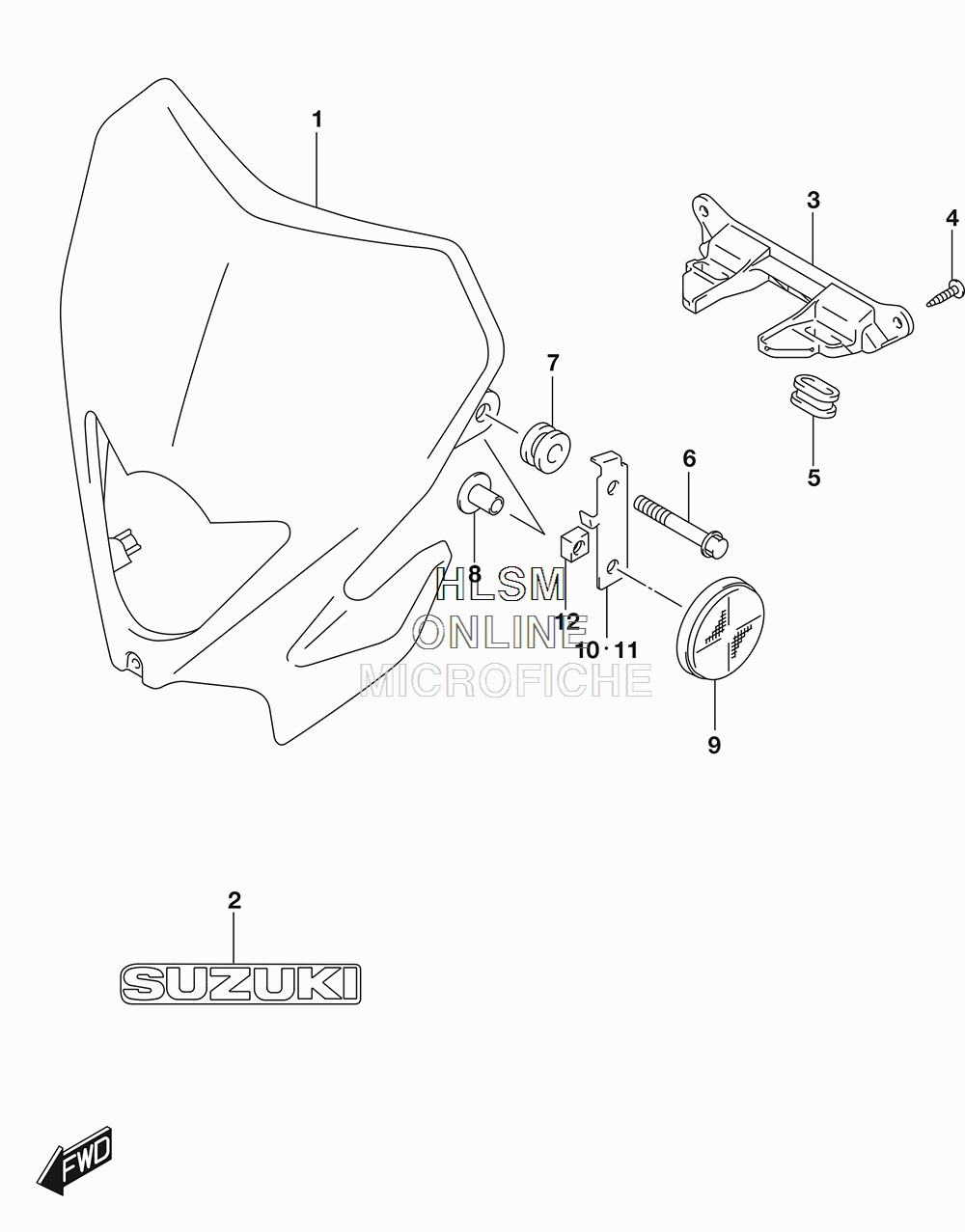

HEADLAMP COVER (CANADA) для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
151811-02J00-YU1 COVER, HEADLAMP (YU1 - YELLOW)COVER, HEADLAMP (YU1 - YELLOW)
-
268721-13A00-GY8 EMBLEM, "SUZUKI" (GY8 - YELLOW/BLACK)EMBLEM, "SUZUKI" (GY8 - YELLOW/BLACK)
-
351821-02J00 COVER, LOWERCOVER, LOWER
-
403541-0516A SCREWSCREW
-
551831-02J00 CUSHIONCUSHION
-
609103-06250 BOLT (6X25)BOLT (6X25)
-
709320-09501 CUSHIONCUSHION
-
809169-06062 WASHERWASHER
-
935950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
1035956-02J00 BRACKET,FR SIDE RR (RH)BRACKET,FR SIDE RR (RH)
-
1135957-02J00 BRACKET,FR SIDE RR (LH)BRACKET,FR SIDE RR (LH)
-
1208316-1005B NUTNUT
