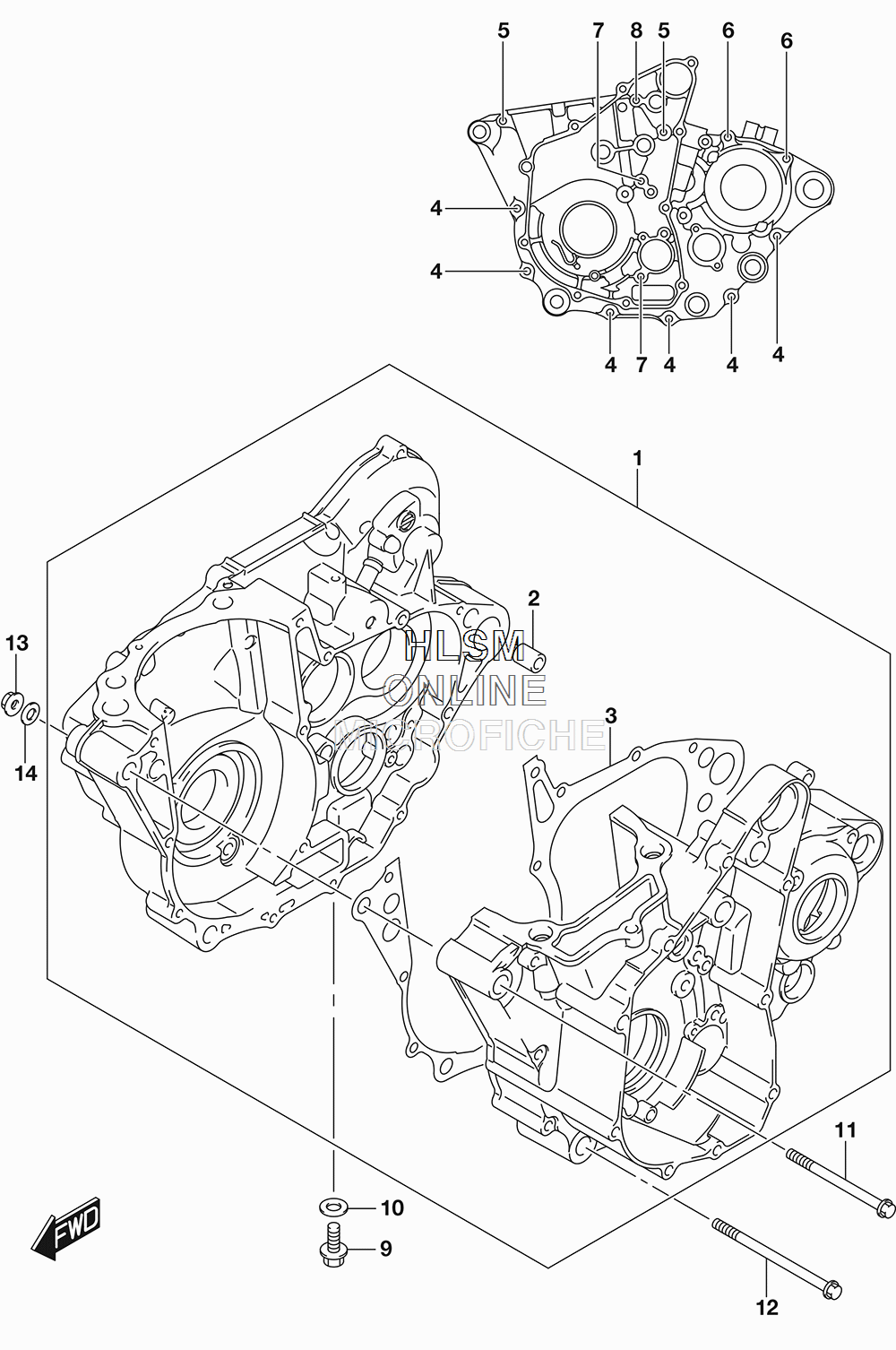

CRANKCASE для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
111302-02810 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN...PIN
-
311481-02J00 ...GASKET, CRANKCASE...GASKET, CRANKCASE
-
401547-0655A ...BOLT...BOLT
-
501547-0665A ...BOLT...BOLT
-
601547-0675A ...BOLT...BOLT
-
701547-0680A ...BOLT...BOLT
-
801547-0690A ...BOLT...BOLT
-
909103-08393 BOLT (8X20) (OIL DRAIN)BOLT (8X20) (OIL DRAIN)
-
1009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1109103-10388 BOLT (10X120)BOLT (10X120)
-
1209103-10399 BOLT (10X125)BOLT (10X125)
-
1309159-10115 NUTNUT
-
1409160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
