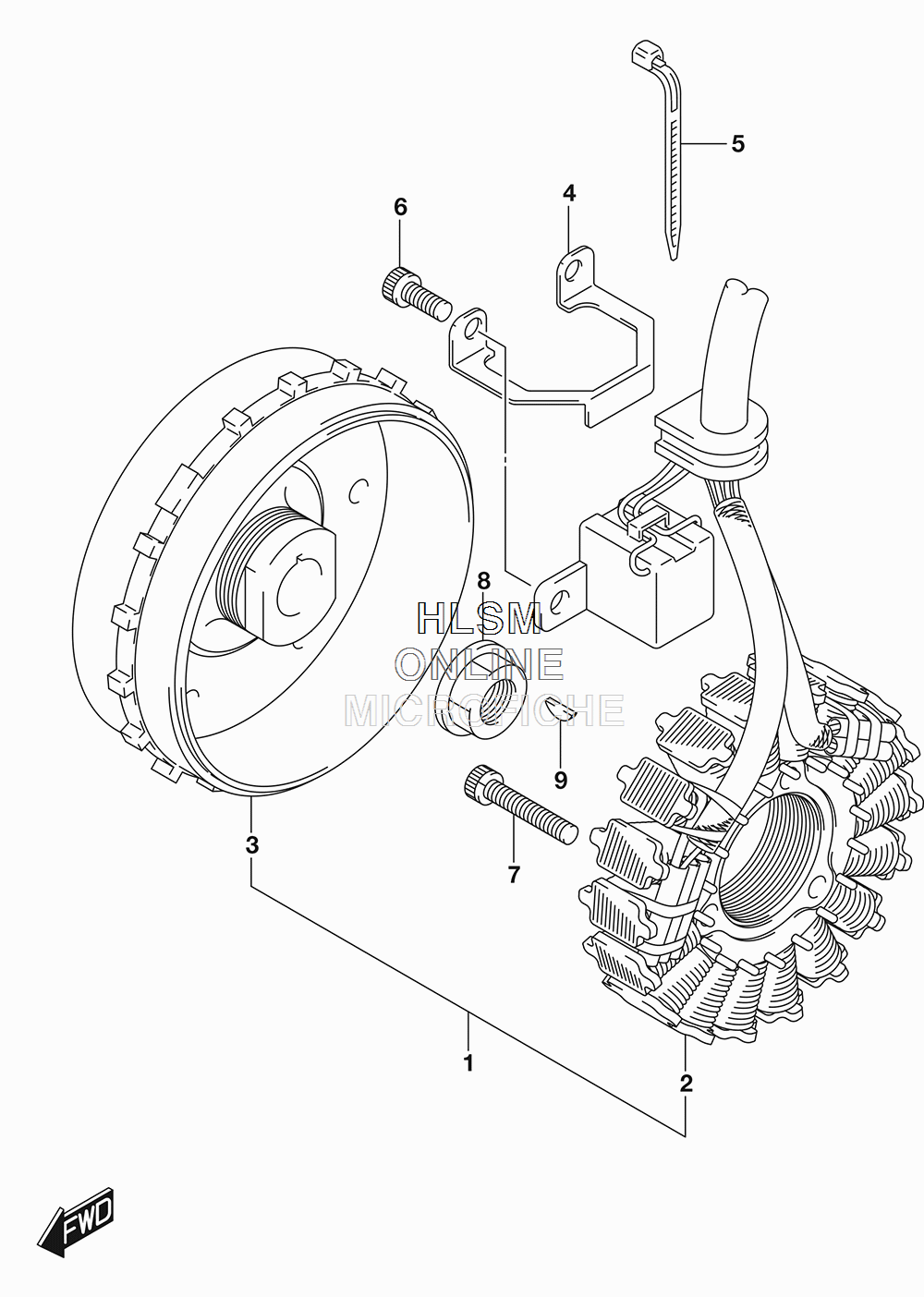

MAGNETO для Suzuki RM-X450ZL7 - 2017 года выпуска
-
№АртикулНазвание
-
132100-02J00 MAGNETO ASSYMAGNETO ASSY
-
232101-02J00 ...STATOR ASSY, MAGNETO...STATOR ASSY, MAGNETO
-
332102-02J00 ...ROTOR ASSY, MAGNETO...ROTOR ASSY, MAGNETO
-
432371-02J00 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
607130-0512A BOLTBOLT
-
707130-0525A BOLTBOLT
-
809159-12068 NUTNUT
-
909420-03008 KEYKEY
