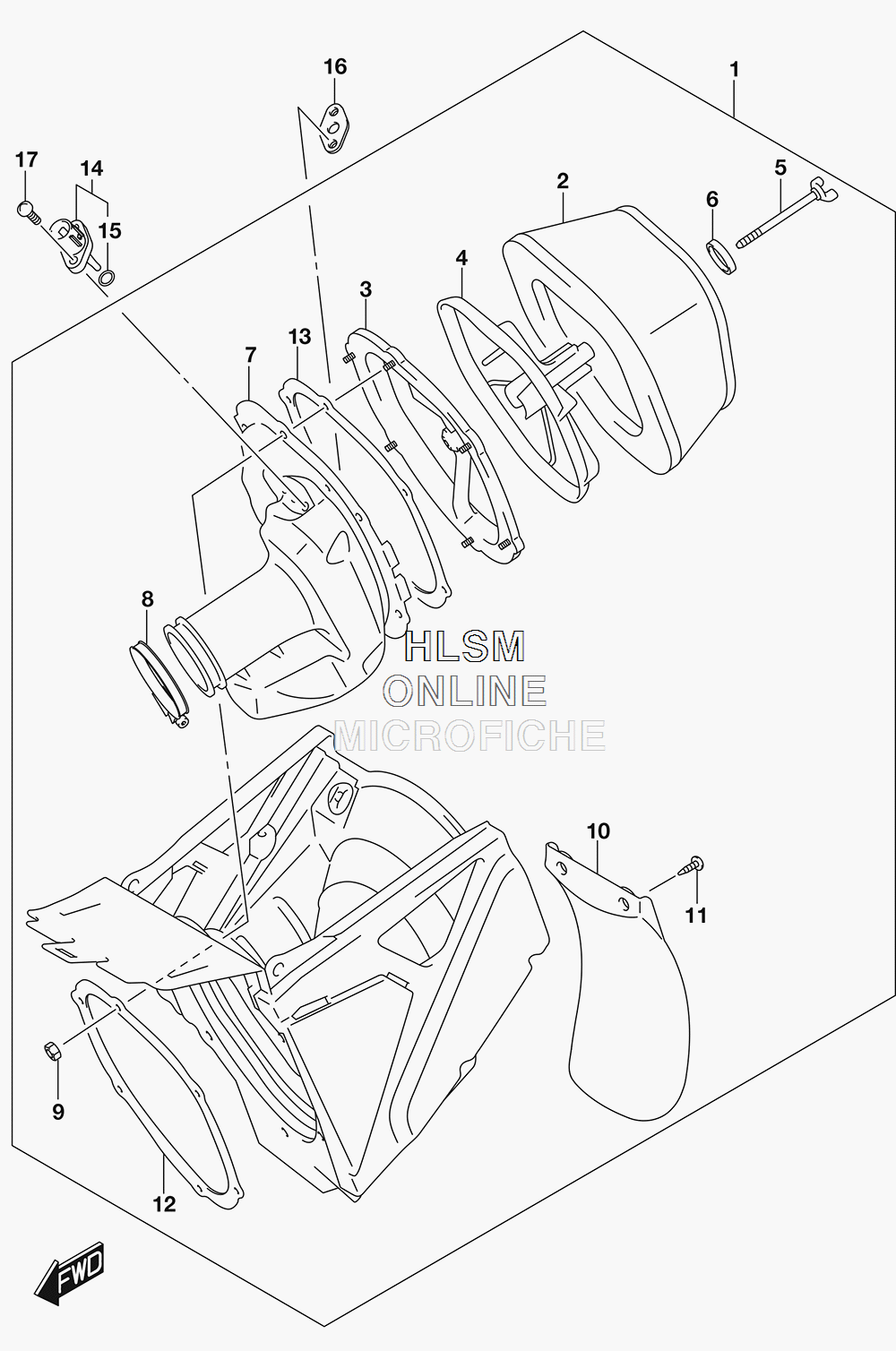

AIR CLEANER для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
113700-37K00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-37K00 ...FILTER ASSY...FILTER ASSY
-
313790-37K00 ...BASE, FILTER...BASE, FILTER
-
413791-37K00 ...HOLDER, FILTER...HOLDER, FILTER
-
513831-37F20 ...BOLT, WING...BOLT, WING
-
613792-13A01 ...WASHER...WASHER
-
713881-37K00 ...TUBE, OUTLET...TUBE, OUTLET
-
813826-37K00 ...CLAMP...CLAMP
-
908319-2105B ...NUT...NUT
-
1013738-36E10 ...MUD GUARD...MUD GUARD
-
1113831-35F00 ...SCREW...SCREW
-
1213795-37K00 ...PLATE...PLATE
-
1313796-37K00 ...GASKET...GASKET
-
1413650-14G10 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
1513655-14G10 ...O RING...O RING
-
1613652-28H00 BRACKET, SENSORBRACKET, SENSOR
-
1702112-0516A SCREWSCREW
