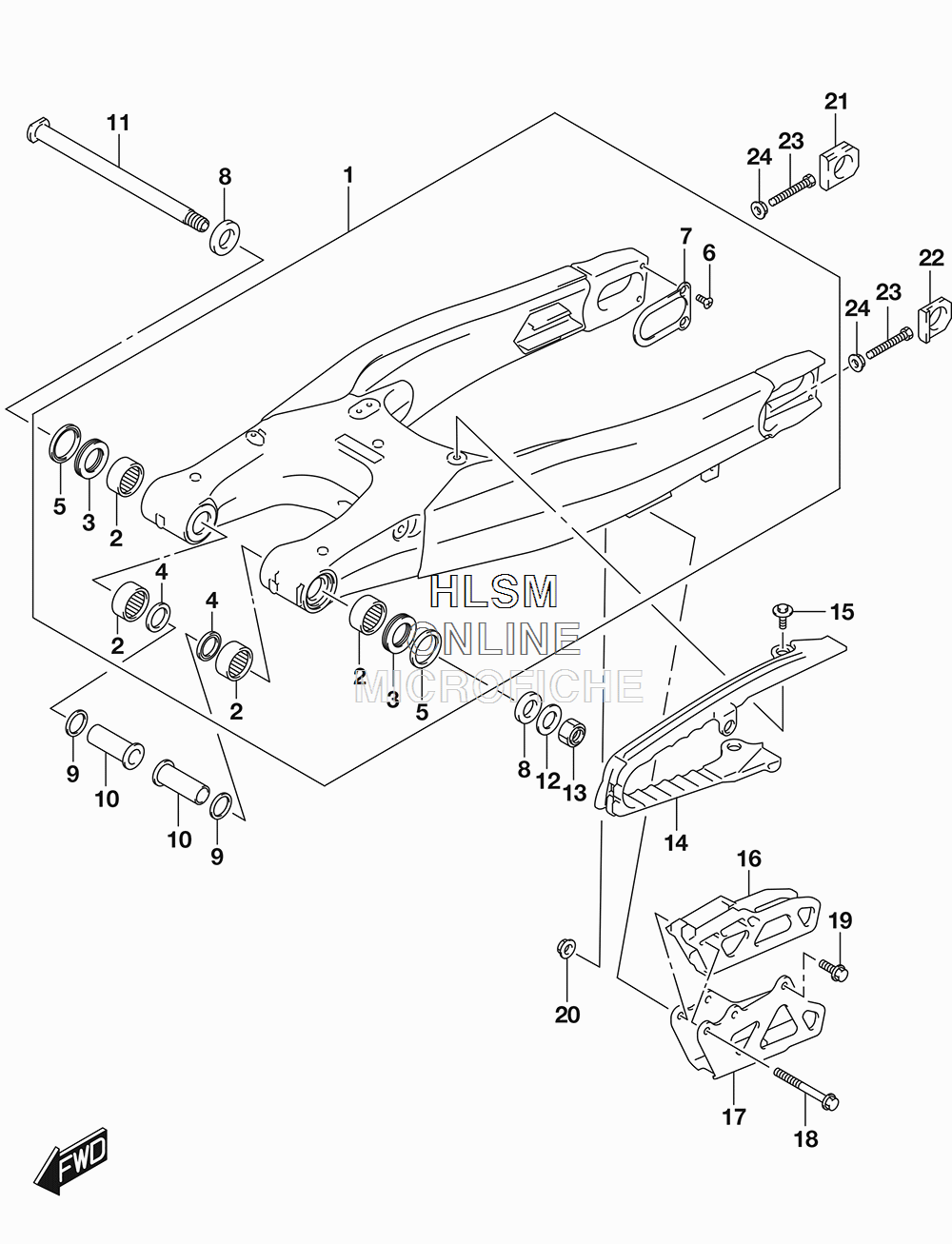

REAR SWINGARM для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
161000-37K00 SWINGINGARM ASSY, REARSWINGINGARM ASSY, REAR
-
209263-22070 ...BEARING (22X29X15)...BEARING (22X29X15)
-
309263-22064 ...BEARING (22X35X2)...BEARING (22X35X2)
-
409285-22001 ...OIL SEAL (22X29X4)...OIL SEAL (22X29X4)
-
561262-36E00 ...SEAL, PIVOT OUTER...SEAL, PIVOT OUTER
-
609120-05005 ...SCREW...SCREW
-
761128-28H30 ...PLATE, SWGARM REAR...PLATE, SWGARM REAR
-
861251-36E01 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
908211-22365 WASHERWASHER
-
1061252-37F01 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
1161211-35G00 SHAFT, REAR SWINGINGARM PIVOTSHAFT, REAR SWINGINGARM PIVOT
-
1208322-0116B WASHERWASHER
-
1309159-16007 NUTNUT
-
1461273-37K00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1509111-06251 BOLT (6X16)BOLT (6X16)
-
1661341-37K00 GUIDE, CHAINGUIDE, CHAIN
-
1761342-37K00 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
1801547-0645A BOLTBOLT
-
1901547-0612A BOLTBOLT
-
2008316-1006B NUTNUT
-
2161445-28H11 WASHER, CHAIN ADJUSTER (RH)WASHER, CHAIN ADJUSTER (RH)
-
2261446-35G01 WASHER, CHAIN ADJUSTER (LH)WASHER, CHAIN ADJUSTER (LH)
-
2309100-08287 BOLT (8X50)BOLT (8X50)
-
2409159-08034 NUTNUT
