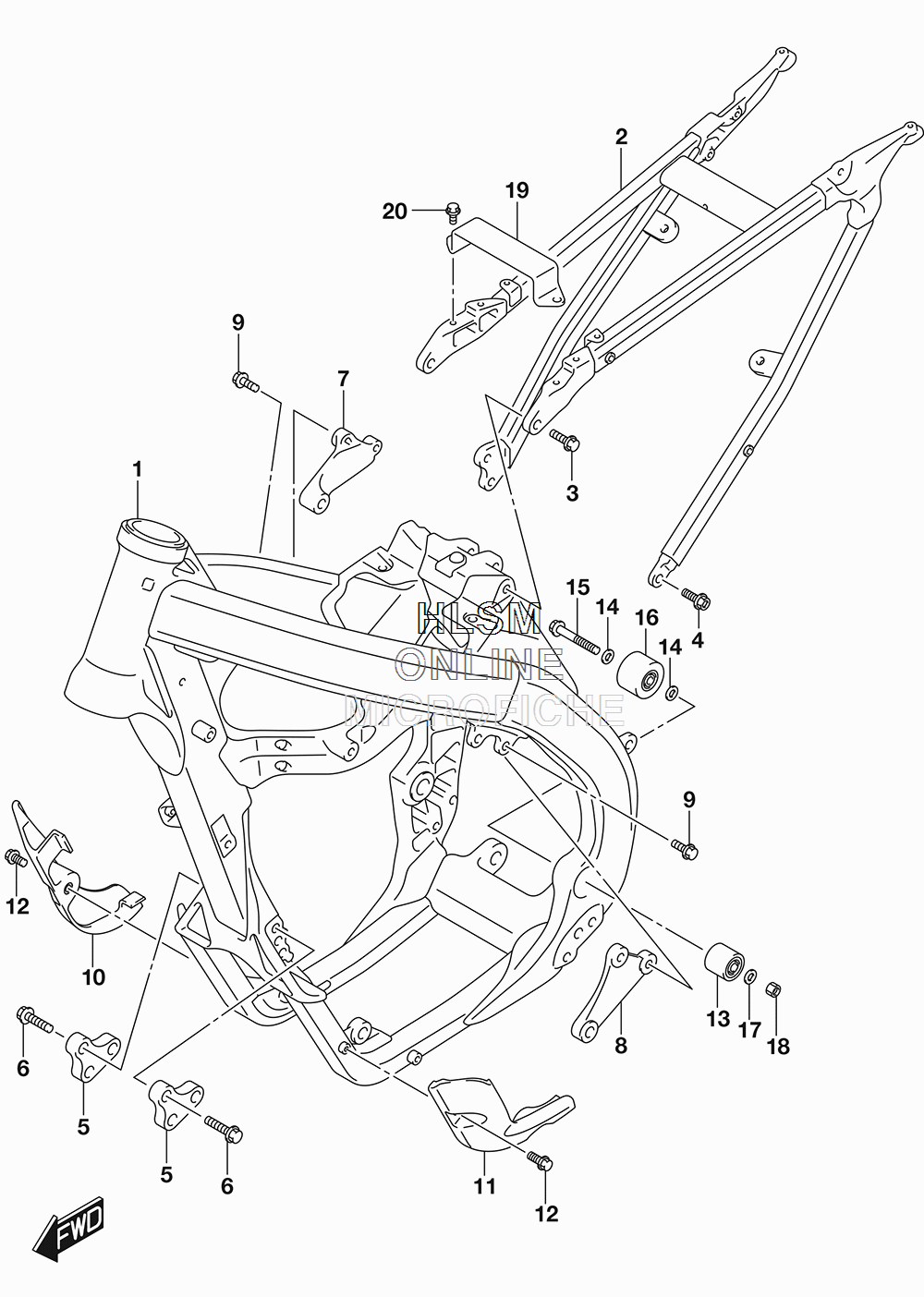

FRAME для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
141100-37K00 FRAMEFRAME
-
241200-37K00 RAIL, SEATRAIL, SEAT
-
309103-08288 BOLT (8X25)BOLT (8X25)
-
409103-08505 BOLT (8X20)BOLT (8X20)
-
541991-37K00 BRACKET, ENGINE MOUNT FRONTBRACKET, ENGINE MOUNT FRONT
-
609103-10342 BOLT (10X32)BOLT (10X32)
-
741931-37K00 BRACKET, ENGINE MOUNT UPPER RBRACKET, ENGINE MOUNT UPPER R
-
841941-37K00 BRACKET, ENGINE MOUNT UPPER LBRACKET, ENGINE MOUNT UPPER L
-
909103-08505 BOLT (8X20)BOLT (8X20)
-
1042520-28H10 PROTECTOR, FRONT (RH)PROTECTOR, FRONT (RH)
-
1142530-28H20 PROTECTOR, FRONT (LH)PROTECTOR, FRONT (LH)
-
1209116-06177 BOLT (6X25)BOLT (6X25)
-
1343910-37F00 ROLLER, CHAINROLLER, CHAIN
-
1409181-08167 SHIM (8X16X1)SHIM (8X16X1)
-
1509103-08207 BOLT (8X45)BOLT (8X45)
-
1643910-37F00 ROLLER, CHAINROLLER, CHAIN
-
1709181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
1808319-2108A NUTNUT
-
1941542-37K00 BRIDGE, SEAT RAIL UPPERBRIDGE, SEAT RAIL UPPER
-
2001547-0612A BOLTBOLT
