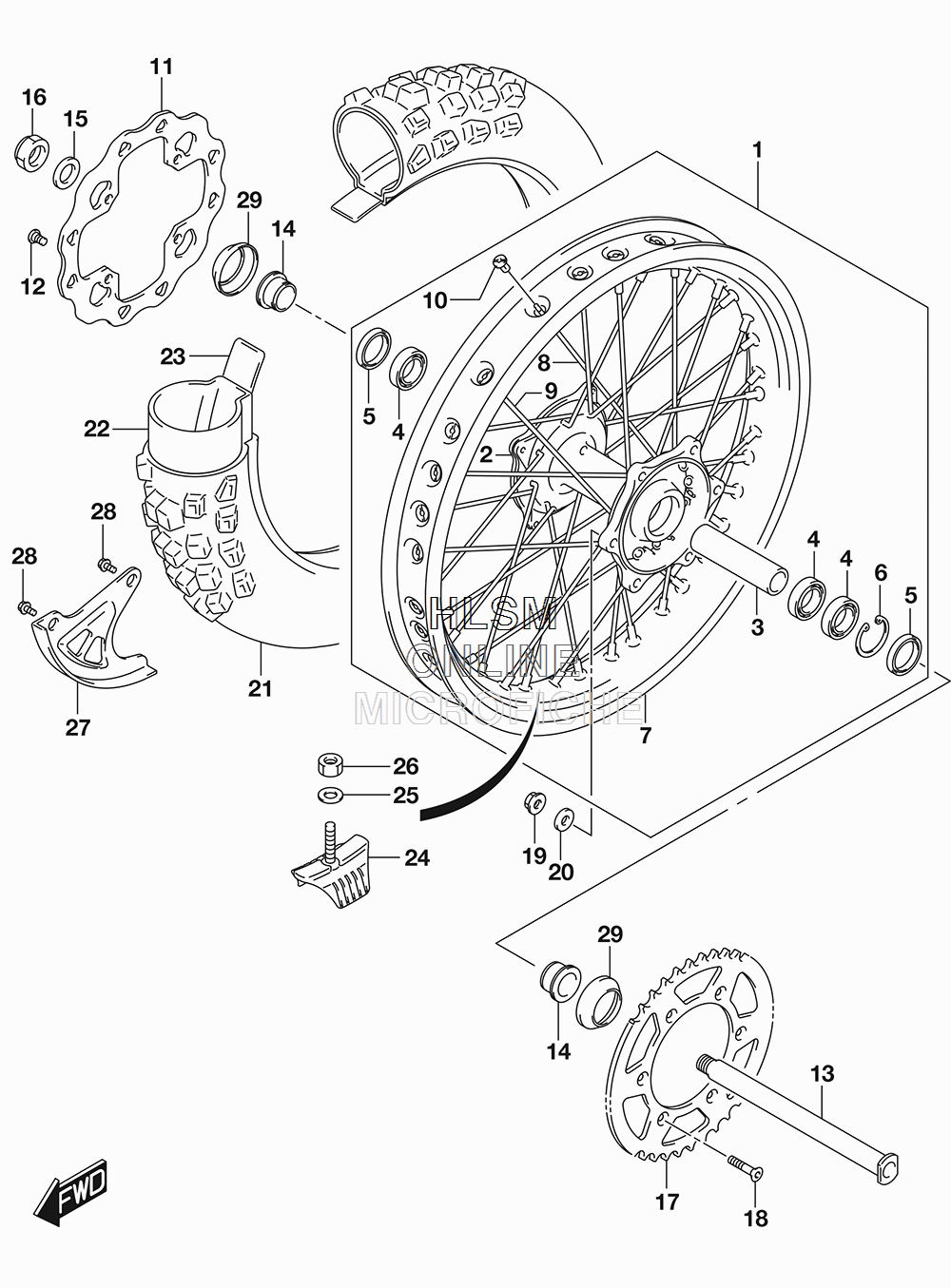

WHEEL - REAR для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
164100-37K00 WHEEL ASSY, REARWHEEL ASSY, REAR
-
264111-35G20 ...HUB, REAR...HUB, REAR
-
364731-35G01 ...SPACER, REAR HUB BEARING...SPACER, REAR HUB BEARING
-
409262-25139 ...BEARING (25X42X9)...BEARING (25X42X9)
-
509283-32045 ...OIL SEAL (32X43X7)...OIL SEAL (32X43X7)
-
608331-41429 ...CIRCLIP...CIRCLIP
-
765311-37K00 ...RIM, REAR WHEEL (19X2.15)...RIM, REAR WHEEL (19X2.15)
-
865321-35G10 ...SPOKE, REAR WHEEL INNER...SPOKE, REAR WHEEL INNER
-
965322-35G10 ...SPOKE, REAR WHEEL OUTER...SPOKE, REAR WHEEL OUTER
-
1065325-35G10 ...NIPPLE, REAR WHEEL...NIPPLE, REAR WHEEL
-
1169211-28H10 DISC, REAR BRAKEDISC, REAR BRAKE
-
1209139-08022 SCREW (8X15)SCREW (8X15)
-
1364711-35G10 AXLE, REARAXLE, REAR
-
1464751-28H10 SPACERSPACER
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1664721-13K00 NUT, REAR AXLENUT, REAR AXLE
-
17-164511-36E00 SPROCKET, REAR (NT:50)SPROCKET, REAR (NT:50)
-
17-264511-37E00 SPROCKET, REAR (NT:48) (OPT)SPROCKET, REAR (NT:48) (OPT)
-
17-364511-40261 SPROCKET, REAR (NT:51) (OPT)SPROCKET, REAR (NT:51) (OPT)
-
17-464511-28E00 SPROCKET, REAR (NT:49) (OPT)SPROCKET, REAR (NT:49) (OPT)
-
1809120-08017 BOLT (8X28)BOLT (8X28)
-
1909159-08133 NUTNUT
-
2009160-08082 WASHER (8.5X16X1.2)WASHER (8.5X16X1.2)
-
2165110-37K00 TIRE, REAR (110/90-19 62M) (X30R BRIDGESTONE)TIRE, REAR (110/90-19 62M) (X30R BRIDGESTONE)
-
2265200-35G01 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2365261-35G01 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2465270-29F00 STOPPER, BEAD (2.15)STOPPER, BEAD (2.15)
-
2508322-0108A WASHERWASHER
-
2608310-0008A NUTNUT
-
2769231-37F20 COVER, REAR DISCCOVER, REAR DISC
-
2809116-06197 BOLT (6X12)BOLT (6X12)
-
2964752-28H00 COVER, REAR AXLE SPACERCOVER, REAR AXLE SPACER
