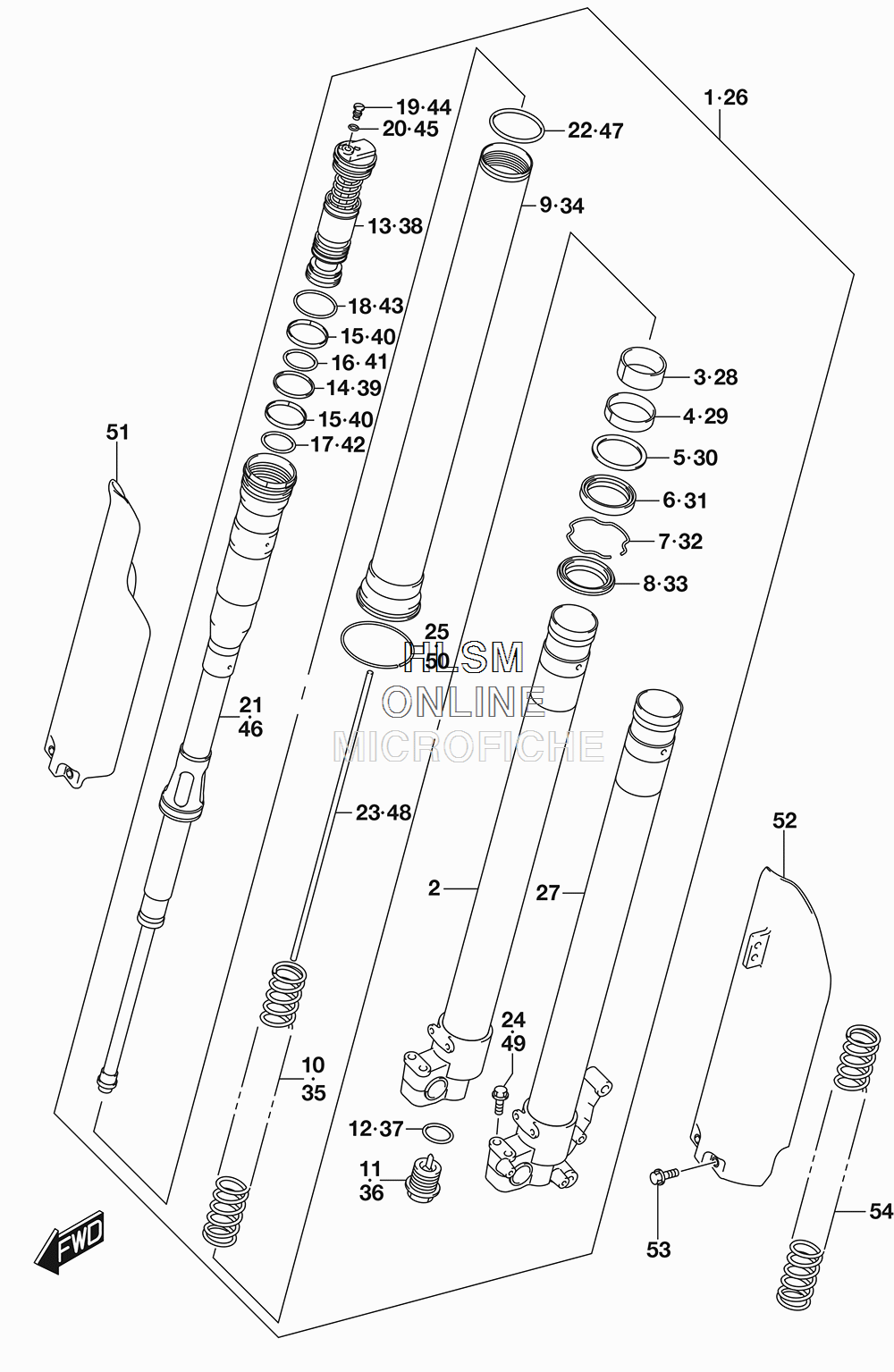

SUSPENSION - FRONT FORK DAMPER для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
151103-37K00 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-37K00 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351127-28H40 ......BUSH, SLIDE......BUSH, SLIDE
-
451167-28H40 ......BUSH, GUIDE......BUSH, GUIDE
-
551158-36E00 ......SPACER, SEAL......SPACER, SEAL
-
651153-36E00 ......SEAL, OIL......SEAL, OIL
-
751156-36E00 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
851173-37K00 ......SEAL, DUST......SEAL, DUST
-
951140-37K00 ...TUBE, OUTER...TUBE, OUTER
-
1051171-37K00 ...SPRING, FRONT (STD K=5.0)...SPRING, FRONT (STD K=5.0)
-
1151170-37K00 ...BOLT, CENTER...BOLT, CENTER
-
1251122-28H40 ......O RING......O RING
-
1351350-37K00 ...BOLT, FORK...BOLT, FORK
-
1451124-28H40 ......PISTON RING......PISTON RING
-
1551123-28H40 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
1651174-28H40 ......O RING......O RING
-
1751175-28H40 ......O RING......O RING
-
1851187-47H00 ......O RING......O RING
-
1951357-36F20 ......BOLT, PLUG......BOLT, PLUG
-
2051358-28E30 .......O RING.......O RING
-
2151190-37K00 ...DAMPER...DAMPER
-
2251118-28H30 ......O RING......O RING
-
2351191-37K00 ...ROD, PUSH...ROD, PUSH
-
2451328-37F80 ...BOLT...BOLT
-
2551211-28H40 ...RING STOPPER...RING STOPPER
-
2651104-37K00 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2751120-37K00 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2851127-28H40 ......BUSH, SLIDE......BUSH, SLIDE
-
2951167-28H40 ......BUSH, GUIDE......BUSH, GUIDE
-
3051158-36E00 ......SPACER, SEAL......SPACER, SEAL
-
3151153-36E00 ......SEAL, OIL......SEAL, OIL
-
3251156-36E00 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
3351173-37K00 ......SEAL, DUST......SEAL, DUST
-
3451140-37K00 ...TUBE, OUTER...TUBE, OUTER
-
3551171-37K00 ...SPRING, FRONT (STD K=5.0N/MM)...SPRING, FRONT (STD K=5.0N/MM)
-
3651170-37K00 ...BOLT, CENTER...BOLT, CENTER
-
3751122-28H40 ......O RING......O RING
-
3851350-37K00 ...BOLT, FORK...BOLT, FORK
-
3951124-28H40 ......PISTON RING......PISTON RING
-
4051123-28H40 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
4151174-28H40 ......O RING......O RING
-
4251175-28H40 ......O RING......O RING
-
4351187-47H00 ......O RING......O RING
-
4451357-36F20 ......BOLT, PLUG......BOLT, PLUG
-
4551358-28E30 .......O RING.......O RING
-
4651190-37K00 ...DAMPER...DAMPER
-
4751118-28H30 ......O RING......O RING
-
4851191-37K00 ...ROD, PUSH...ROD, PUSH
-
4951328-37F80 ...BOLT...BOLT
-
5051211-28H40 ...RING STOPPER...RING STOPPER
-
5151501-28H60 PROTECTOR, (RH)PROTECTOR, (RH)
-
5251510-28H70 PROTECTOR, (LH)PROTECTOR, (LH)
-
5309111-06098 BOLT (6X10)BOLT (6X10)
-
54-151171-37K10 SPRING, FRONT (SOFT K=4.8N/MM) (OPT)SPRING, FRONT (SOFT K=4.8N/MM) (OPT)
-
54-251171-37K20 SPRING, FRONTSPRING, FRONT
