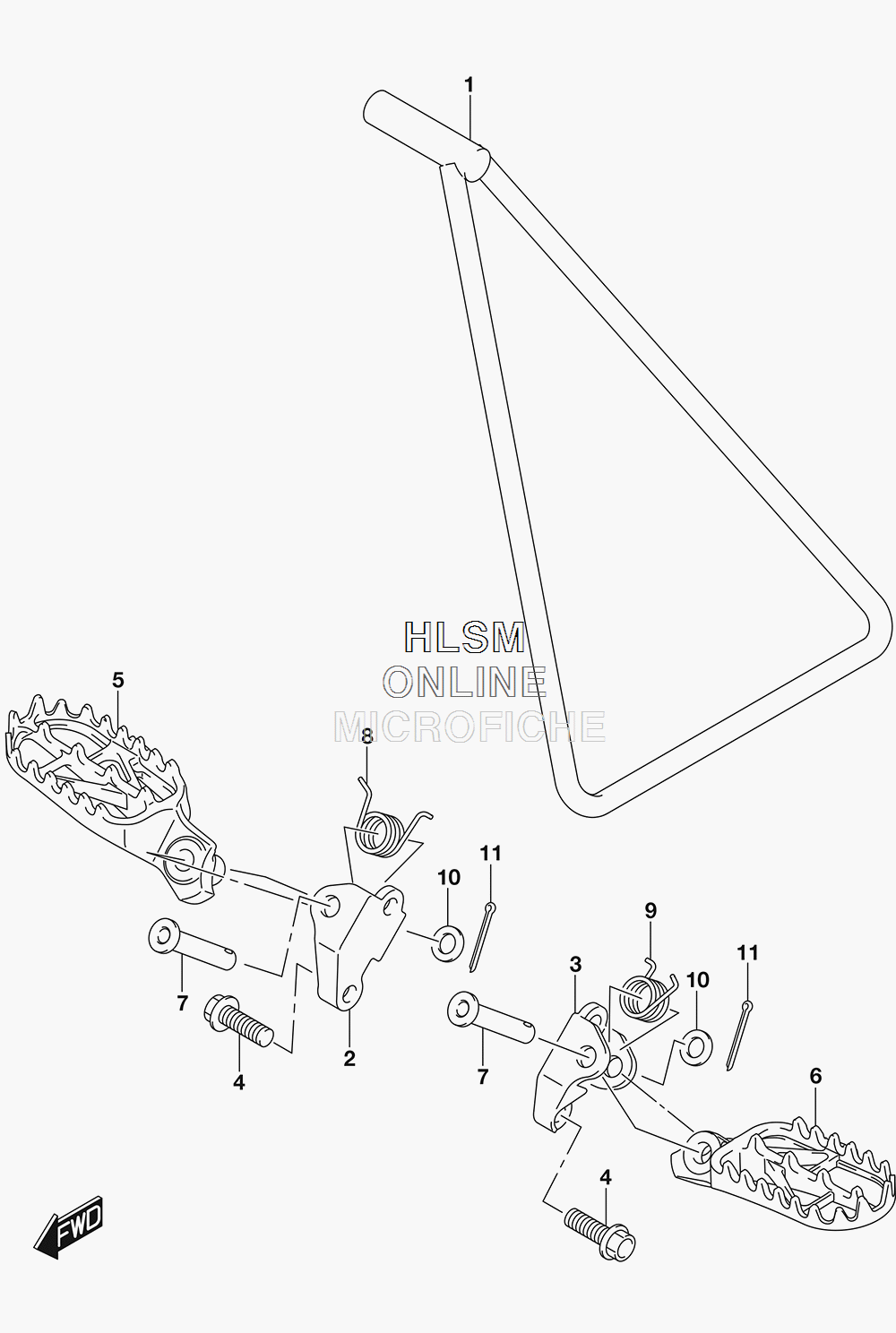

FOOTREST для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
142310-28H10 STANDSTAND
-
241855-28H10 BRACKET, FOOTREST (RH)BRACKET, FOOTREST (RH)
-
341865-28H10 BRACKET, FOOTREST (LH)BRACKET, FOOTREST (LH)
-
409103-10415 BOLT (10X25)BOLT (10X25)
-
543551-28H30 FOOTREST, (RH)FOOTREST, (RH)
-
643561-28H10 FOOTREST, (LH)FOOTREST, (LH)
-
709200-10023 PIN (10X41.5)PIN (10X41.5)
-
843581-28H10 SPRING, FOOTREST (RH)SPRING, FOOTREST (RH)
-
943591-28H10 SPRING, FOOTREST (LH)SPRING, FOOTREST (LH)
-
1009160-10121 WASHER (10.5X18X1)WASHER (10.5X18X1)
-
1104111-2520A COTTER PINCOTTER PIN
