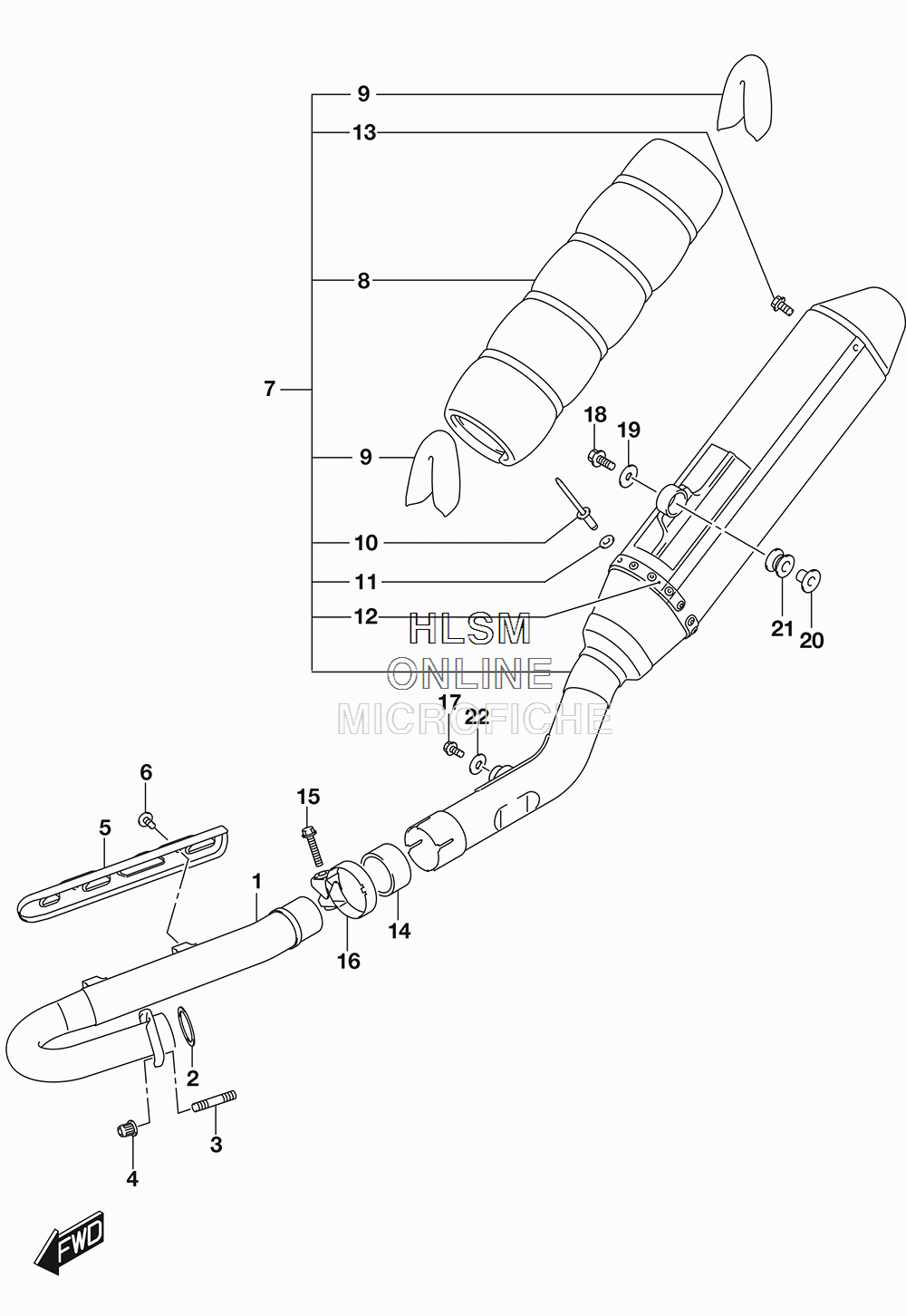

MUFFLER для Suzuki RM-Z450L8 - 2018 года выпуска
-
№АртикулНазвание
-
114150-28H60 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-35G00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
301421-0816A STUD BOLTSTUD BOLT
-
409159-08144 NUTNUT
-
514186-28H20 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06178 BOLT (6X8)BOLT (6X8)
-
714310-37K10 BODY, MUFFLERBODY, MUFFLER
-
814351-28H60 ...SILENCER, MUFFLER...SILENCER, MUFFLER
-
914355-49H00 ...GLASS WOOL, MUFFLER TAIL...GLASS WOOL, MUFFLER TAIL
-
1014454-28H00 ...RIVET, MUFFLER...RIVET, MUFFLER
-
1114456-28H00 ...WASHER...WASHER
-
1214781-28H10 ...BAND, MUFFLER...BAND, MUFFLER
-
1301547-0612A ...BOLT...BOLT
-
1414771-42F10 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
1509103-08536 BOLT (8X35)BOLT (8X35)
-
1614459-28H00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1709103-08426 BOLT (8X20)BOLT (8X20)
-
1809103-08536 BOLT (8X35)BOLT (8X35)
-
1909160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
2009180-08157 SPACER (8.6X12X18.5)SPACER (8.6X12X18.5)
-
2109320-12043 CUSHIONCUSHION
-
2209160-08103 WASHER (8X20X1)WASHER (8X20X1)
