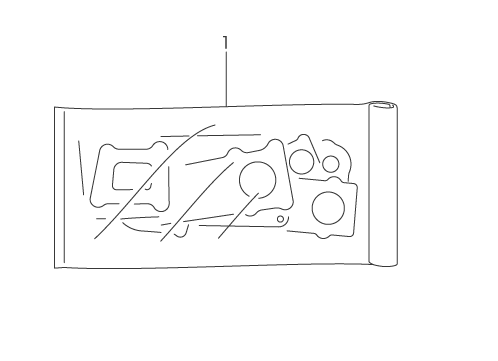

GASKET SET для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
111401-13821 GASKET SET (OPT)GASKET SET (OPT)
-
211141-38201 ...GASKET, CYLINDER HEAD...GASKET, CYLINDER HEAD
-
311241-38301 ...GASKET, CYLINDER...GASKET, CYLINDER
-
411482-38311 ...GASKET, CLUTCH COVER...GASKET, CLUTCH COVER
-
511483-37D00 ...GASKET, MAGNETO COVER...GASKET, MAGNETO COVER
-
612837-24A10 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
714181-37D00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
809280-09005 ...O-RING(D:1.9, ID:8.6)...O-RING(D:1.9, ID:8.6)
-
909280-15007 ...O-RING(D:2.4, ID:15.8)...O-RING(D:2.4, ID:15.8)
-
1009280-21008 ...O-RING(D:2.5, ID:21.0)...O-RING(D:2.5, ID:21.0)
-
1109280-26005 ...O-RING(D:2.4, ID:26.2)...O-RING(D:2.4, ID:26.2)
-
1209280-40010 ...O-RING(D:2.4, ID:39.7)...O-RING(D:2.4, ID:39.7)
-
1309280-55003 ...O-RING...O-RING
-
1409280-72001 ...O-RING(D:2.4,ID:73.0)...O-RING(D:2.4,ID:73.0)
-
1509280-82001 ...O-RING(D:2.4,ID:82.0...O-RING(D:2.4,ID:82.0
