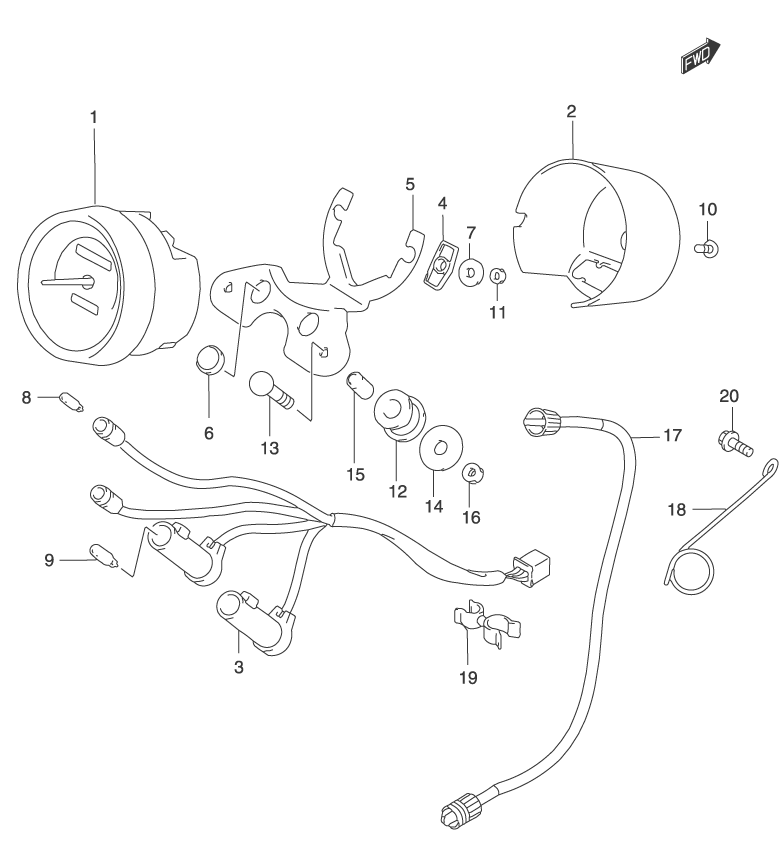

SPEEDOMETER для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-134110-13F10 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
1-234110-13F00 SPEEDOMETER (KILO) (CANADA)SPEEDOMETER (KILO) (CANADA)
-
234111-25D00 COVER, UNDERCOVER, UNDER
-
334170-25D10 SOCKET ASSY.SOCKET ASSY.
-
434191-25D00 CUSHION, DAMPERCUSHION, DAMPER
-
534950-25D00 BRACKET, METERBRACKET, METER
-
636321-25D00 LENS, NEUTRAL (GREEN)LENS, NEUTRAL (GREEN)
-
709160-05013 WASHER (5.2X16X1)WASHER (5.2X16X1)
-
809471-12028 BULB (12V,3.4W)BULB (12V,3.4W)
-
909471-12108 BULB (12V,1.7W)BULB (12V,1.7W)
-
1003541-14123 SCREWSCREW
-
1108310-00057 NUTNUT
-
1234956-31001 CUSHION METER BRACKETCUSHION METER BRACKET
-
1309107-06003 BOLT (6X30)BOLT (6X30)
-
1409160-06136 WASHER (6.5X28X1.6)WASHER (6.5X28X1.6)
-
1509180-06294 SPACER (6.5X10X15.7)SPACER (6.5X10X15.7)
-
1608310-00063 NUTNUT
-
1734910-12F00 CABLE, SPEEDOMETER ASSY.CABLE, SPEEDOMETER ASSY.
-
1834938-37000 GUIDE, SPEEDOMETER CABLEGUIDE, SPEEDOMETER CABLE
-
1909408-00119 CLAMP, CABLE & BRAKE HOSECLAMP, CABLE & BRAKE HOSE
-
2001550-06123 BOLTBOLT
