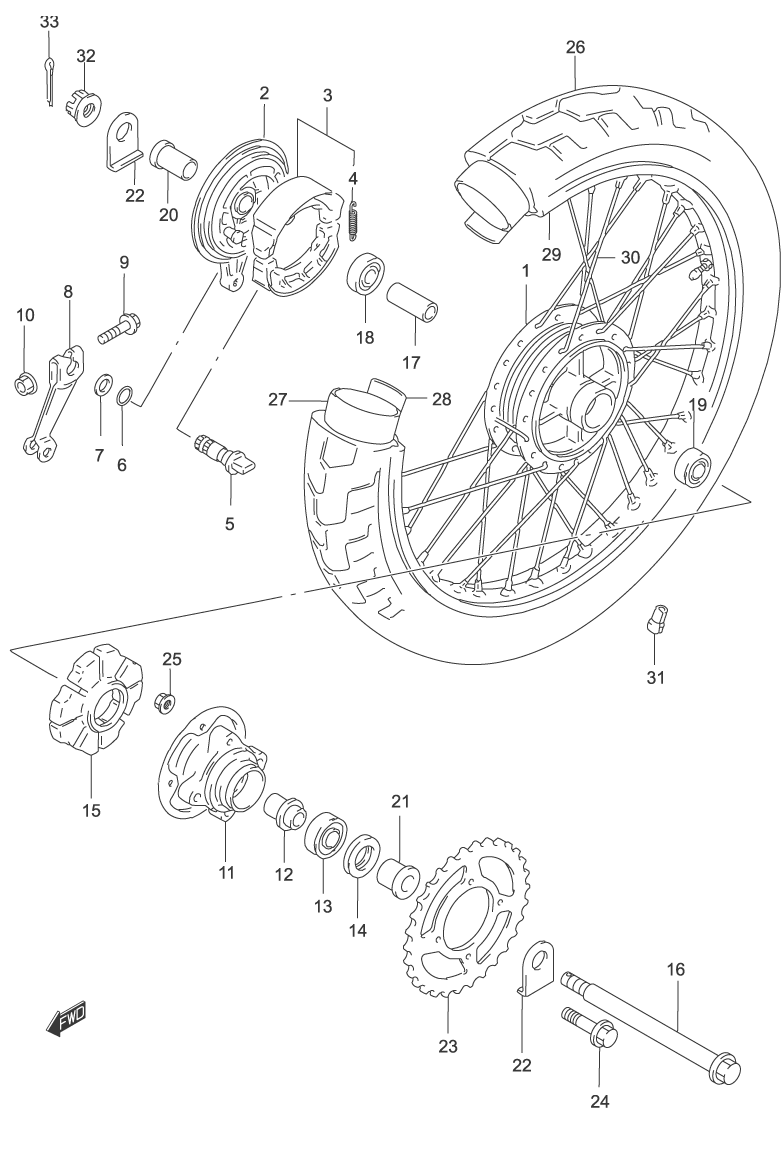

WHEEL - REAR для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
164110-07005 HUB, REAR WHEELHUB, REAR WHEEL
-
264210-39115 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
354041-07E00 SHOE SET, BRAKESHOE SET, BRAKE
-
455421-20E00 ...SPRING...SPRING
-
554441-29305 CAM, BRAKECAM, BRAKE
-
609280-14003 O-RINGO-RING
-
709160-14055 WASHERWASHER
-
864451-30501 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
901550-06407 BOLTBOLT
-
1008316-10067 NUTNUT
-
1164610-38300 DRUM, SPROCKET MOUNTINGDRUM, SPROCKET MOUNTING
-
1264733-38300 RETAINER, MOUNTING DRUMRETAINER, MOUNTING DRUM
-
1309262-20069 BEARING, DRUM (20X47X14)BEARING, DRUM (20X47X14)
-
1409285-28001 OIL SEAL (28X47X7)OIL SEAL (28X47X7)
-
1564651-07001 SHOCK ABSORBER, HUBSHOCK ABSORBER, HUB
-
1664711-12F11 AXLE, REARAXLE, REAR
-
1709180-15011 SPACER, BEARING (15.3X21.7X63SPACER, BEARING (15.3X21.7X63
-
1808143-62027 BEARING, WHEEL RIGHTBEARING, WHEEL RIGHT
-
1908143-63027 BEARING, WHEEL LEFTBEARING, WHEEL LEFT
-
2064741-12F00-X00 SPACER, AXLE RIGHTSPACER, AXLE RIGHT
-
2164751-12F00-X00 SPACER, AXLE LEFTSPACER, AXLE LEFT
-
2264712-08301 WASHER, GUIDEWASHER, GUIDE
-
2364511-13FA0 SPROCKET, REAR (NT:41)SPROCKET, REAR (NT:41)
-
2409103-10044 BOLT (10X40)BOLT (10X40)
-
2508319-31108 NUTNUT
-
2665100-12FA0 TIRE, REAR (130/90-15)TIRE, REAR (130/90-15)
-
2765200-12FA0 TUBE, WHEEL INNER ASSY.TUBE, WHEEL INNER ASSY.
-
2865261-12FA0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2965311-12F00 RIM, REAR WHEEL (15XMT3.00)RIM, REAR WHEEL (15XMT3.00)
-
3065320-12F00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
31-155411-11000 BALANCER (20G)BALANCER (20G)
-
31-255412-11000 BALANCER (30G)BALANCER (30G)
-
3209159-14018 NUTNUT
-
3304111-30258 PINPIN
