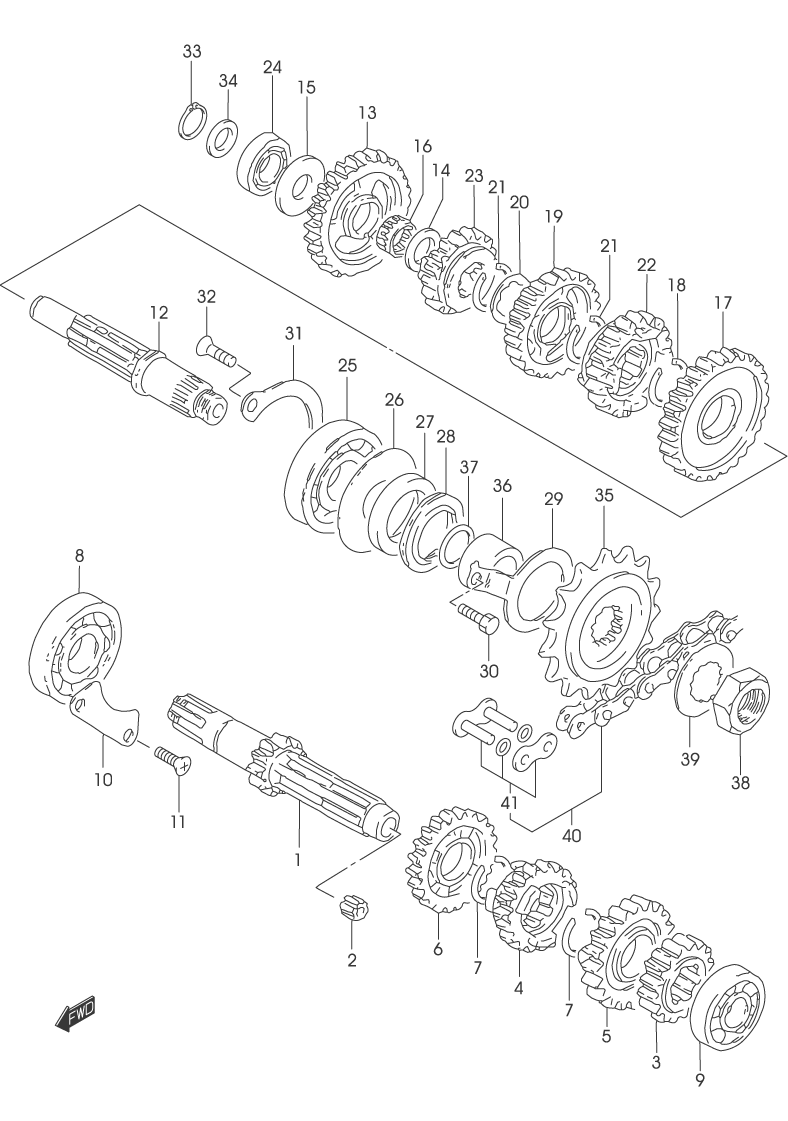

TRANSMISSION для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
124120-38202 SHAFT, COUNTER (NT:11)SHAFT, COUNTER (NT:11)
-
224125-38201 ...BUSH...BUSH
-
324221-32412 GEAR, 2ND DRIVE (NT:16)GEAR, 2ND DRIVE (NT:16)
-
424231-38201 GEAR, 3RD DRIVE (NT:19)GEAR, 3RD DRIVE (NT:19)
-
524241-32401 GEAR, 4TH DRIVE (NT:20)GEAR, 4TH DRIVE (NT:20)
-
624251-32420 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
709380-22006 CIRCLIPCIRCLIP
-
809262-22014 BEARING, RIGHT (22X56X16)BEARING, RIGHT (22X56X16)
-
909262-17046 BEARING, LEFT (17X40X12)BEARING, LEFT (17X40X12)
-
1024741-38200 RETAINER, BEARINGRETAINER, BEARING
-
1102112-06123 SCREWSCREW
-
1224130-38301 SHAFT, DRIVESHAFT, DRIVE
-
1324311-32401 GEAR, 1ST DRIVEN (NT:29)GEAR, 1ST DRIVEN (NT:29)
-
1409181-17195 WASHER (17X28X1.0)WASHER (17X28X1.0)
-
1508211-17363 THRUST WASHERTHRUST WASHER
-
1609263-17004 BEARING (17X21X9.8)BEARING (17X21X9.8)
-
1724320-32411 GEAR, 2ND DRIVEN (NT:27)GEAR, 2ND DRIVEN (NT:27)
-
1809380-22006 CIRCLIPCIRCLIP
-
1924330-38202 GEAR, 3RD DRIVEN (NT:24)GEAR, 3RD DRIVEN (NT:24)
-
2009167-22011 LOCK WASHERLOCK WASHER
-
2109380-22006 CIRCLIPCIRCLIP
-
2224341-38201 GEAR, 4TH DRIVEN (NT:20)GEAR, 4TH DRIVEN (NT:20)
-
2324351-38201 GEAR, 5TH DRIVEN (NT:18)GEAR, 5TH DRIVEN (NT:18)
-
2409264-17001 BEARING (17X36X12)BEARING (17X36X12)
-
2509262-22013 BEARING (22X56X16)BEARING (22X56X16)
-
2609160-35007 WASHER (35X55X1)WASHER (35X55X1)
-
2709282-30003 OIL SEAL (30X43X5)OIL SEAL (30X43X5)
-
2809283-30041 OIL SEAL (30X43X7)OIL SEAL (30X43X7)
-
2924751-38201 RETAINER, OIL SEALRETAINER, OIL SEAL
-
3001500-06123 BOLTBOLT
-
3124752-32400 RETAINER, BEARINGRETAINER, BEARING
-
3202122-06123 SCREWSCREW
-
3308331-31176 CIRCLIPCIRCLIP
-
3409181-17139 WASHER (17X24X1.0)WASHER (17X24X1.0)
-
3527510-25D00 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
3627531-38300 SPACERSPACER
-
3709280-21008 O-RING(D:2.5,ID:21)O-RING(D:2.5,ID:21)
-
3809140-18008 NUTNUT
-
3909167-22012 LOCK WASHERLOCK WASHER
-
4027600-14A10-110 CHAIN ASSY. (DID520VC5,110LE)CHAIN ASSY. (DID520VC5,110LE)
-
4127620-14A10 ...JOINT SET...JOINT SET
