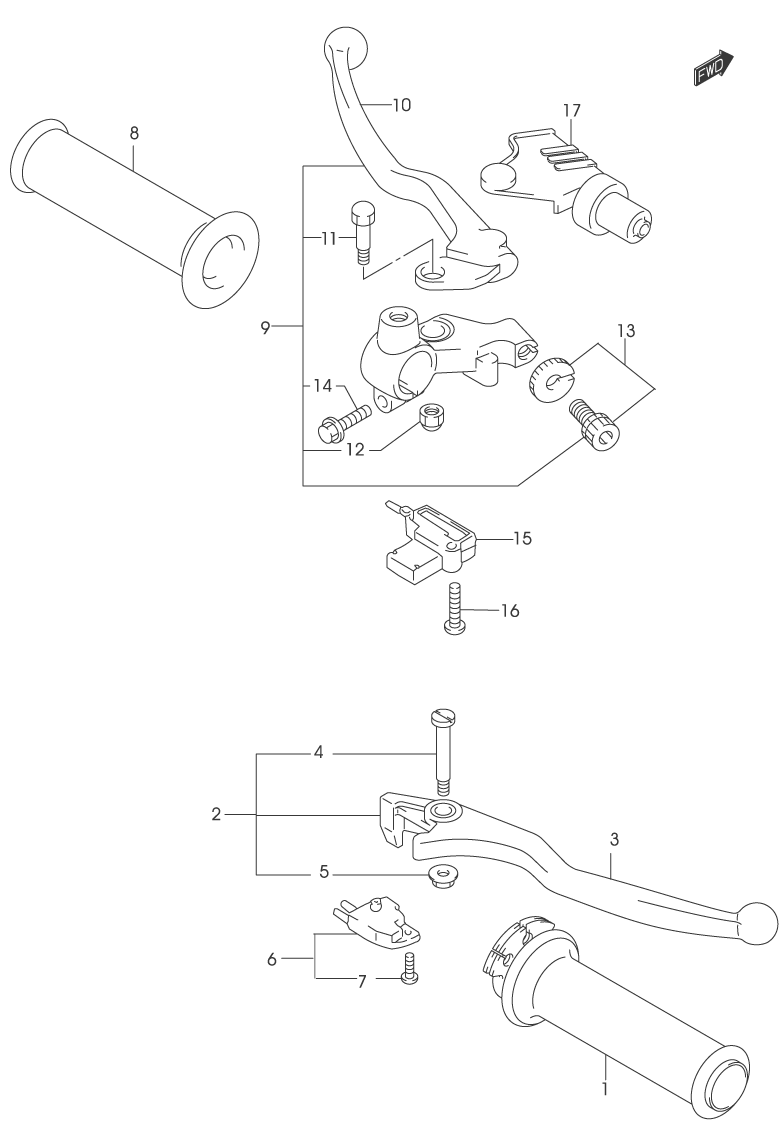

HANDLEBAR - LEVERS для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
157110-12FA0 GRIP, THROTTLEGRIP, THROTTLE
-
257300-26F00 LEVER, BRAKE ASSY.LEVER, BRAKE ASSY.
-
357420-26F00 ...LEVER, BRAKE...LEVER, BRAKE
-
457431-17C00 ...BOLT, LEVER...BOLT, LEVER
-
508316-16065 ...NUT...NUT
-
657460-17C00 SWITCH, STOP BRAKE ASSY.SWITCH, STOP BRAKE ASSY.
-
757465-17C00 ...SCREW...SCREW
-
857211-12FA0 GRIP, LEFTGRIP, LEFT
-
957500-0AE00 LEVER, CLUTCH ASSY.LEVER, CLUTCH ASSY.
-
1057621-0AE00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1157431-0AE00 ...BOLT, LEVER SET...BOLT, LEVER SET
-
1208319-60065 ...NUT...NUT
-
1357041-0AE00 ...ADJUSTER SET, WIRE...ADJUSTER SET, WIRE
-
1401557-06205 ...BOLT...BOLT
-
1557560-05A00 SWITCH, CLUTCHSWITCH, CLUTCH
-
1602122-03203 SCREWSCREW
-
1757661-33E00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
