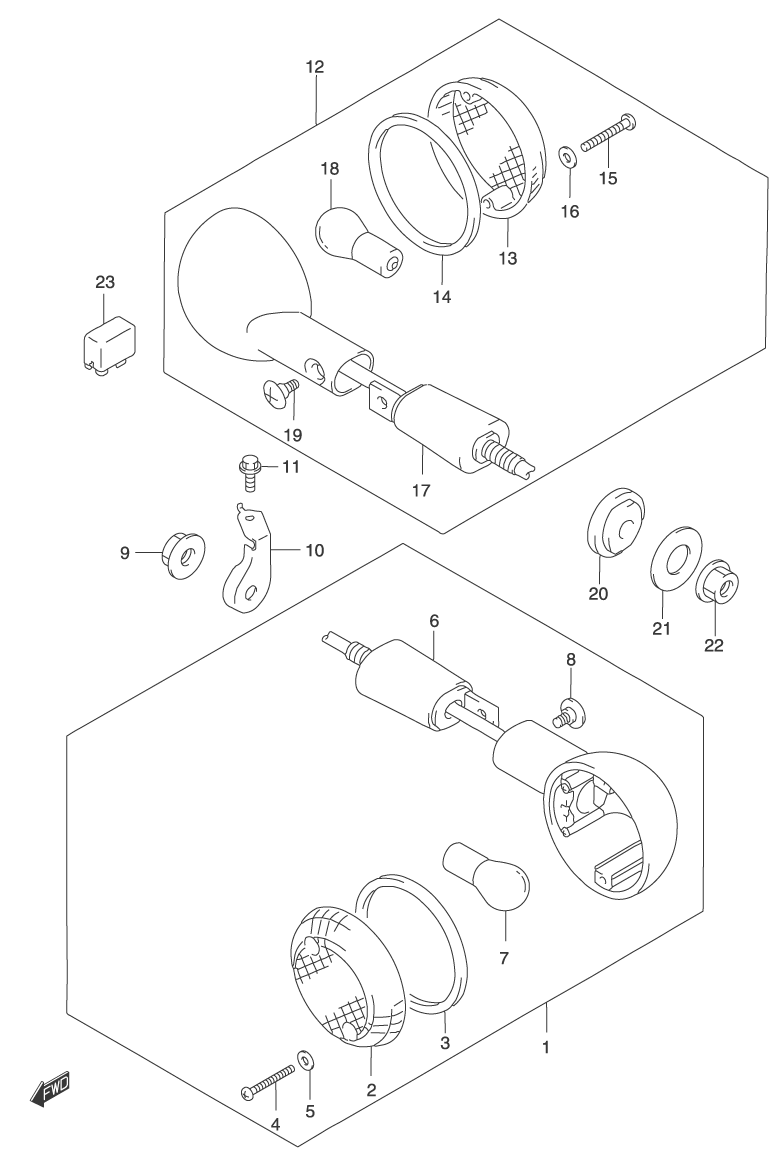

TURN SIGNAL ASSY. для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-135601-33DA0 LAMP, FRONT RIGHT ASSY.LAMP, FRONT RIGHT ASSY.
-
1-235602-33DA0 LAMP, FRONT LEFT ASSY.LAMP, FRONT LEFT ASSY.
-
235612-38A30 ...LENS...LENS
-
335613-38A00 ...GASKET...GASKET
-
403211-04253 ...SCREW...SCREW
-
535627-43010 ...GASKET...GASKET
-
635619-45C10 ...STAY, TURN SIGNAL...STAY, TURN SIGNAL
-
709471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
835623-38A01 ...SCREW...SCREW
-
908316-10103 NUTNUT
-
10-135670-12F00 BRACKET, FR RIGHTBRACKET, FR RIGHT
-
10-235680-12F00 BRACKET, FR LEFTBRACKET, FR LEFT
-
1101550-06123 BOLT, BRACKETBOLT, BRACKET
-
12-135603-33DA0 LAMP, REAR TURN, R ASSY.LAMP, REAR TURN, R ASSY.
-
12-235604-33DA0 LAMP, REAR TURN, L ASSY.LAMP, REAR TURN, L ASSY.
-
1335612-38A01 ...LENS...LENS
-
1435613-38A00 ...GASKET...GASKET
-
1503211-04253 ...SCREW...SCREW
-
1635627-43010 ...GASKET...GASKET
-
1735659-45C10 ...STAY, TURN SIGNAL...STAY, TURN SIGNAL
-
1809471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1935623-38A01 ...SCREW...SCREW
-
2035695-17C00 SPACERSPACER
-
2109160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2208316-10103 NUTNUT
-
2338610-12FA0 RELAY ASSY., TURN SIGNALRELAY ASSY., TURN SIGNAL
