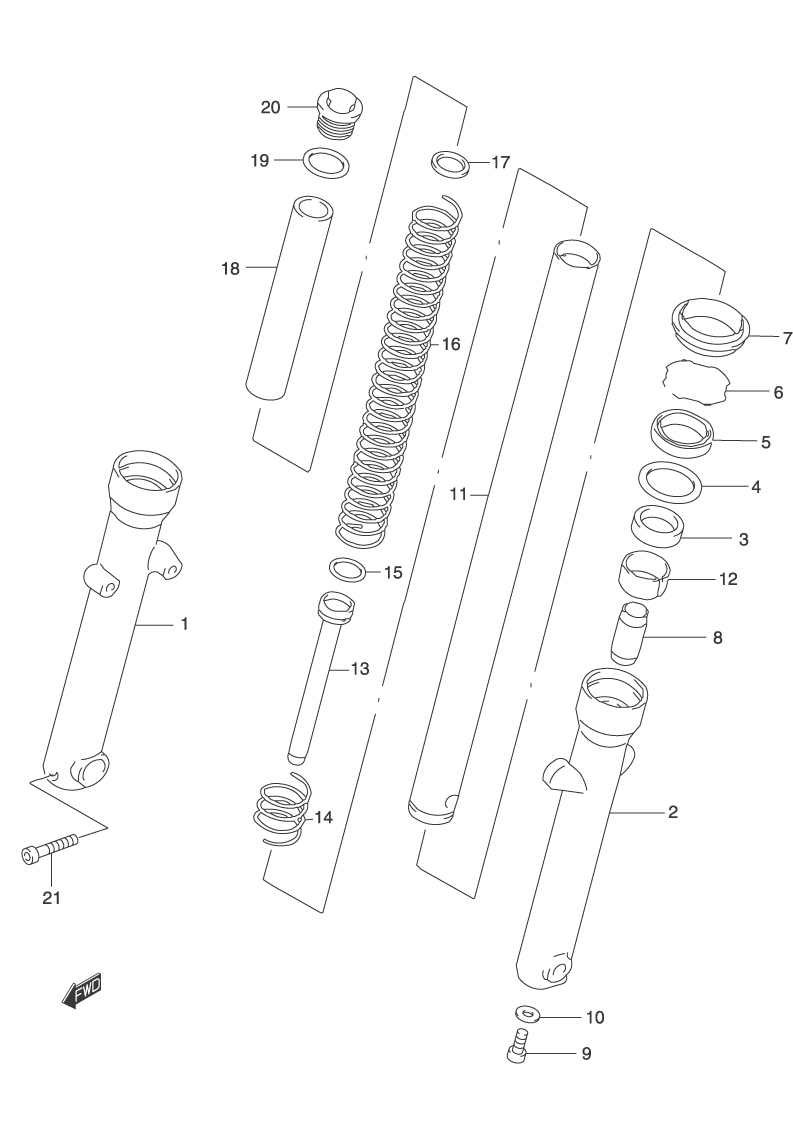

SUSPENSION - FRONT FORK для Suzuki GZ250 K2 - 2002 года выпуска
-
№АртикулНазвание
-
1A51103-12FA0 DAMPER, FRONT FORK RIGHT ASSY.DAMPER, FRONT FORK RIGHT ASSY.
-
1B51104-12FA0 DAMPER, FRONT FORK LEFT ASSY.DAMPER, FRONT FORK LEFT ASSY.
-
151130-12FA0 ...TUBE, OUTER RIGHT...TUBE, OUTER RIGHT
-
251140-12FA0 ...TUBE, OUTER LEFT...TUBE, OUTER LEFT
-
351152-12F00 ...BUSH, GUIDE...BUSH, GUIDE
-
451168-12FA0 ...SPACER, SEAL...SPACER, SEAL
-
551153-25D00 ...SEAL, OIL...SEAL, OIL
-
651556-12FA0 ...RING, STOPPER...RING, STOPPER
-
751173-25D00 ...SEAL, DUST...SEAL, DUST
-
851195-25D00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
951147-42AA0 ...BOLT...BOLT
-
1051148-31030 ...GASKET...GASKET
-
1151110-12FA0 ...TUBE, INNER...TUBE, INNER
-
1251121-12FA0 ...BUSH, SLIDE...BUSH, SLIDE
-
1351146-12FA0 ...PIPE, SEAT...PIPE, SEAT
-
1451177-12FA0 ...SPRING, REBOUND...SPRING, REBOUND
-
1551196-12FA0 ...RING, PISTON...RING, PISTON
-
1651171-12FA0 ...SPRING, FRONT...SPRING, FRONT
-
1751192-12FA0 ...JOINT, SPRING...JOINT, SPRING
-
1851176-25D00 ...COLLAR, SPRING...COLLAR, SPRING
-
1951117-25D00 ...O-RING...O-RING
-
2051189-12FA0 ...BOLT, FORK...BOLT, FORK
-
2151166-12FA0 ...BOLT, RIGHT (8X35)...BOLT, RIGHT (8X35)
