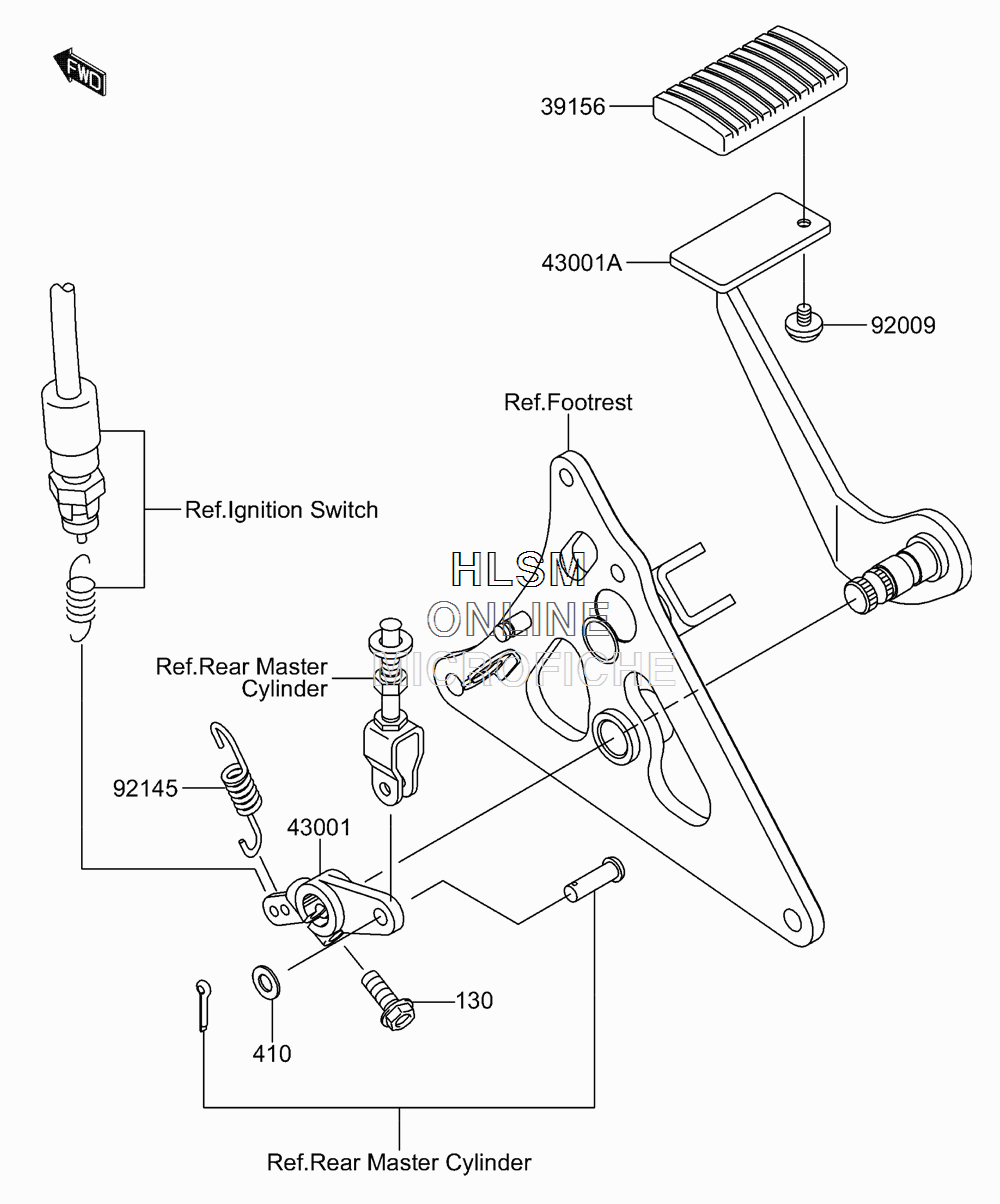

BRAKE PEDAL для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
39156K3915-61677 PAD,BRAKE PEDALPAD,BRAKE PEDAL
-
43001K4300-11431 LEVER-BRAKELEVER-BRAKE
-
43001AK4300-11438 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
92009K9200-91677 SCREW,6X8SCREW,6X8
-
92145K9214-50191 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
-
130KK130-J0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
410KK410-B0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
