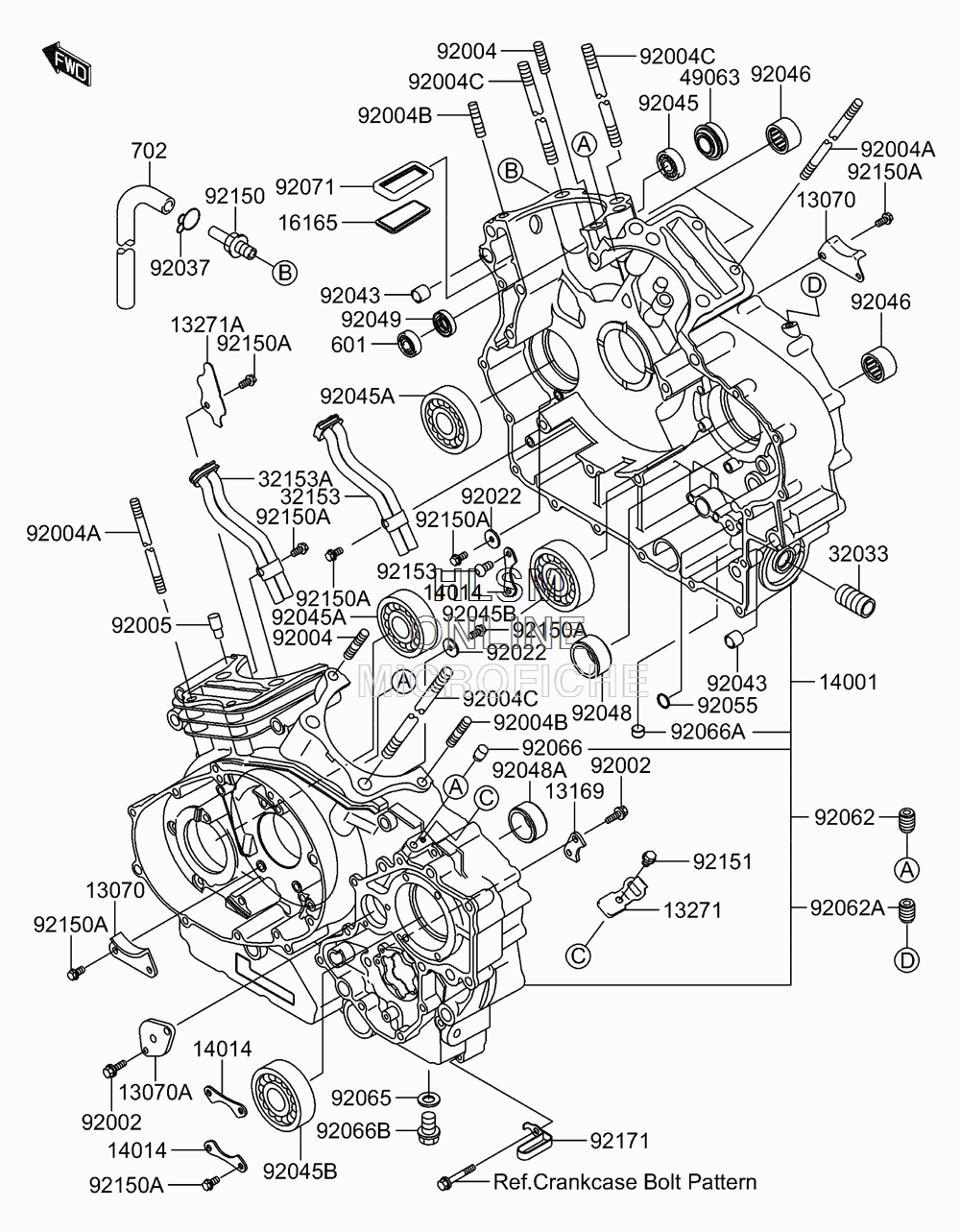

CRANKCASE для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
13070K1307-01168 GUIDE,CAM CHAINGUIDE,CAM CHAIN
-
13070AK1307-01372 GUIDEGUIDE
-
13169KK131-69014 PLATE,GEAR CHANGE DRUMPLATE,GEAR CHANGE DRUM
-
13271K1327-10210 PLATEPLATE
-
13271AK1327-11727 PLATEPLATE
-
14001K1400-15394 SET-CRANKCASESET-CRANKCASE
-
14014K1401-41084 PLATE-POSITIONPLATE-POSITION
-
16165K1616-51058 SEPARATORSEPARATOR
-
32033K3203-31535 PIPE,OIL FILTERPIPE,OIL FILTER
-
32153K3215-31262 PIPE, RIGHT HAND CRANKCASEPIPE, RIGHT HAND CRANKCASE
-
32153AK3215-31263 PIPE, LEFT HAND CRANKCASEPIPE, LEFT HAND CRANKCASE
-
49063K4906-31057 SEAL-MECHANICALSEAL-MECHANICAL
-
92002K9200-21439 BOLT,6X16BOLT,6X16
-
92004K9200-40011 STUD,8X25STUD,8X25
-
92004AK9200-41174 STUD,8X231STUD,8X231
-
92004BK9200-41214 STUD,8X25STUD,8X25
-
92004CK9200-41240 STUD,12X250STUD,12X250
-
92005K9200-51155 FITTINGFITTING
-
92022K9202-21517 WASHER,6X19.5X2WASHER,6X19.5X2
-
92037K9203-71835 CLAMPCLAMP
-
92043K9204-31266 PIN,11X14X12.3PIN,11X14X12.3
-
92045K9204-51151 BEARING-BALL,6001JRXLLU/5KBEARING-BALL,6001JRXLLU/5K
-
92045AK9204-51183 BEARING-BALL,TMB3/28JR2C3BEARING-BALL,TMB3/28JR2C3
-
92045BK9204-51190 BEARING-BALL,6306SH2BEARING-BALL,6306SH2
-
92046K9204-61292 BEARING-NEEDLE,HK1212V11BEARING-NEEDLE,HK1212V11
-
92048K9204-81103 RACERACE
-
92048AK9204-81113 RACERACE
-
92049K9204-91228 SEAL-OIL,AC037AE0SEAL-OIL,AC037AE0
-
92055K9205-51373 RING-O,13.2X2.4RING-O,13.2X2.4
-
92062K9206-21078 NOZZLE,6X8,GREENNOZZLE,6X8,GREEN
-
92062AK9206-21089 NOZZLENOZZLE
-
92065KK920-65097 GASKET,12X22X2GASKET,12X22X2
-
92066K9206-61012 PLUG,OIL LINE,7.2X8PLUG,OIL LINE,7.2X8
-
92066AK9206-61110 PLUGPLUG
-
92066BK9206-61174 PLUG,OIL DRAIN,12X15PLUG,OIL DRAIN,12X15
-
92071K9207-11269 GROMMET,SEPARATORGROMMET,SEPARATOR
-
92150K9215-01161 BOLTBOLT
-
92150AK9215-01868 BOLT,6X12BOLT,6X12
-
92151K9215-11416 BOLT,6X8BOLT,6X8
-
92153K9215-30344 BOLT,6X12BOLT,6X12
-
92171K9217-11273 CLAMPCLAMP
-
601KK601-A6001 BEARING-BALLBEARING-BALL
-
702K702A-04330 TUBE-RUBBER,4X330TUBE-RUBBER,4X330
