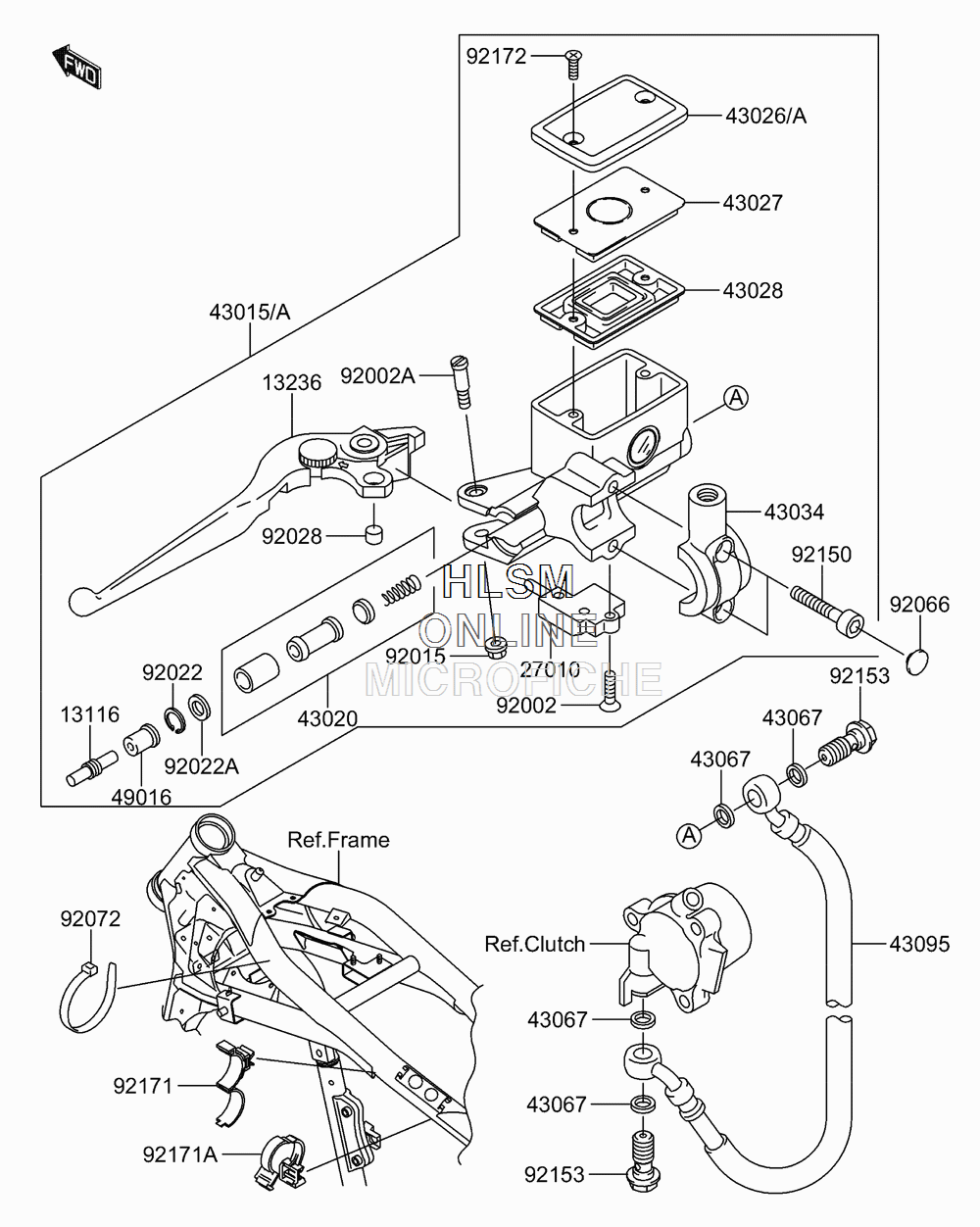

CLUTCH MASTER CYLINDER для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
13116K1311-61110 ROD-PUSH,MASTER CYLINDERROD-PUSH,MASTER CYLINDER
-
13236K1323-61316 LEVER-COMP,CLUTCHLEVER-COMP,CLUTCH
-
27010K2701-01406 SWITCH,CLUTCHSWITCH,CLUTCH
-
43015AK4301-50035 CYLINDER-ASSY-MASTER,CLUTCHCYLINDER-ASSY-MASTER,CLUTCH
-
43020K4302-01055 PISTON-COMP-BRAKE,CLUTCHPISTON-COMP-BRAKE,CLUTCH
-
43026AK4302-60003 CAP-BRAKECAP-BRAKE
-
43027K4302-71059 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
43028K4302-81058 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
43034K4303-41172 HOLDER-BRAKEHOLDER-BRAKE
-
43067KK430-67001 WASHER,10.5X15X1.5WASHER,10.5X15X1.5
-
43095K4309-51215 HOSE-BRAKE,CLUTCHHOSE-BRAKE,CLUTCH
-
49016K4901-61044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
92002K9200-21325 SCREW,4X16SCREW,4X16
-
92002AK9200-21561 BOLT,LEVER SETBOLT,LEVER SET
-
92015K9201-51528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92022K9202-21605 CIRCLIPCIRCLIP
-
92022AK9202-21606 WASHER,PISTONWASHER,PISTON
-
92028K9202-81310 BUSHING,MASTER CYLINDERBUSHING,MASTER CYLINDER
-
92066K9206-61301 PLUGPLUG
-
92072K9207-21197 BAND,L=365BAND,L=365
-
92150K9215-01025 BOLT,SOCKET,6MMBOLT,SOCKET,6MM
-
92153K9215-30627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92171K9217-11424 CLAMP,DIA=15CLAMP,DIA=15
-
92171AK9217-11440 CLAMP,HOSECLAMP,HOSE
-
92172K9217-20083 SCREWSCREW
