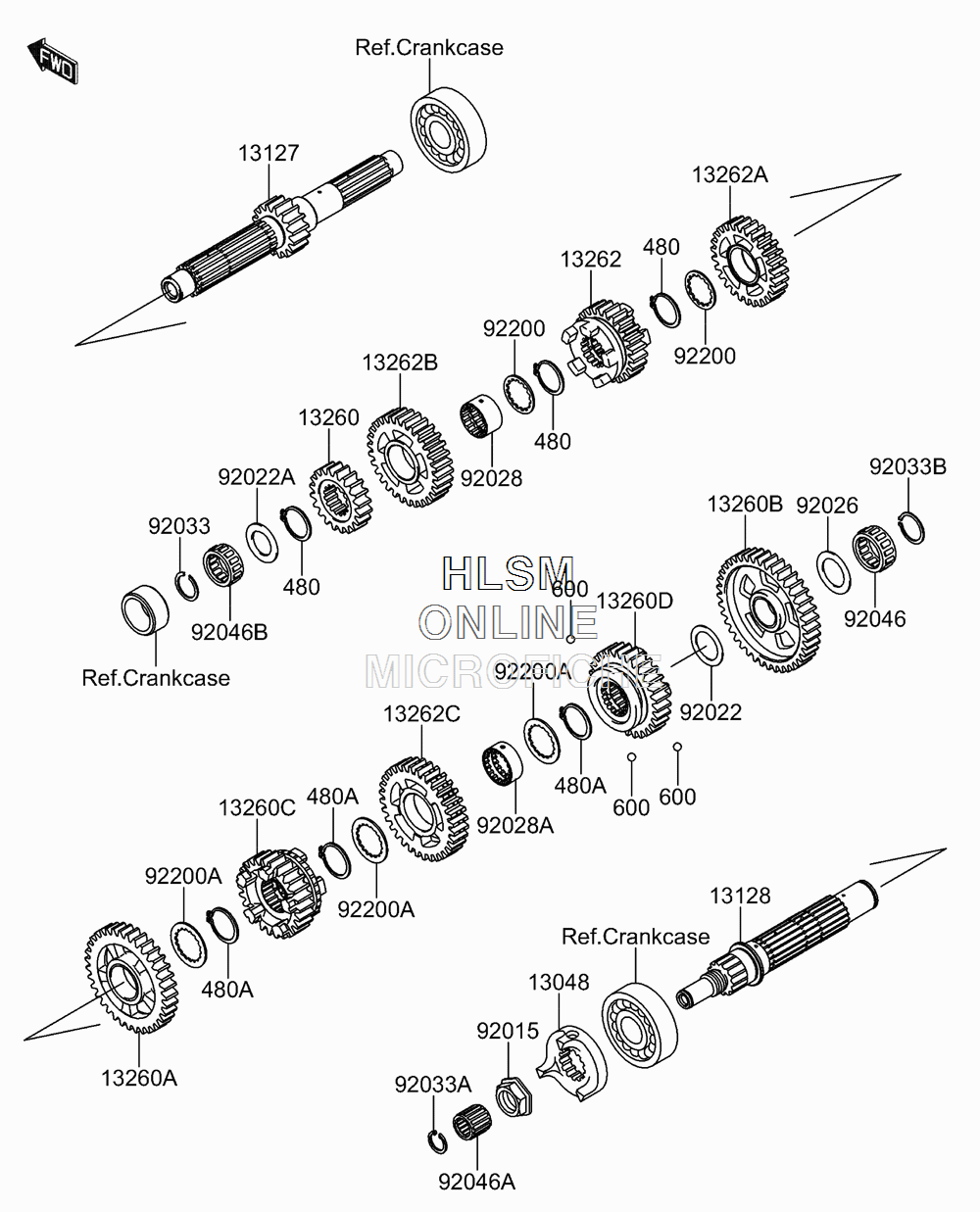

TRANSMISSION для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
13048K1304-81086 CAM-DAMPERCAM-DAMPER
-
13127K1312-71288 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
13128K1312-80002 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
13260K1326-01905 GEAR,INPUT 2ND,20TGEAR,INPUT 2ND,20T
-
13260AK1326-01909 GEAR,OUTPUT 2ND,35TGEAR,OUTPUT 2ND,35T
-
13260BK1326-01910 GEAR,OUTPUT LOW,40TGEAR,OUTPUT LOW,40T
-
13260CK1326-01912 GEAR,OUTPUT TOP,26TGEAR,OUTPUT TOP,26T
-
13260DK1326-01913 GEAR,OUTPUT 4TH,29TGEAR,OUTPUT 4TH,29T
-
13262K1326-20053 GEAR,INPUT 3RD,24TGEAR,INPUT 3RD,24T
-
13262AK1326-20054 GEAR,INPUT 4TH,27TGEAR,INPUT 4TH,27T
-
13262BK1326-20055 GEAR,INPUT 5TH,30TGEAR,INPUT 5TH,30T
-
13262CK1326-20056 GEAR,OUTPUT 3RD,32TGEAR,OUTPUT 3RD,32T
-
92015K9201-51610 NUT,20MMNUT,20MM
-
92022K9202-21855 WASHER,25.5X36X1.0WASHER,25.5X36X1.0
-
92022AKK920-22212 WASHER,22.3X35X1.6WASHER,22.3X35X1.6
-
92026K9202-61536 SPACER,25.5X38X1.0SPACER,25.5X38X1.0
-
92028K9202-81990 BUSHING,INPUT TOP GEARBUSHING,INPUT TOP GEAR
-
92028AK9202-81991 BUSHING,OUTPUT 3RD GEARBUSHING,OUTPUT 3RD GEAR
-
92033KK920-33025 RING-SNAP,20X25.5X1.2RING-SNAP,20X25.5X1.2
-
92033AKK920-33032 RING-SNAPRING-SNAP
-
92033BK9203-31172 RING-SNAP,25MMRING-SNAP,25MM
-
92046K9204-61259 BEARING-NEEDLE,TK253515BEARING-NEEDLE,TK253515
-
92046AK9204-61260 BEARING-NEEDLE,FWF-162222BEARING-NEEDLE,FWF-162222
-
92046BK9204-61293 BEARING-NEEDLE,BN502250BEARING-NEEDLE,BN502250
-
92200K9220-01240 WASHER,28.5X34.0X1.5WASHER,28.5X34.0X1.5
-
92200AK9220-01381 WASHER,30.3X40X1.5WASHER,30.3X40X1.5
-
480KK480-J2800 CIRCLIP-TYPE-C,28MMCIRCLIP-TYPE-C,28MM
-
480AKK480-J2900 CIRCLIPCIRCLIP
-
600KK600-A0500 BALL-STEEL,5/32''BALL-STEEL,5/32''
