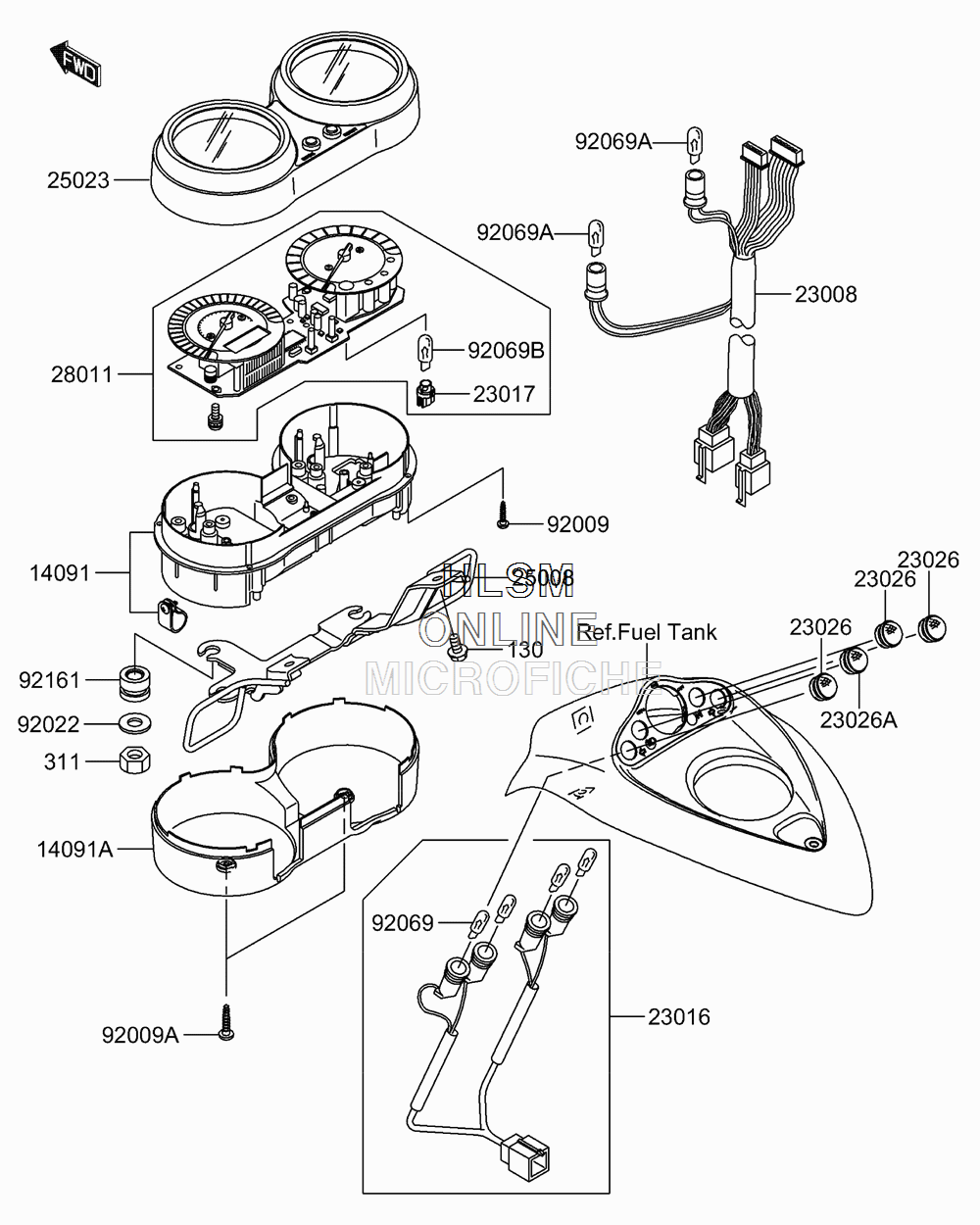

METER для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
14091K1409-11370 COVER,METER HOUSINGCOVER,METER HOUSING
-
14091AK1409-11371 COVER,METER,LWRCOVER,METER,LWR
-
23008K2300-81655 SOCKET-ASSY,METERSOCKET-ASSY,METER
-
23016K2301-61192 LAMP-ASSYLAMP-ASSY
-
23017K2301-71064 SOCKETSOCKET
-
23026K2302-61171 LENS,GREENLENS,GREEN
-
23026AK2302-61172 LENS,BLUELENS,BLUE
-
25008K2500-81230 BRACKET-METERBRACKET-METER
-
25023K2502-31261 COVER-METER CASE,UPPCOVER-METER CASE,UPP
-
28011K2801-10009 METER,SPEEDANDTACHO,MPHMETER,SPEEDANDTACHO,MPH
-
92009K9200-91592 SCREW,TAPPING,3X14SCREW,TAPPING,3X14
-
92009AK9200-91601 SCREW,TAPPING,4X16SCREW,TAPPING,4X16
-
92022KK920-22263 WASHER,5.2X16X1.2WASHER,5.2X16X1.2
-
92069K9206-91007 BULB,12V 3.4W,T10BULB,12V 3.4W,T10
-
92069AK9206-91059 BULB,12V 1.7W,T10BULB,12V 1.7W,T10
-
92069BK9206-91068 BULB,12V 3W,T6.5BULB,12V 3W,T6.5
-
92161K9216-11247 DAMPER,METER BRACKETDAMPER,METER BRACKET
-
130KK130-J0612 BOLT-FLANGEDBOLT-FLANGED
-
311KK311-B0500 NUT-HEXNUT-HEX
