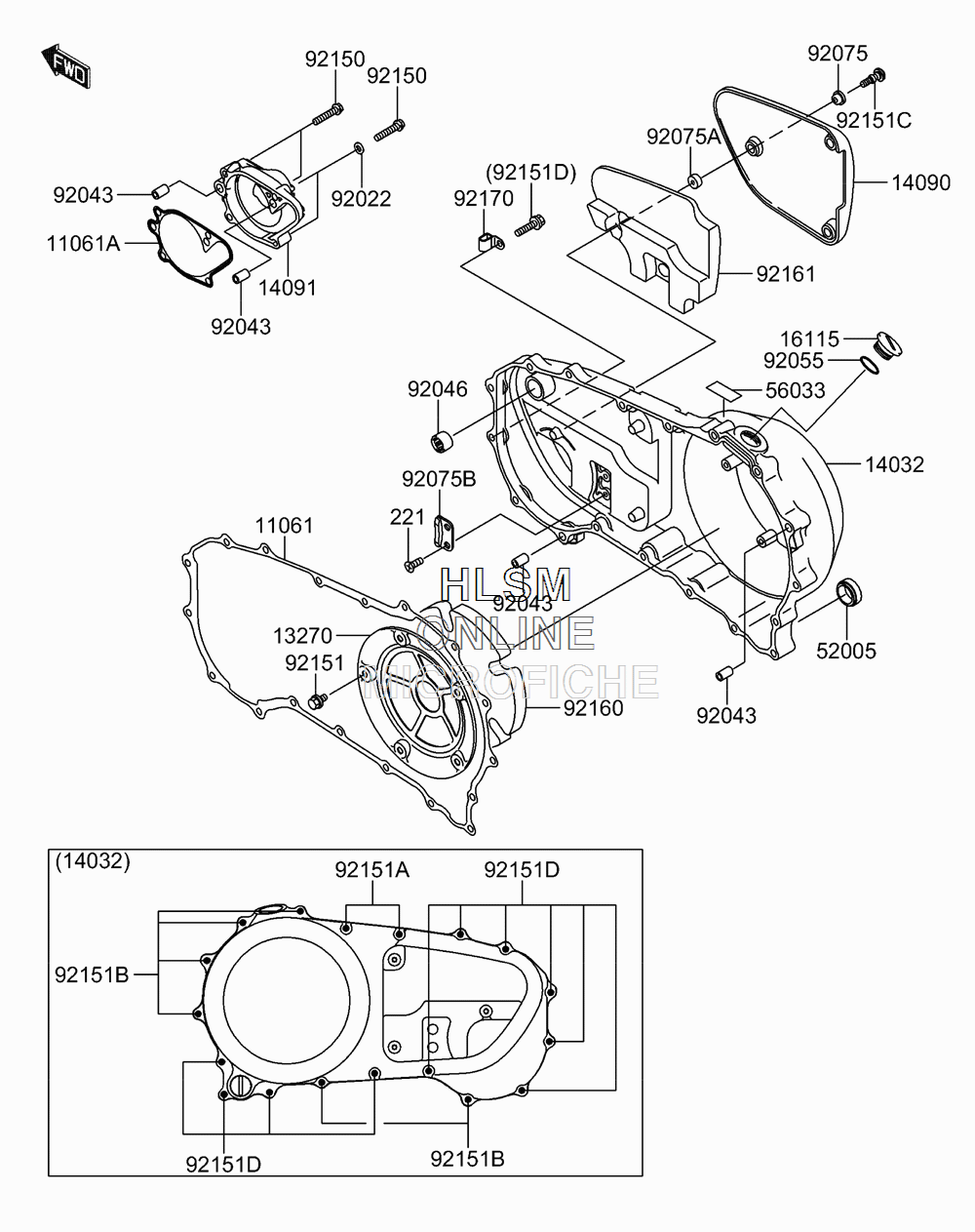

RIGHT ENGINE COVER для Suzuki VZ1600CA K5 - 2005 года выпуска
-
№АртикулНазвание
-
11061K1106-11081 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
11061AK1106-11172 GASKET,WATER PUMP COVERGASKET,WATER PUMP COVER
-
13270K1327-01592 PLATEPLATE
-
14032K1403-21493 COVER-CLUTCHCOVER-CLUTCH
-
14090K1409-01678 COVER,CLUTCH OUTERCOVER,CLUTCH OUTER
-
14091K1409-10124 COVER,WATER PUMPCOVER,WATER PUMP
-
16115K1611-51063 CAP-OIL FILLERCAP-OIL FILLER
-
52005K5200-51009 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
56033K5603-31156 LABEL-MANUAL,OIL CAPACITYLABEL-MANUAL,OIL CAPACITY
-
11061BK1106-10107 GASKETGASKET
-
92043K9204-31263 PIN,6.2X8X14PIN,6.2X8X14
-
92046K9204-61163 BEARING-NEEDLE,HK1212BEARING-NEEDLE,HK1212
-
92055KK920-55049 RING-O,31.7X2.4RING-O,31.7X2.4
-
92075K9207-51855 DAMPERDAMPER
-
92075AK9207-51856 DAMPERDAMPER
-
92075BK9207-51905 DAMPERDAMPER
-
92150K9215-01021 BOLT,6X30BOLT,6X30
-
92151K9215-11064 BOLT,6X10BOLT,6X10
-
92151AK9215-11134 BOLT,6X30BOLT,6X30
-
92151BK9215-11135 BOLT,6X35BOLT,6X35
-
92151CK9215-11273 BOLT,SOCKET,M6X22.5BOLT,SOCKET,M6X22.5
-
92151DK9215-11930 BOLT,6X25BOLT,6X25
-
92160K9216-01716 DAMPERDAMPER
-
92161K9216-11139 DAMPERDAMPER
-
92170K9217-01804 CLAMPCLAMP
-
221KK221-B0612 SCREW-CSK-CROS,6X12SCREW-CSK-CROS,6X12
