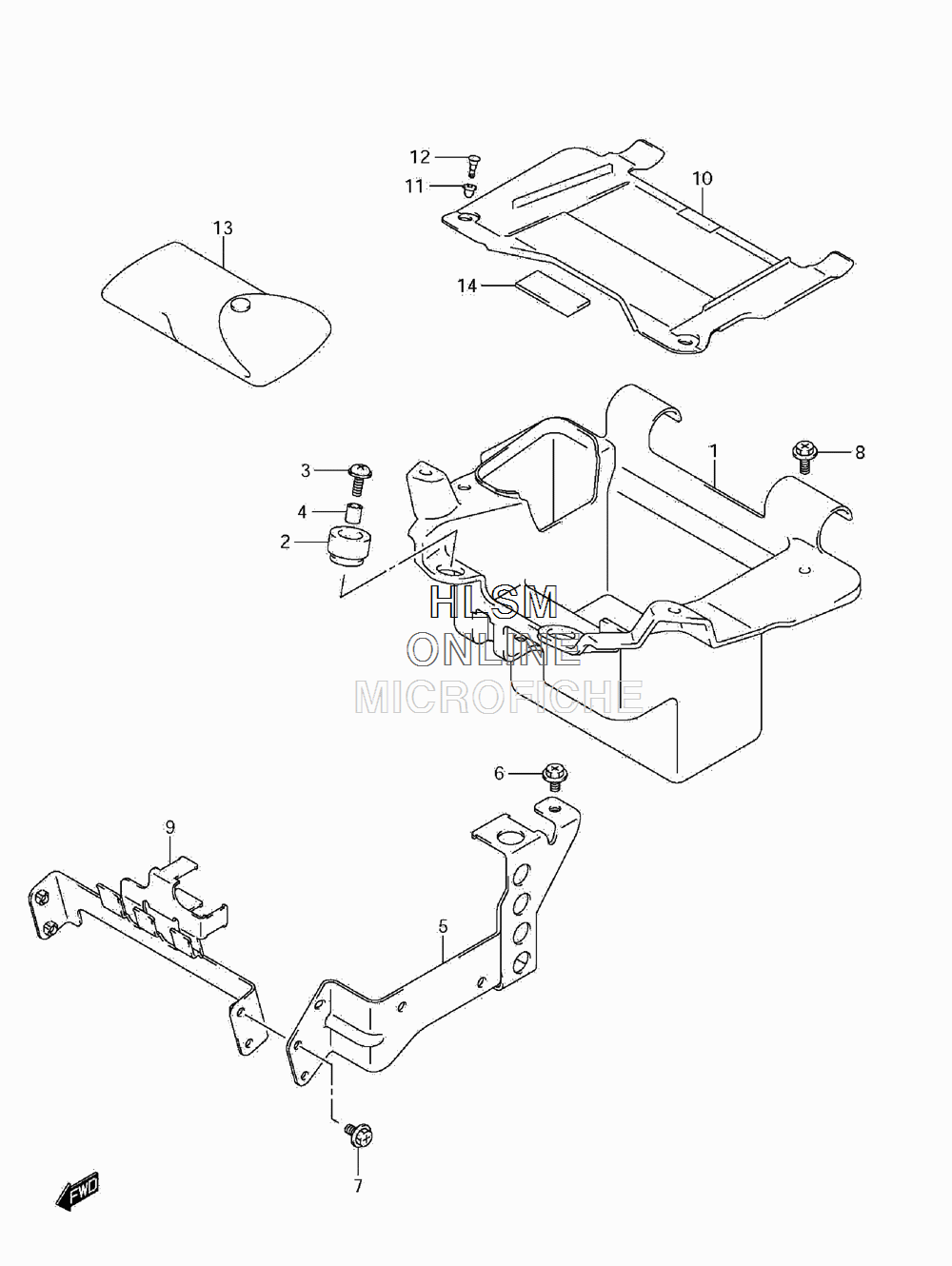

BATTERY HOLDER для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
141541-48G00 HOLDER, BATTERYHOLDER, BATTERY
-
247115-16G00 CUSHIONCUSHION
-
309136-06105 SCREW (6X20)SCREW (6X20)
-
409180-06289 SPACER (6.5X10X11.5)SPACER (6.5X10X11.5)
-
541550-48G00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
602162-0608A BOLTBOLT
-
702162-0610A BOLTBOLT
-
802162-0616A BOLTBOLT
-
941560-48G00 BRACKET, RELAYBRACKET, RELAY
-
1047432-48G00 LID, BATTERY HOLDERLID, BATTERY HOLDER
-
1109409-08329 GROMMETGROMMET
-
1209409-08330 PLUNGERPLUNGER
-
1309800-21055 TOOL ASSYTOOL ASSY
-
1463115-35G10 CUSHION, LIDCUSHION, LID
