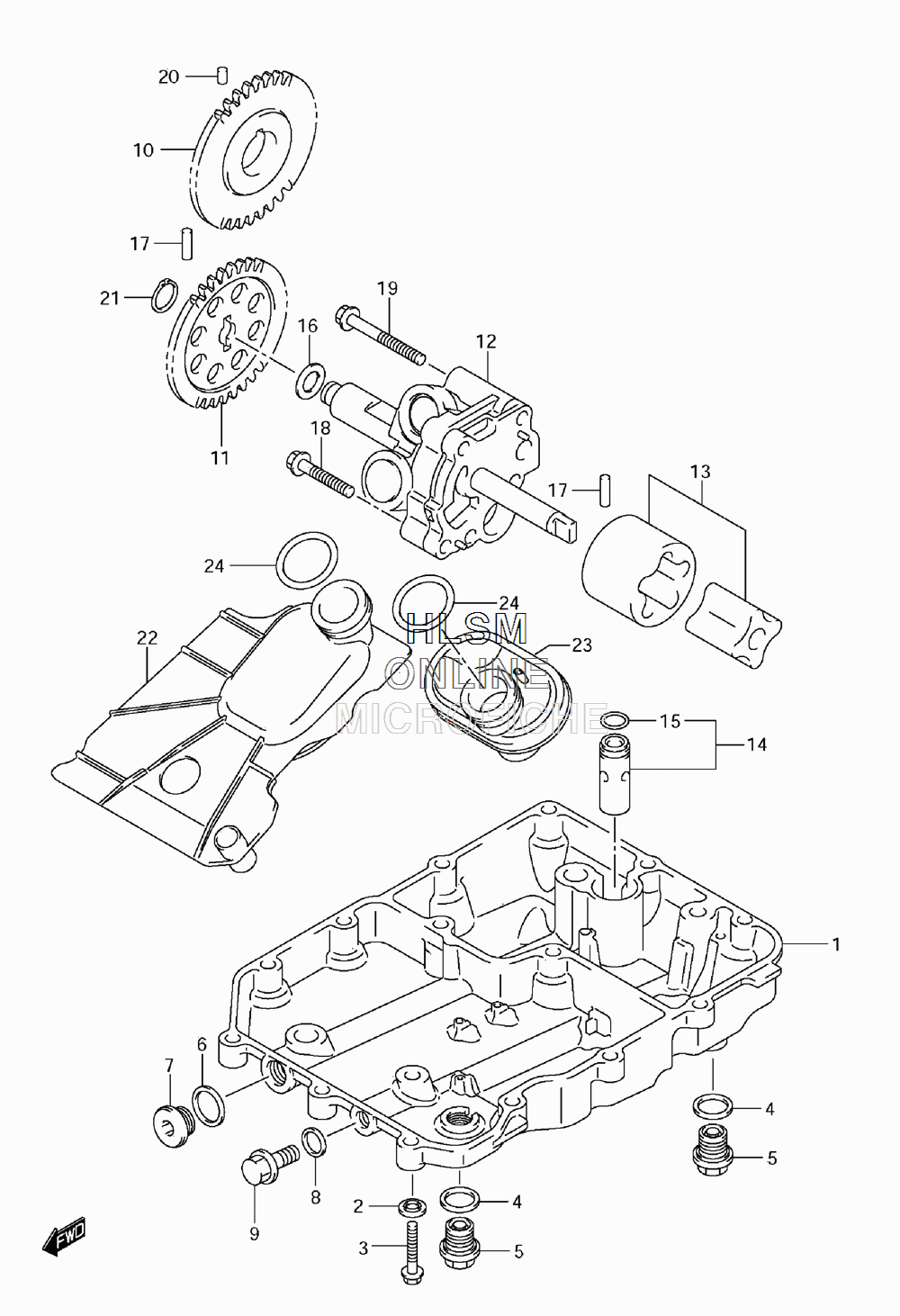

OIL PAN W/ OIL PUMP ASSY. для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
111511-48G00 PAN, OILPAN, OIL
-
209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
301547-0630A BOLTBOLT
-
409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
509247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
709248-16012 PLUGPLUG
-
809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
909247-10008 PLUGPLUG
-
1016321-48G00 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1116331-48G00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
1216400-48G00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
1316410-48G00 ROTOR SET, OIL PUMPROTOR SET, OIL PUMP
-
1416440-24F00 VALVE ASSY, OIL RELIEF (INC 15)VALVE ASSY, OIL RELIEF (INC 15)
-
1509280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1609181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1709261-04009 PINPIN
-
1801547-0635A BOLTBOLT
-
1901547-0655A BOLTBOLT
-
2004221-04069 PINPIN
-
2108331-3110A CIRCLIPCIRCLIP
-
2216530-48G00 STRAINER, ENG OIL FRONTSTRAINER, ENG OIL FRONT
-
2316520-48G00 STRAINER, ENG OIL REARSTRAINER, ENG OIL REAR
-
2409280-22016 O RING (D:3.7,ID:21.7)O RING (D:3.7,ID:21.7)
