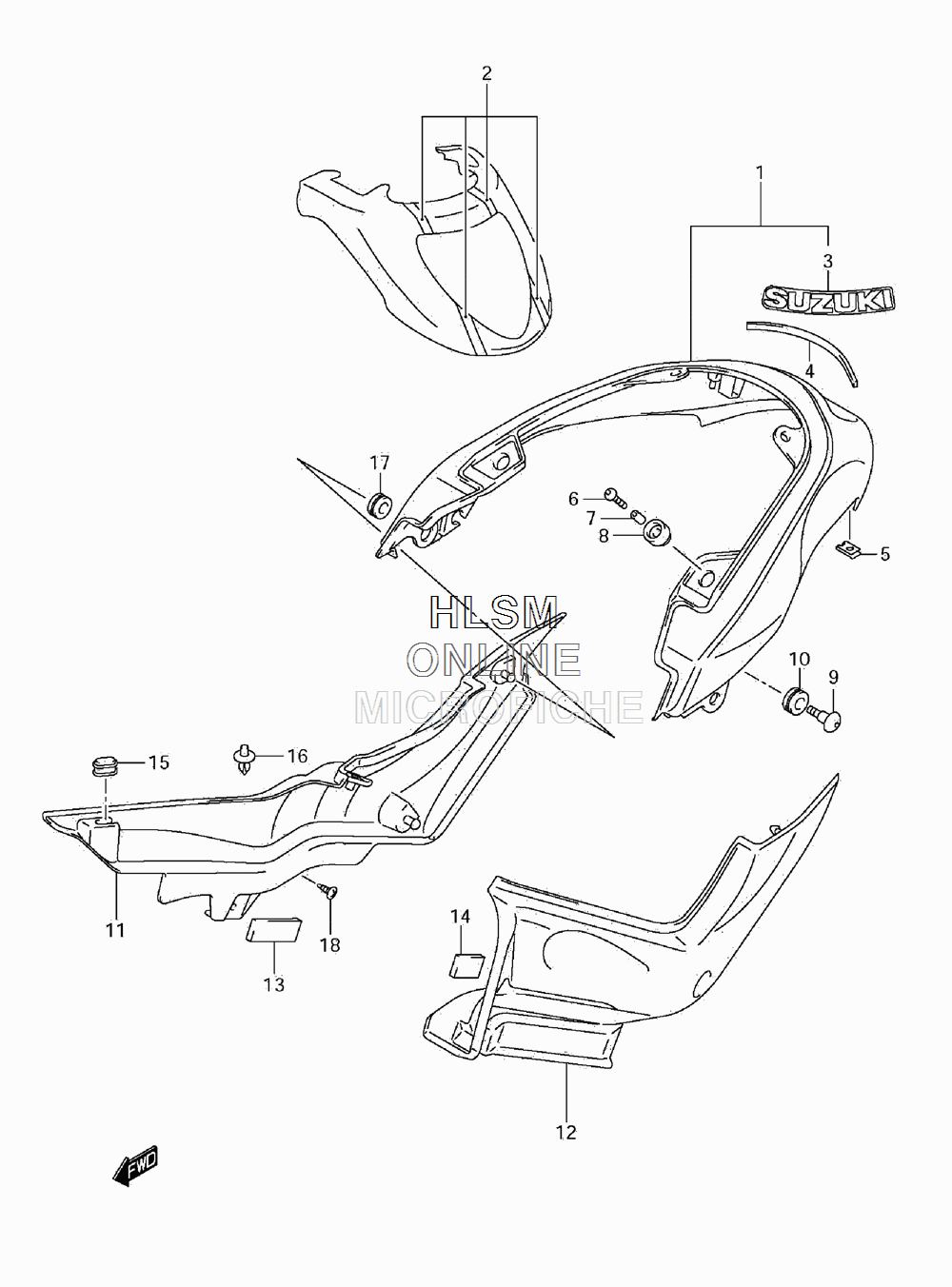

FENDER - REAR для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
163110-48G50-JBA FENDER, REAR (INC 3) (BLACK/ORANGE) (JBA)FENDER, REAR (INC 3) (BLACK/ORANGE) (JBA)
-
268170-48G50-JBA TAPE SET (BLACK/ORANGE) (JBA)TAPE SET (BLACK/ORANGE) (JBA)
-
368161-44GA0-JBA EMBLEM (BLACK/ORANGE) (JBA)EMBLEM (BLACK/ORANGE) (JBA)
-
463117-39G00 CUSHIONCUSHION
-
594484-24F00 NUTNUT
-
609139-06139 SCREW (6X16)SCREW (6X16)
-
709180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
809320-10045 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-09016 CUSHIONCUSHION
-
1163171-48G51-YVB COVER, REAR FENDER RIGHT HAND (BLACK) (YVB)COVER, REAR FENDER RIGHT HAND (BLACK) (YVB)
-
1263181-48G51-YVB COVER, REAR FENDER LEFT HAND (BLACK) (YVB)COVER, REAR FENDER LEFT HAND (BLACK) (YVB)
-
1315439-70G10 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
1447161-19C00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1544276-29G00 CUSHION, COVERCUSHION, COVER
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1709320-08028 CUSHIONCUSHION
-
1803541-0516A SCREWSCREW
