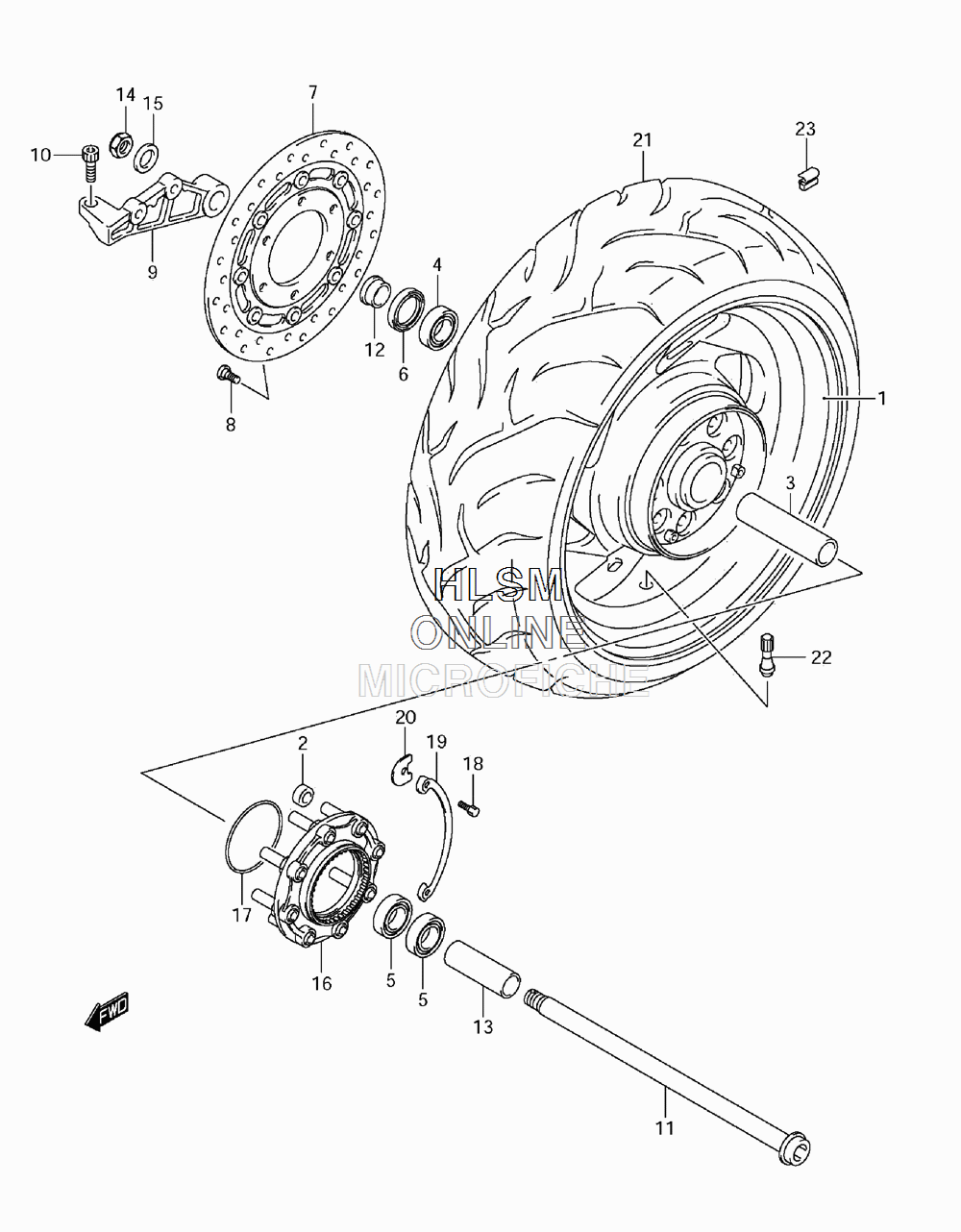

WHEEL - REAR для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
164100-48810-019 WHEEL SET, REAR (18M/CXMT8.5) (BLACK)WHEEL SET, REAR (18M/CXMT8.5) (BLACK)
-
209319-12019 BUSHBUSH
-
364731-48G00 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
409262-25061 BEARING (25X52X15)BEARING (25X52X15)
-
508143-62057 BEARING (LEFT)BEARING (LEFT)
-
609285-32004 OIL SEAL (32X52X7) (RIGHT)OIL SEAL (32X52X7) (RIGHT)
-
769210-10F40 DISC, REAR BRAKEDISC, REAR BRAKE
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
969721-48G10 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
1009103-12109 BOLT (12X40)BOLT (12X40)
-
1164711-48G00 AXLE, REARAXLE, REAR
-
1264741-48G00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
1364772-48G00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1409159-22007 NUTNUT
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1664680-48G00 JOINT ASSY, REAR HUBJOINT ASSY, REAR HUB
-
1709280-80001 O RING (D:2.4,ID:79.8)O RING (D:2.4,ID:79.8)
-
1809119-06049 BOLTBOLT
-
1964679-48G00 WASHER, REAR HUB DRIVENWASHER, REAR HUB DRIVEN
-
2064677-48G10 WASHER, THRUSTWASHER, THRUST
-
2165110-48G00 TIRE, RR, 240/40R18M/C 79V (DUNLOP) D221TIRE, RR, 240/40R18M/C 79V (DUNLOP) D221
-
2243130-24A00 VALVE ASSY, WHEEL RIMVALVE ASSY, WHEEL RIM
-
2343222-73H20 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2343224-73H20 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2343226-73H20 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
