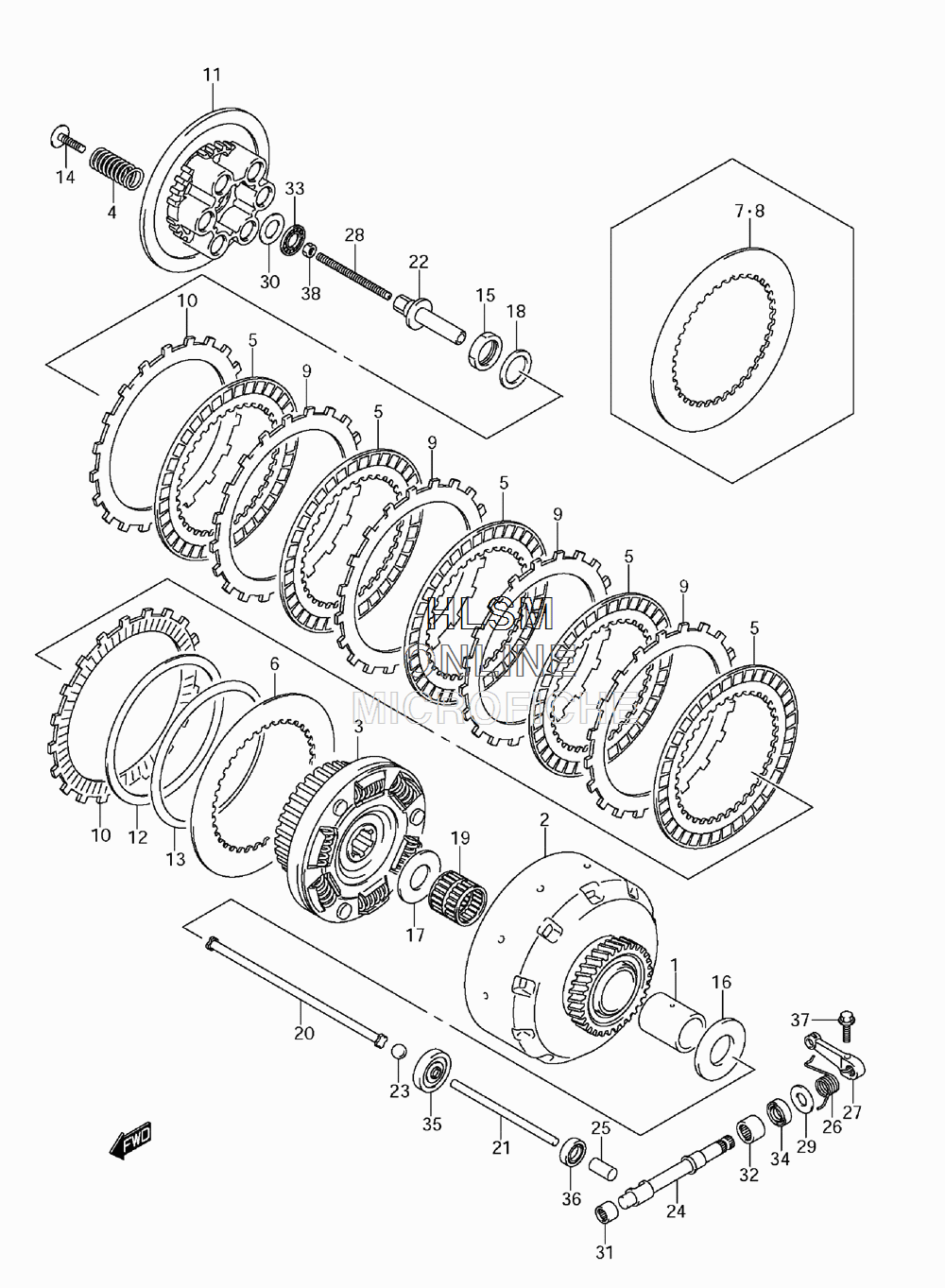

CLUTCH для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
121151-48G00 SPACER, PRIMARY DRIVE GEARSPACER, PRIMARY DRIVE GEAR
-
221100-48G01 GEAR ASSY, PRIMARY DRIVE NT:33GEAR ASSY, PRIMARY DRIVE NT:33
-
321410-48G10 HUB, CLUTCHHUB, CLUTCH
-
421413-35F10 SPRING, CLUTCHSPRING, CLUTCH
-
521441-22H00 PLATE, CLUTCH DRIVE NO.1 T:3.0PLATE, CLUTCH DRIVE NO.1 T:3.0
-
621441-48G40 PLATE, CLUTCH DRIVE NO.2 T:2.0PLATE, CLUTCH DRIVE NO.2 T:2.0
-
721441-48G50 PLATE, CLUTCH DRIVE NO.3 T:2.3PLATE, CLUTCH DRIVE NO.3 T:2.3
-
821441-48G60 PLATE, CLUTCH DRIVE NO.4 T:1.6PLATE, CLUTCH DRIVE NO.4 T:1.6
-
921451-22H00 PLATE, CLUTCH DRIVEN NO.1 T:2.3PLATE, CLUTCH DRIVEN NO.1 T:2.3
-
1021451-48G10 PLATE, CLUTCH DRIVEN NO.2 T:3.4PLATE, CLUTCH DRIVEN NO.2 T:3.4
-
1121462-48G00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1221471-48G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1321472-48G10 WASHER, CLUTCH PLATEWASHER, CLUTCH PLATE
-
1421482-41G00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1509159-24010 NUTNUT
-
1609160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1709160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1809164-24008 WASHERWASHER
-
1909263-32020 BEARING (32X37X38.3)BEARING (32X37X38.3)
-
2023110-24F00 ROD, CLUTCHROD, CLUTCH
-
2123111-48G00 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
2223121-41G00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2323122-02FR0 BALL, CLUTCH PUSHBALL, CLUTCH PUSH
-
2423122-48G00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2523123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2623125-48G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2723271-48G00 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2809134-06015 SCREW (6X73)SCREW (6X73)
-
2909160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
3009160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
3109263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
3209263-12027 BEARING (12X18X12)BEARING (12X18X12)
-
3309263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3409282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
3509283-06010 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
3609285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
3701547-0620A BOLTBOLT
-
3808310-0006A NUTNUT
