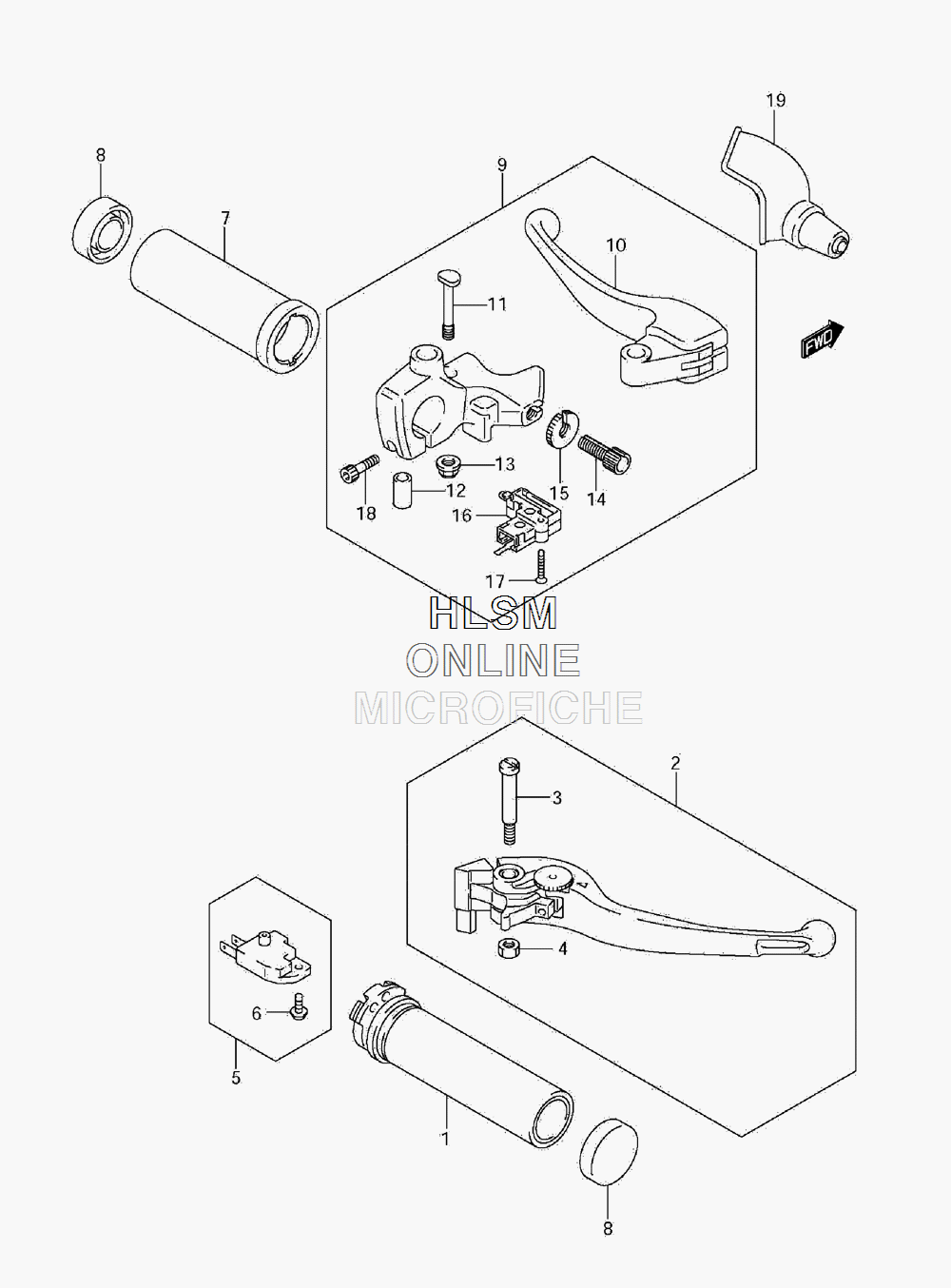

HANDLEBAR - LEVERS / SWITCHES (EXCEPT CALIF) для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
157110-26D10 GRIP, THROTTLEGRIP, THROTTLE
-
257300-48G10 LEVER ASSY, BRAKE (INC 3-4)LEVER ASSY, BRAKE (INC 3-4)
-
357431-48G00 BOLT, PIVOTBOLT, PIVOT
-
408319-2106A NUTNUT
-
557460-17C11 SWITCH ASSY, STOP (INC 6)SWITCH ASSY, STOP (INC 6)
-
657465-17C00 SCREWSCREW
-
757210-26D00 GRIP, LEFT HANDGRIP, LEFT HAND
-
857216-38A00 CAP, GRIP ENDCAP, GRIP END
-
957500-48G21 LEVER ASSY, CLUTCH (INC 10-18)LEVER ASSY, CLUTCH (INC 10-18)
-
1057621-48G11 LEVER, CLUTCHLEVER, CLUTCH
-
1157531-48G00 BOLT, PIVOTBOLT, PIVOT
-
1257623-48G00 SPACERSPACER
-
1308319-3106B NUTNUT
-
1457441-08C00 ADJUSTER, CABLEADJUSTER, CABLE
-
1557442-08C00 NUT, LOCKNUT, LOCK
-
1657560-05A10 SWITCH, CLUTCHSWITCH, CLUTCH
-
1757562-41G00 SCREWSCREW
-
1807130-0620A BOLTBOLT
-
1957541-48G10 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
