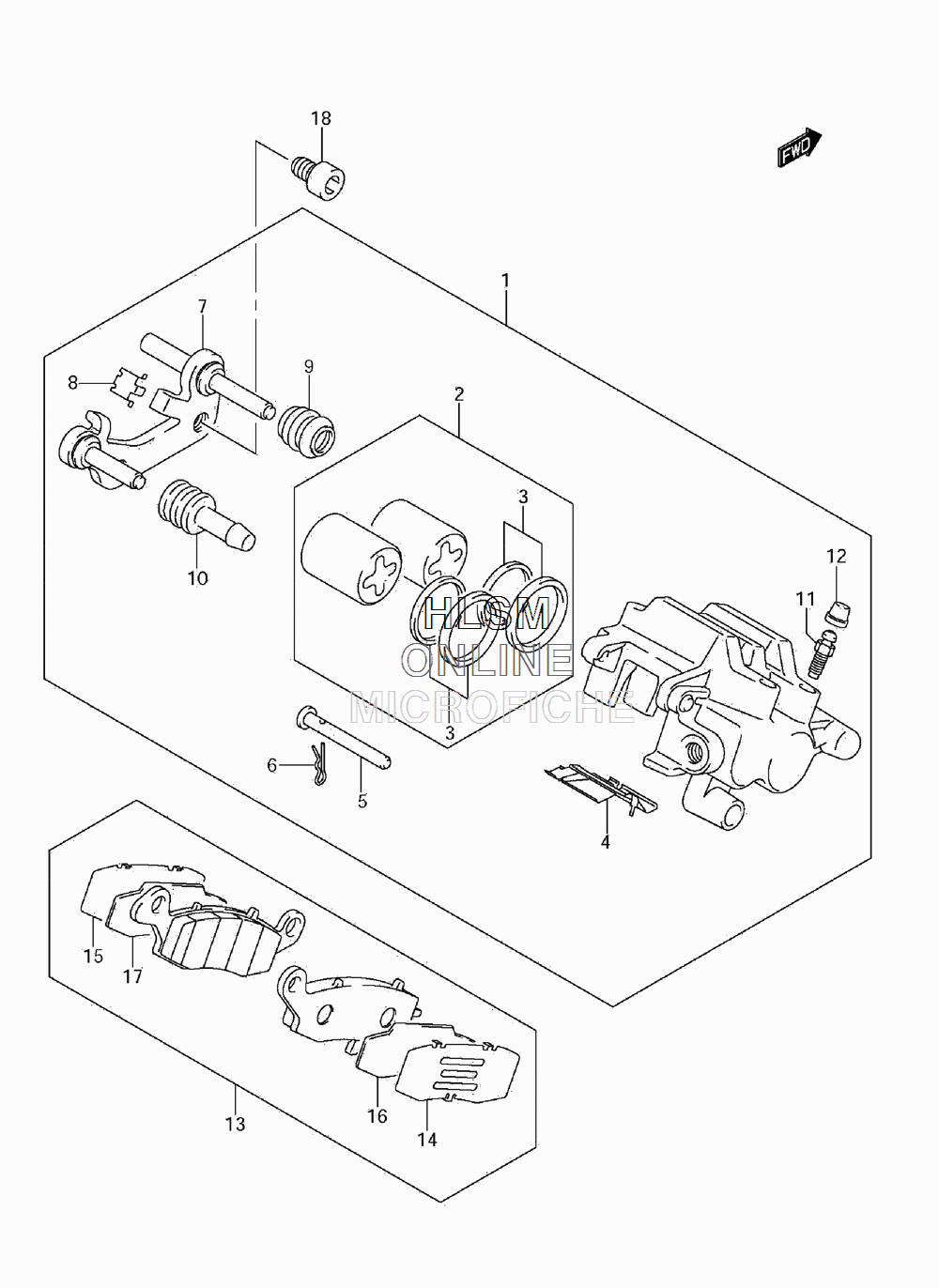

BRAKE - REAR CALIPER для Suzuki VZR1800Z L1 - 2011 года выпуска
-
№АртикулНазвание
-
169100-01D40-999 CALIPER ASSY, REAR (INC 2-12)CALIPER ASSY, REAR (INC 2-12)
-
269100-01840 PISTON SET (INC 3)PISTON SET (INC 3)
-
359300-33841 SEAL SET, PISTONSEAL SET, PISTON
-
469115-01D40 SPRING, PADSPRING, PAD
-
569141-01D40 PIN, PADPIN, PAD
-
669142-45000 CLIP, PAD PINCLIP, PAD PIN
-
769150-01D40 CARRIER, CALIPERCARRIER, CALIPER
-
859116-33D00 GUIDE, PADGUIDE, PAD
-
959112-44B00 BOOT, AXLEBOOT, AXLE
-
1059113-01D00 INSULATOR, AXLEINSULATOR, AXLE
-
1159121-03B00 BLEEDERBLEEDER
-
1255156-66310 CAP, BLEEDER PLUGCAP, BLEEDER PLUG
-
1369100-01870 PAD AND SHIM SET (INC 14-17)PAD AND SHIM SET (INC 14-17)
-
1459171-33D00 SHIM, PADSHIM, PAD
-
1559172-33D00 SHIM, PAD NO.2SHIM, PAD NO.2
-
1669171-01D40 INSULATOR NO.1INSULATOR NO.1
-
1769172-01D40 INSULATOR NO.2INSULATOR NO.2
-
1809106-10093 BOLT (10X20)BOLT (10X20)
