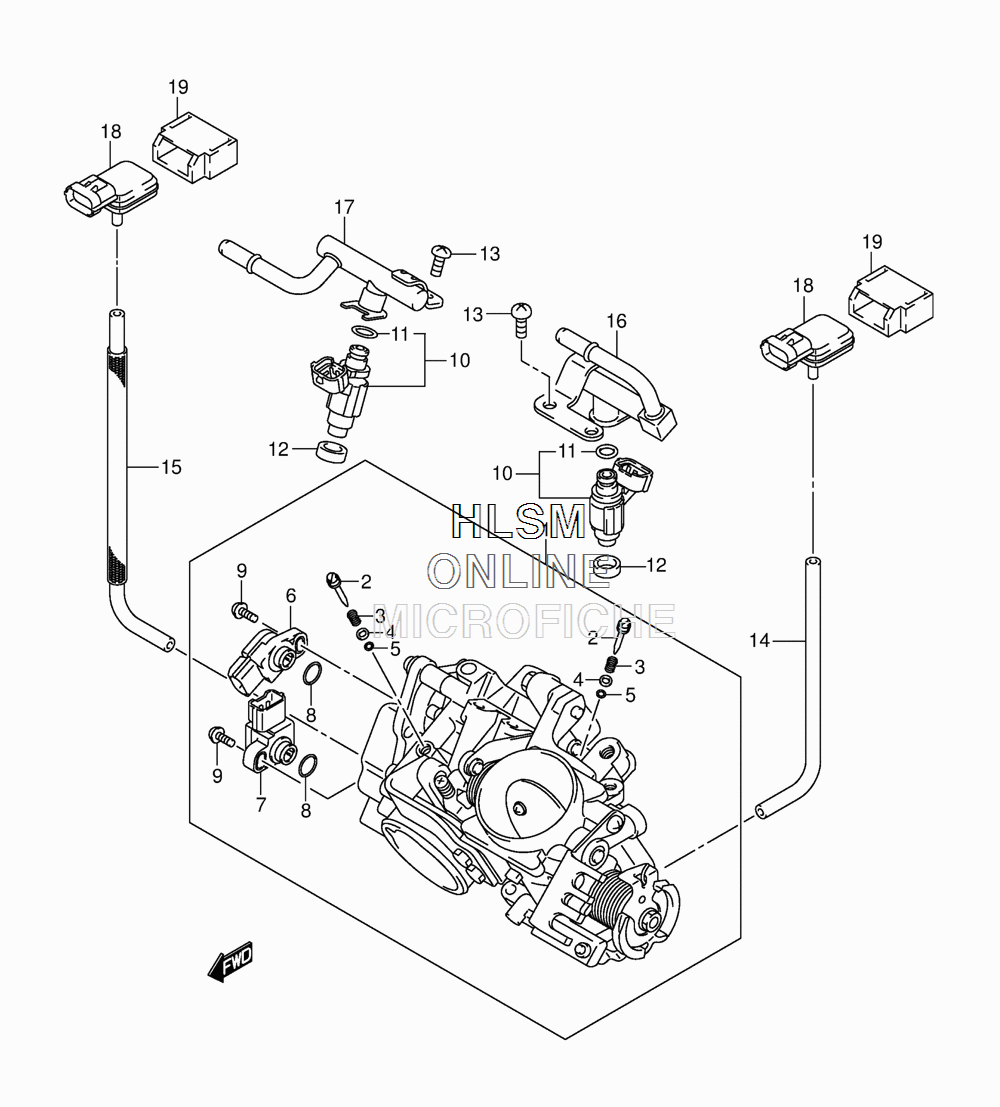

CARBURETOR - THROTTLE BODY для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
113405-40HA0 BODY, THROTTLEBODY, THROTTLE
-
213269-33E00 ADJUSTERADJUSTER
-
313268-48700 SPRINGSPRING
-
413606-47A00 WASHERWASHER
-
513295-29900 O RINGO RING
-
613580-48G10 SENSOR ASSYSENSOR ASSY
-
713580-48G00 SENSOR ASSYSENSOR ASSY
-
813575-29G00 O RINGO RING
-
913605-02F00 SCREWSCREW
-
1015710-48G00 INJECTOR ASSYINJECTOR ASSY
-
1115717-58B00 O RINGO RING
-
1215722-29G00 SEALSEAL
-
1313602-06148 SCREWSCREW
-
1413683-48G00 HOSEHOSE
-
1513683-40H10 HOSEHOSE
-
1615730-40H00 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1715730-40H10 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1818591-41F00 SENSOR, PRESSURESENSOR, PRESSURE
-
1918595-33G00 HOLDERHOLDER
