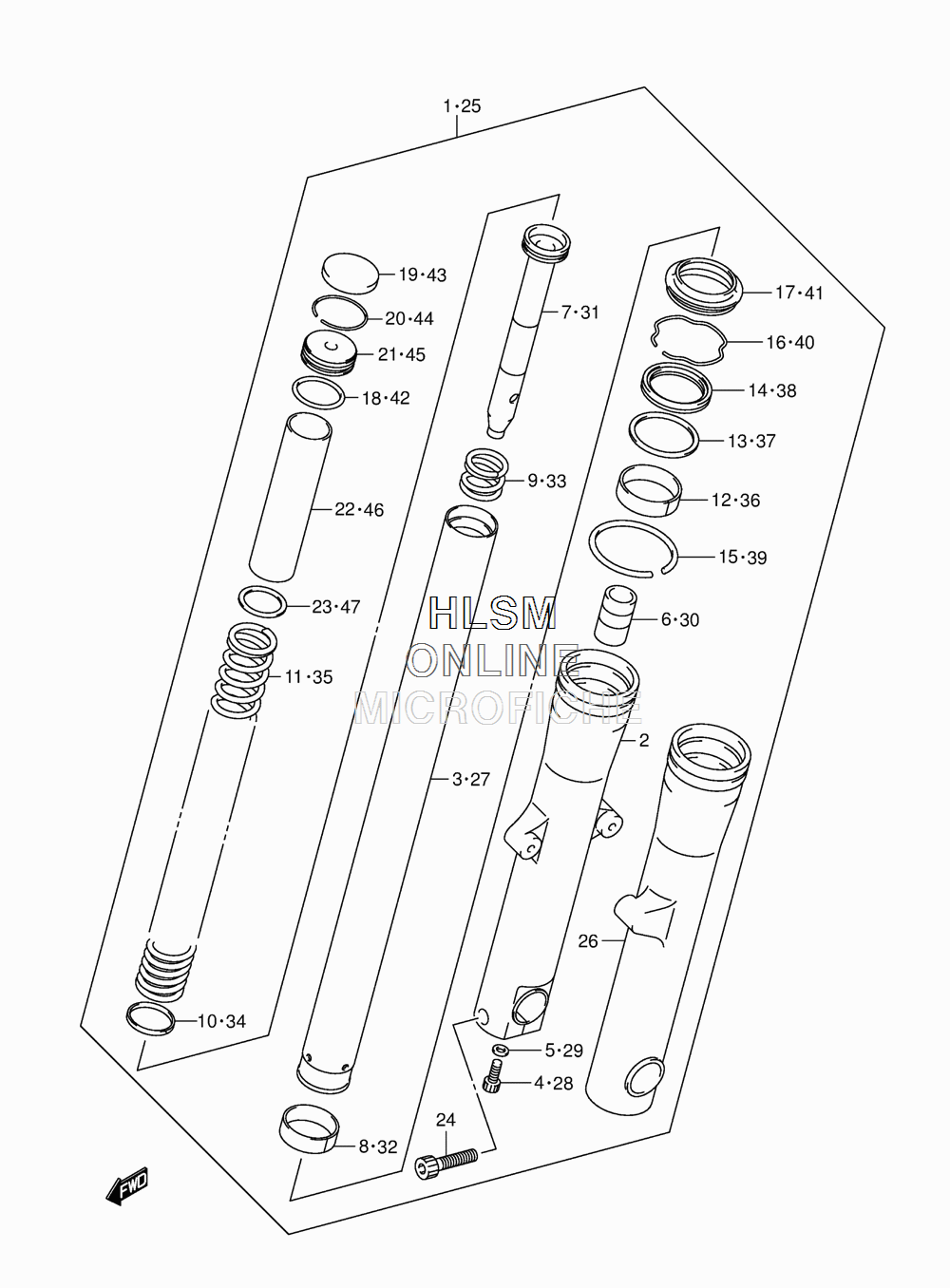

SUSPENSION - FRONT FORK (CANADA) для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
151103-06J40 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251131-06J40 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351110-06J00 TUBE, INNERTUBE, INNER
-
451147-06F10 BOLT, CENTERBOLT, CENTER
-
551148-31030 GASKETGASKET
-
651195-27G00 PIECE, OIL LOCKPIECE, OIL LOCK
-
751146-06J00 CYLINDERCYLINDER
-
851121-06J00 BUSH, SLIDEBUSH, SLIDE
-
951177-12C00 SPRING, REBOUNDSPRING, REBOUND
-
1051196-06J00 RING, PISTONRING, PISTON
-
1151171-06J00 SPRINGSPRING
-
1251167-06J00 GUIDE, BUSHGUIDE, BUSH
-
1351158-27C40 SPACER, SEALSPACER, SEAL
-
1451153-06J00 OIL SEALOIL SEAL
-
1551469-06J00 GUIDE, CASEGUIDE, CASE
-
1651156-27C40 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1751571-06J00 DUST SEALDUST SEAL
-
1851117-06J00 O RINGO RING
-
1951189-06J20 CAP, FORKCAP, FORK
-
2051169-06J00 STOPPER, RINGSTOPPER, RING
-
2151172-06J00 SEAT, SPRINGSEAT, SPRING
-
2251176-12C00 SPACER, SPRINGSPACER, SPRING
-
2351186-17C00 SEAT, SPRING LOWERSEAT, SPRING LOWER
-
2451328-22H00 BOLTBOLT
-
2551104-06J40 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2651141-06J40 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
2751110-06J00 TUBE, INNERTUBE, INNER
-
2851147-06F10 BOLT, CENTERBOLT, CENTER
-
2951148-31030 GASKETGASKET
-
3051195-27G00 PIECE, OIL LOCKPIECE, OIL LOCK
-
3151146-06J00 CYLINDERCYLINDER
-
3251121-06J00 BUSH, SLIDEBUSH, SLIDE
-
3351177-12C00 SPRING, REBOUNDSPRING, REBOUND
-
3451196-06J00 RING, PISTONRING, PISTON
-
3551171-06J00 SPRINGSPRING
-
3651167-06J00 GUIDE, BUSHGUIDE, BUSH
-
3751158-27C40 SPACER, SEALSPACER, SEAL
-
3851153-06J00 OIL SEALOIL SEAL
-
3951469-06J00 GUIDE, CASEGUIDE, CASE
-
4051156-27C40 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
4151571-06J00 DUST SEALDUST SEAL
-
4251117-06J00 O RINGO RING
-
4351189-06J20 CAP, FORKCAP, FORK
-
4451169-06J00 STOPPER, RINGSTOPPER, RING
-
4551172-06J00 SEAT, SPRINGSEAT, SPRING
-
4651176-12C00 SPACER, SPRINGSPACER, SPRING
-
4751186-17C00 SEAT, SPRING LOWERSEAT, SPRING LOWER
