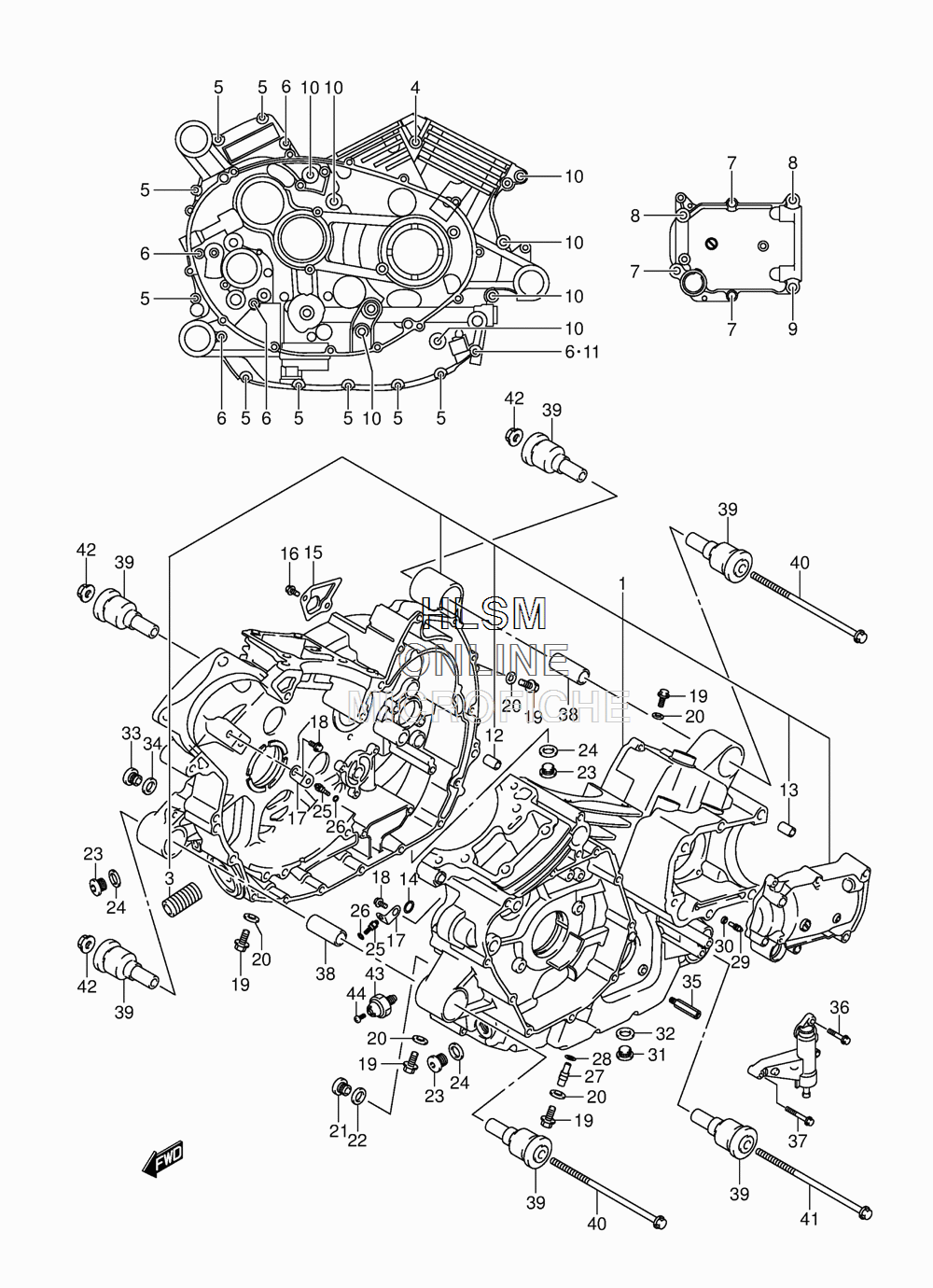

CRANKCASE (CALIF.) для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
111301-40880 CRANKCASE SETCRANKCASE SET
-
212228-40H00-0A0 BEARING, CRANK THRUST (T:1.925-1.950)BEARING, CRANK THRUST (T:1.925-1.950)
-
212228-40H00-0B0 BEARING, CRANK THRUST (T:1.950-1.975)BEARING, CRANK THRUST (T:1.950-1.975)
-
212228-40H00-0C0 BEARING, CRANK THRUST (T:1.975-2.000)BEARING, CRANK THRUST (T:1.975-2.000)
-
212228-40H00-0D0 BEARING, CRANK THRUST (T:2.000-2.025)BEARING, CRANK THRUST (T:2.000-2.025)
-
212228-40H00-0E0 BEARING, CRANK THRUST (T:2.025-2.050)BEARING, CRANK THRUST (T:2.025-2.050)
-
212228-40H00-0F0 BEARING, CRANK THRUST (T:2.050-2.075)BEARING, CRANK THRUST (T:2.050-2.075)
-
316591-06B01 UNION, OIL STANDUNION, OIL STAND
-
409103-08122 BOLT (8X110)BOLT (8X110)
-
501547-0645A BOLTBOLT
-
601547-0685A BOLTBOLT
-
701550-0845A BOLTBOLT
-
801550-0860A BOLTBOLT
-
901550-0870A BOLTBOLT
-
1001550-0880A BOLTBOLT
-
1109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1211319-33E50 PINPIN
-
1309206-11007 PIN (8.4X11X20)PIN (8.4X11X20)
-
1409280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
1511313-40H00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
1601547-0612A BOLTBOLT
-
1716439-38B00 PLATE, PISTON JET REARPLATE, PISTON JET REAR
-
1801547-0612A BOLTBOLT
-
1901550-0812A BOLTBOLT
-
2009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2109248-10010 PLUG (10X10)PLUG (10X10)
-
2209168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
2309248-16012 PLUG (16X8)PLUG (16X8)
-
2409168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2509493-80009 JET, PISTON COOLING (0.8)JET, PISTON COOLING (0.8)
-
2609280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2709493-24009 JET, MISSION OIL (1.2)JET, MISSION OIL (1.2)
-
2809280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2909493-36004 JET, SECONDARY OIL (1.8)JET, SECONDARY OIL (1.8)
-
3009280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
3109247-14036 PLUG (14X20)PLUG (14X20)
-
3209168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3309248-14012 PLUG (14X12)PLUG (14X12)
-
3409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3511372-22H00 BOLT, SEC DRIVE UNIT COVERBOLT, SEC DRIVE UNIT COVER
-
3601547-0620A BOLTBOLT
-
3701547-0630A BOLTBOLT
-
3811611-48G00 SPACER, ENGINE MOUNTINGSPACER, ENGINE MOUNTING
-
3911652-40H20 BUSH, ENGINE MOUNTINGBUSH, ENGINE MOUNTING
-
4009103-10041-A05 BOLT (10X215)BOLT (10X215)
-
4109103-10118 BOLT (10X195)BOLT (10X195)
-
4208319-3110A NUTNUT
-
4337820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
4437822-33D00 BOLTBOLT
