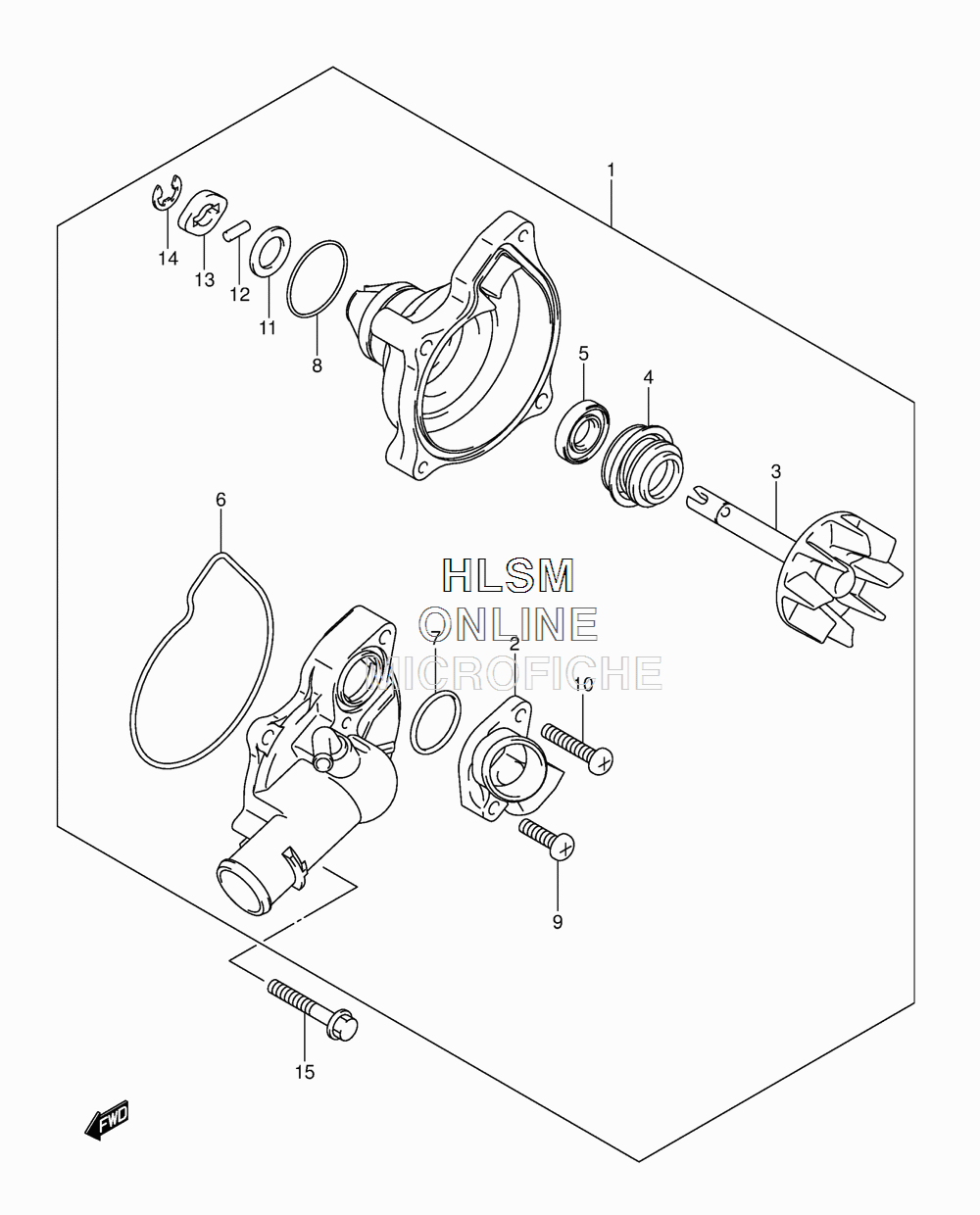

WATER PUMP для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
117400-40H00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217412-40H00 CONNECTORCONNECTOR
-
317491-40H00 IMPELLERIMPELLER
-
417470-02F10 SEAL, MECHANICALSEAL, MECHANICAL
-
517461-48G00 SEAL, OILSEAL, OIL
-
617418-40H00 O RINGO RING
-
717417-38A00 O RINGO RING
-
817435-33400 O RINGO RING
-
902112-0620A SCREWSCREW
-
1002112-0635A SCREWSCREW
-
1117432-07G00 WASHERWASHER
-
1217482-03G00 PINPIN
-
1317432-11H00 CAPCAP
-
1408332-1108A E RINGE RING
-
1501547-0645A BOLTBOLT
