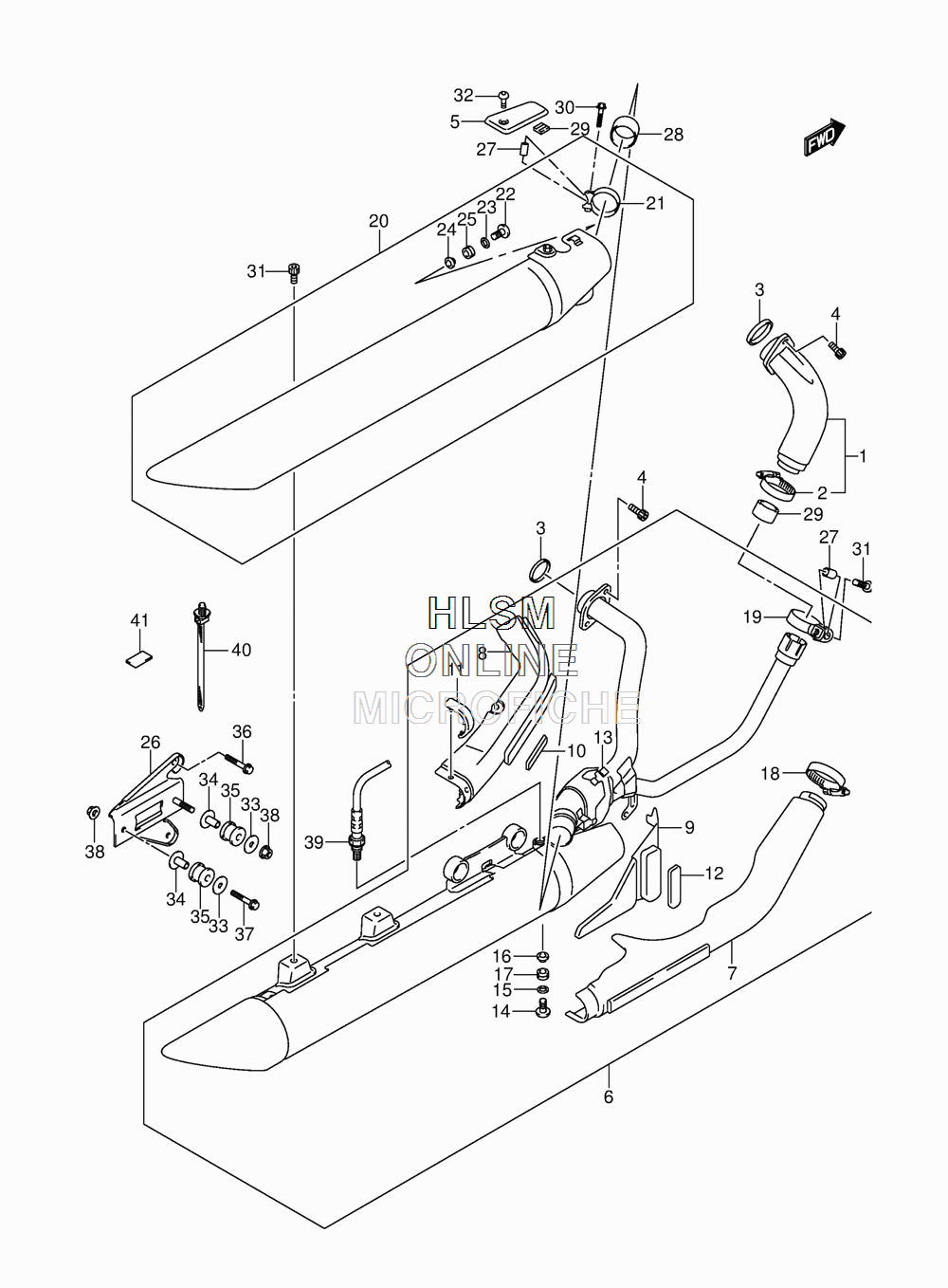

MUFFLER (CANADA) для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
114150-40H20 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
209402-45503 CLAMPCLAMP
-
314181-31D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
409106-08175 BOLT (8X30)BOLT (8X30)
-
514260-06J00 COVER, MUFFLER REAR UPPERCOVER, MUFFLER REAR UPPER
-
614305-06J00 MUFFLER, FRONTMUFFLER, FRONT
-
714170-06J00 COVER, EXHAUST FRONTCOVER, EXHAUST FRONT
-
814180-06J00 COVER, EXHAUST REARCOVER, EXHAUST REAR
-
914250-06J00 COVER, EXHAUST CENTERCOVER, EXHAUST CENTER
-
1014780-48G00 PROTECTOR, UPPERPROTECTOR, UPPER
-
1114782-06J00 CUSHION, EXHAUST PIPE COVERCUSHION, EXHAUST PIPE COVER
-
1214790-48G10 PROTECTOR, LOWERPROTECTOR, LOWER
-
1314795-10FA0 GROMMETGROMMET
-
1409139-06028 SCREW (6X20)SCREW (6X20)
-
1509160-06141 WASHER (6.5X20X1)WASHER (6.5X20X1)
-
1609180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1709320-08070 CUSHIONCUSHION
-
1809402-45503 CLAMPCLAMP
-
1914459-40H00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
2014340-06J00 BODY, MUFFLER REARBODY, MUFFLER REAR
-
2114459-40H00 CONNECTORCONNECTOR
-
2209139-06028 SCREW (6X20)SCREW (6X20)
-
2309160-06141 WASHER (6.5X20X1)WASHER (6.5X20X1)
-
2409180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
2509320-08070 CUSHIONCUSHION
-
2614410-40H00 BRACKET, MUFFLER SUPPORTBRACKET, MUFFLER SUPPORT
-
2714458-45G10 SPACER, MUFFLER CLAMPSPACER, MUFFLER CLAMP
-
2814771-40H00 CONNECTORCONNECTOR
-
2914795-10FA0 GROMMETGROMMET
-
3009103-08365 BOLT (8X35)BOLT (8X35)
-
3109106-08107 BOLT (8X20)BOLT (8X20)
-
3209139-06172 SCREW (6X10)SCREW (6X10)
-
3309160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
3409180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
3509320-12049 CUSHIONCUSHION
-
3601550-0816A BOLTBOLT
-
3701550-0845A BOLTBOLT
-
3808361-2508A NUTNUT
-
3918213-48G00 SENSOR, OXYGENSENSOR, OXYGEN
-
4009407-17403 CLAMP (L:154)CLAMP (L:154)
-
4144558-45G00 CUSHION, O2 SENSOR LEADCUSHION, O2 SENSOR LEAD
