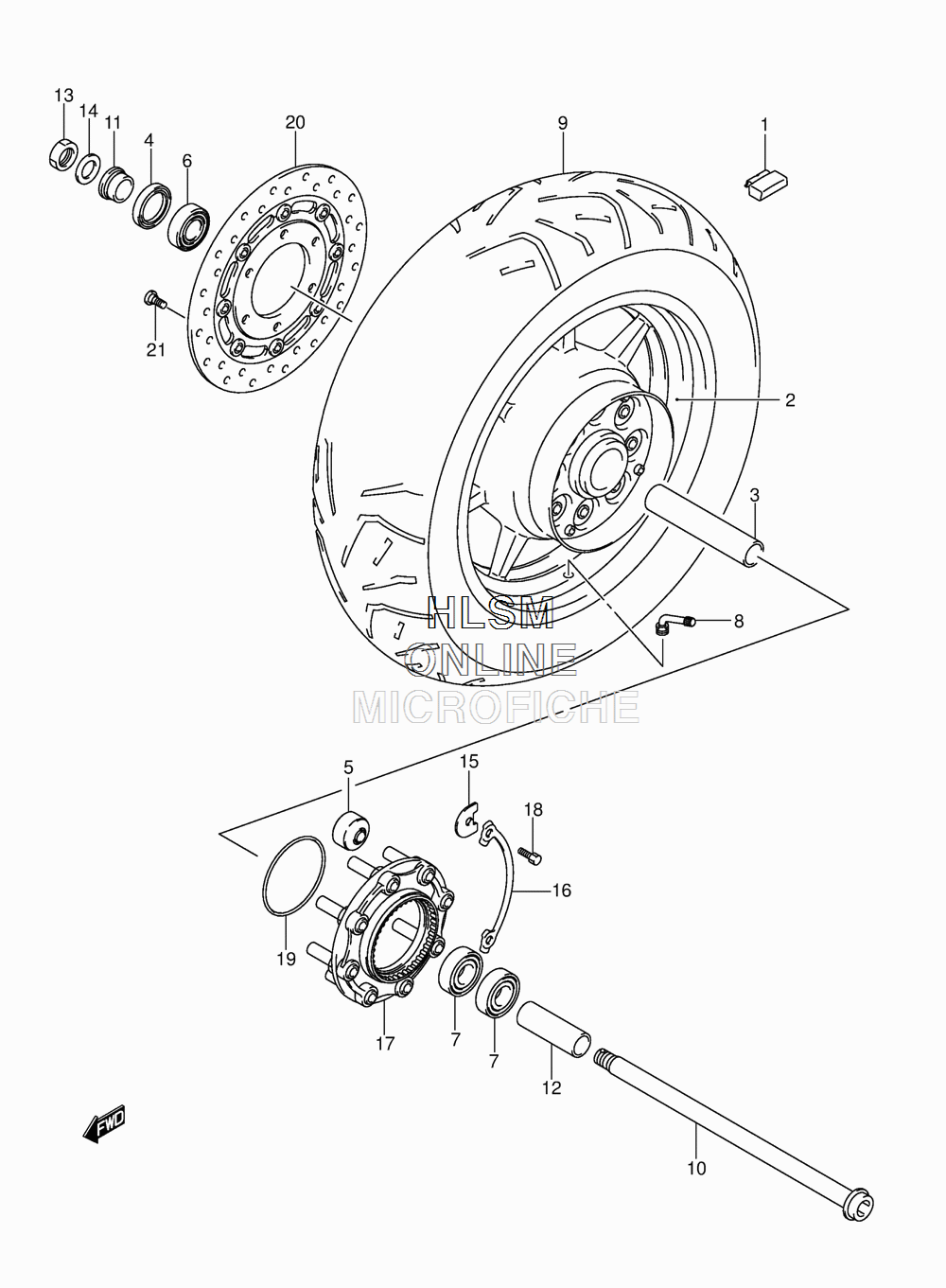

WHEEL - REAR для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
155411-22H00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
155412-22H00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
155413-22H00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
264111-06J00-20H WHEEL, REAR (16M/CXMT5.50) (SILVER)WHEEL, REAR (16M/CXMT5.50) (SILVER)
-
364731-40H00 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
409285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
509319-12019 BUSHBUSH
-
609262-25167 BEARING (25X52X15)BEARING (25X52X15)
-
708143-62057 BEARING B1 25X52X15BEARING B1 25X52X15
-
843130-39H00 VALVE ASSY, WHEEL RIM (PVR100)VALVE ASSY, WHEEL RIM (PVR100)
-
965110-06J00 TIRE, REAR (200/60R16M/C 79H)TIRE, REAR (200/60R16M/C 79H)
-
1064711-48G00 AXLE, REARAXLE, REAR
-
1164741-48G00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
1264772-48G00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1309159-22007 NUTNUT
-
1409160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1564677-48G10 WASHER, THRUSTWASHER, THRUST
-
1664679-48G00 WASHER, REAR HUB DRIVEN JOINTWASHER, REAR HUB DRIVEN JOINT
-
1764680-48G00 JOINT ASSY, REAR HUB DRIVENJOINT ASSY, REAR HUB DRIVEN
-
1809119-06049 BOLT (6X16)BOLT (6X16)
-
1909280-80001 O RING (D:2.4,ID:79.8)O RING (D:2.4,ID:79.8)
-
2069210-10F40 DISC, REAR BRAKEDISC, REAR BRAKE
-
2109106-08160 BOLT (8X21)BOLT (8X21)
