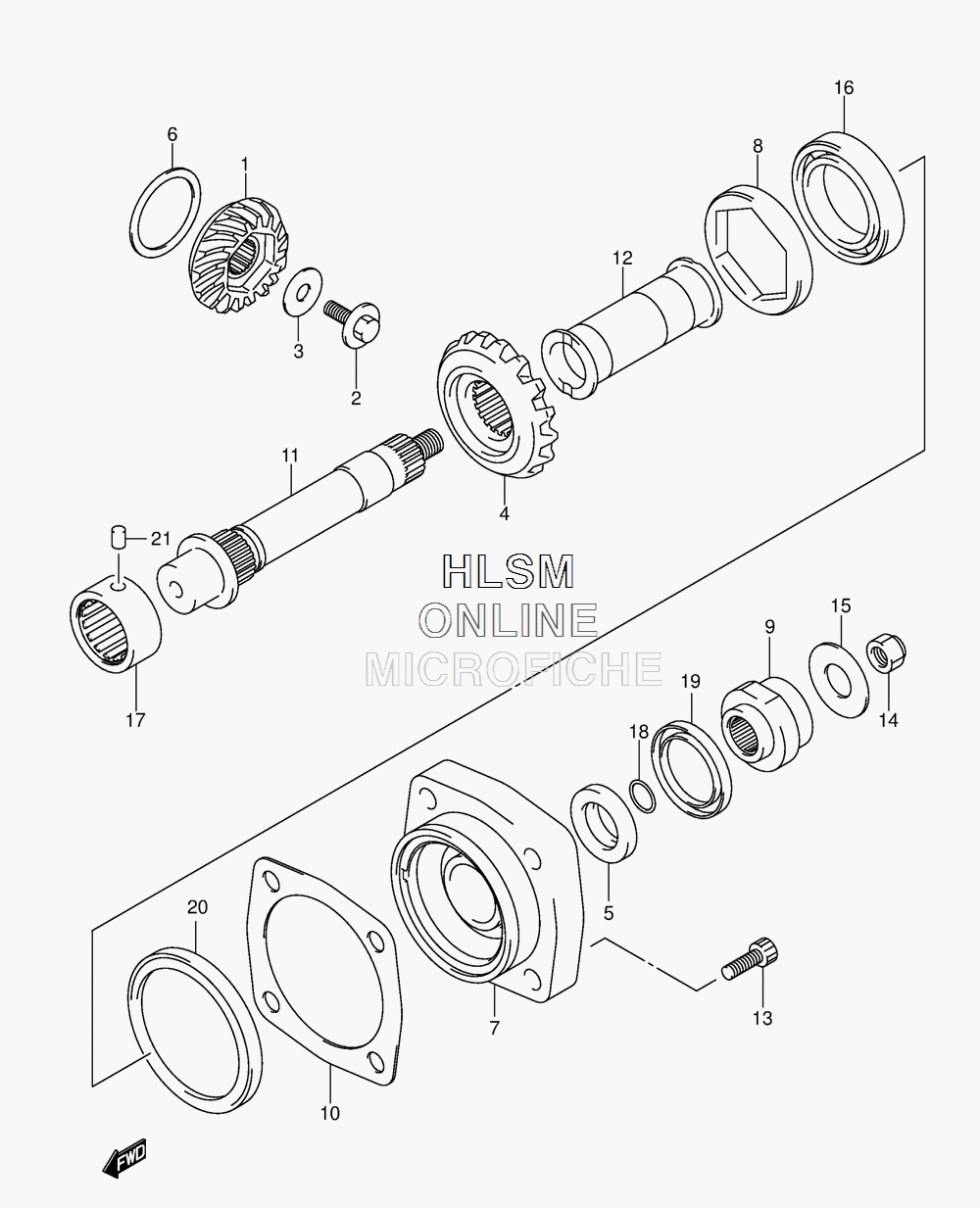

SECONDARY DRIVE GEAR для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
124911-40H00 GEAR, SECONDARY DRIVE (NT:17)GEAR, SECONDARY DRIVE (NT:17)
-
209103-12114 BOLT (12X24)BOLT (12X24)
-
308211-12341 WASHERWASHER
-
424921-40H00 GEAR, SECONDARY DRIVEN (NT:20)GEAR, SECONDARY DRIVEN (NT:20)
-
521102-31G00 SPACER, SECONDARY SHAFTSPACER, SECONDARY SHAFT
-
624935-40810 SHIM SET, SECONDARY DRIVESHIM SET, SECONDARY DRIVE
-
724941-40H00 HOUSING, SEC DRIVEN BEARINGHOUSING, SEC DRIVEN BEARING
-
824942-26D00 STOPPER, SEC DRIVEN BEARINGSTOPPER, SEC DRIVEN BEARING
-
924943-40H00 COUPLING, SEC DRIVEN BEVELCOUPLING, SEC DRIVEN BEVEL
-
1024945-40810 SHIM SET, SECONDARY DRIVENSHIM SET, SECONDARY DRIVEN
-
1124961-40H00 SHAFT, SECONDARY DRIVEN BEVELSHAFT, SECONDARY DRIVEN BEVEL
-
1224962-40H00 SPACER, SECONDARY DRIVEN BEVELSPACER, SECONDARY DRIVEN BEVEL
-
1309106-10087 BOLT (10X30)BOLT (10X30)
-
1409159-16003 NUTNUT
-
1509160-16040 WASHER (16.5X36X4)WASHER (16.5X36X4)
-
1609262-28014 BEARING (28X68X18)BEARING (28X68X18)
-
1709263-32021 BEARING (32X50X22)BEARING (32X50X22)
-
1809280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
-
1909283-38011 OIL SEAL (38X54X6)OIL SEAL (38X54X6)
-
2009286-84001 OIL SEAL (76X84X7)OIL SEAL (76X84X7)
-
2109202-07005 PIN (7X12)PIN (7X12)
