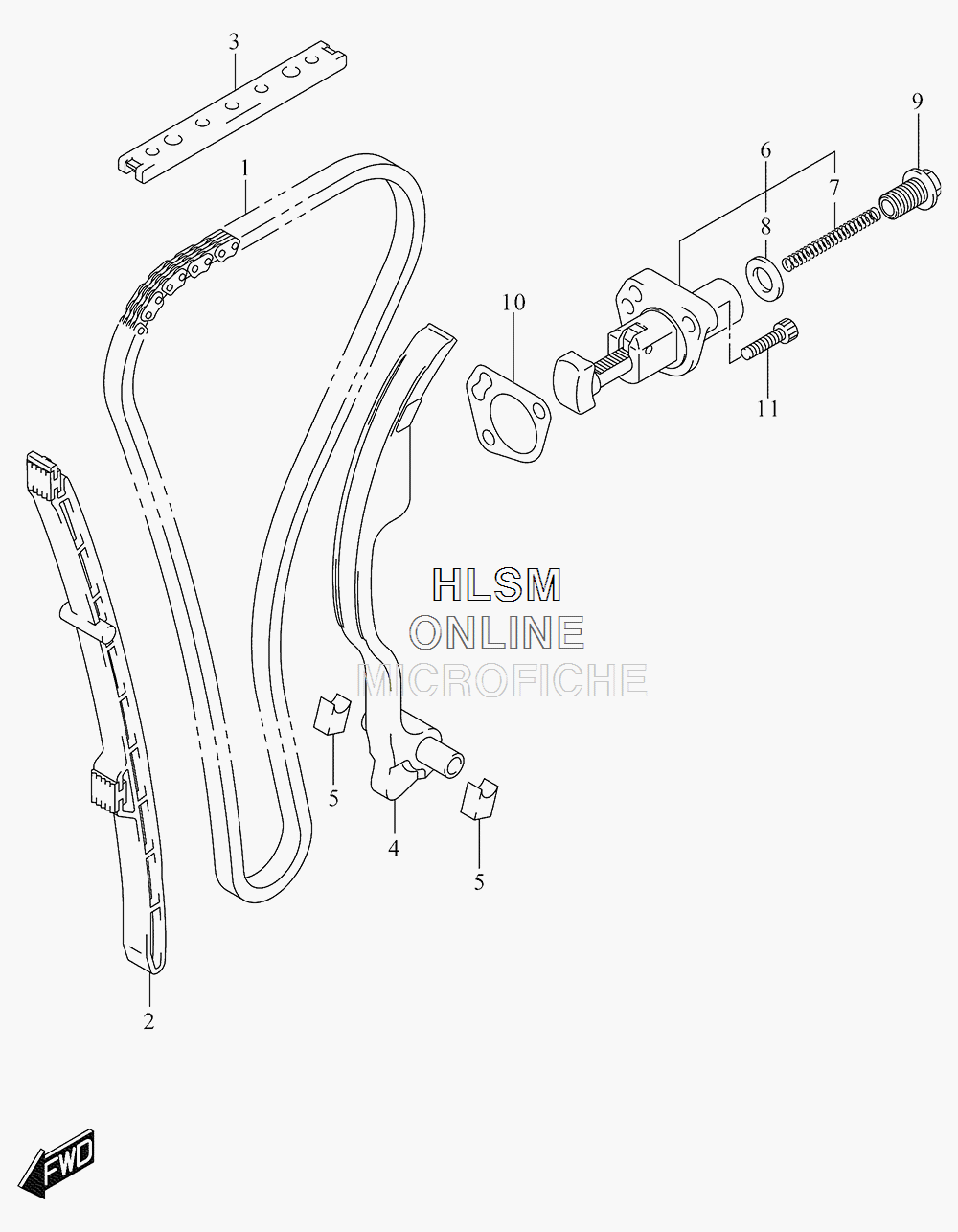

CAM CHAIN ASSY. W/ TENSIONER для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
112760-18H00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-18H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-18H00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412810-18H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
512814-34200 CUSHION, CAM TENSIONERCUSHION, CAM TENSIONER
-
612834-48G00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712831-35F00 SPRINGSPRING
-
812837-24F10 GASKETGASKET
-
912833-17G00 PLUG, TENSIONER ADJUSTERPLUG, TENSIONER ADJUSTER
-
1012837-27G00 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1107130-0625A BOLTBOLT
