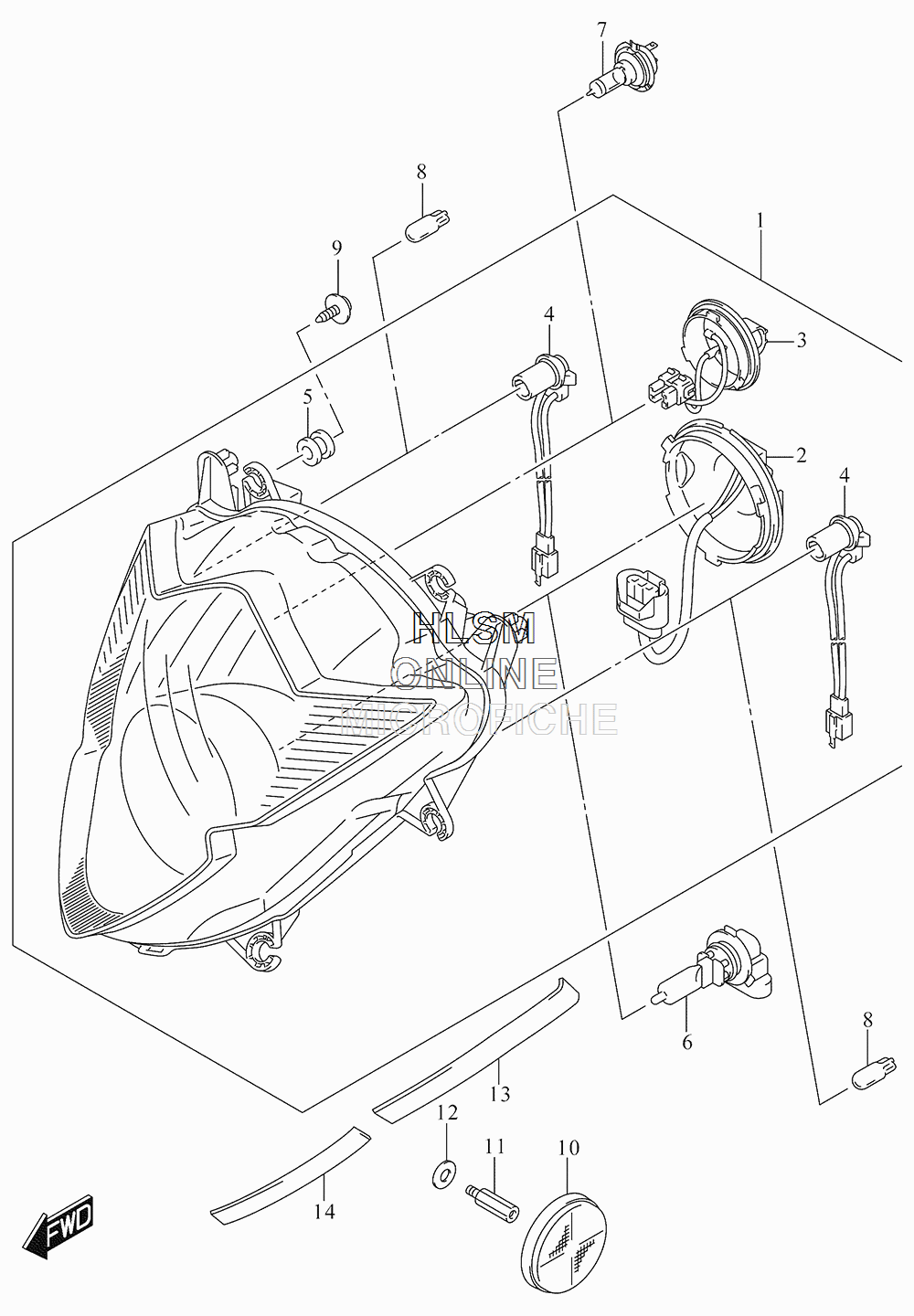

HEADLAMP для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
135100-41G01-999 HEADLAMP ASSYHEADLAMP ASSY
-
235179-41G30 BACK COVER, LOWERBACK COVER, LOWER
-
335179-41G70 BACK COVER, UPPERBACK COVER, UPPER
-
436118-29G51 CORD ASSYCORD ASSY
-
509320-09039 CUSHIONCUSHION
-
609471-12151 BULB (12V,60W)BULB (12V,60W)
-
709471-12188 BULB (12V,55W) (PHILIPS)BULB (12V,55W) (PHILIPS)
-
809471-12216 BULB (12V5W)BULB (12V5W)
-
909136-05062 SCREW (5X15)SCREW (5X15)
-
1035950-14A11 REFLEX REFLECTOR ASSYREFLEX REFLECTOR ASSY
-
1109119-05023 BOLT (5X10)BOLT (5X10)
-
1208322-0105B WASHERWASHER
-
1333652-41G50 TAPE, HEADLAMP LENS, NO.1TAPE, HEADLAMP LENS, NO.1
-
1433652-41G60 TAPE, HEADLAMP LENS, NO.2TAPE, HEADLAMP LENS, NO.2
