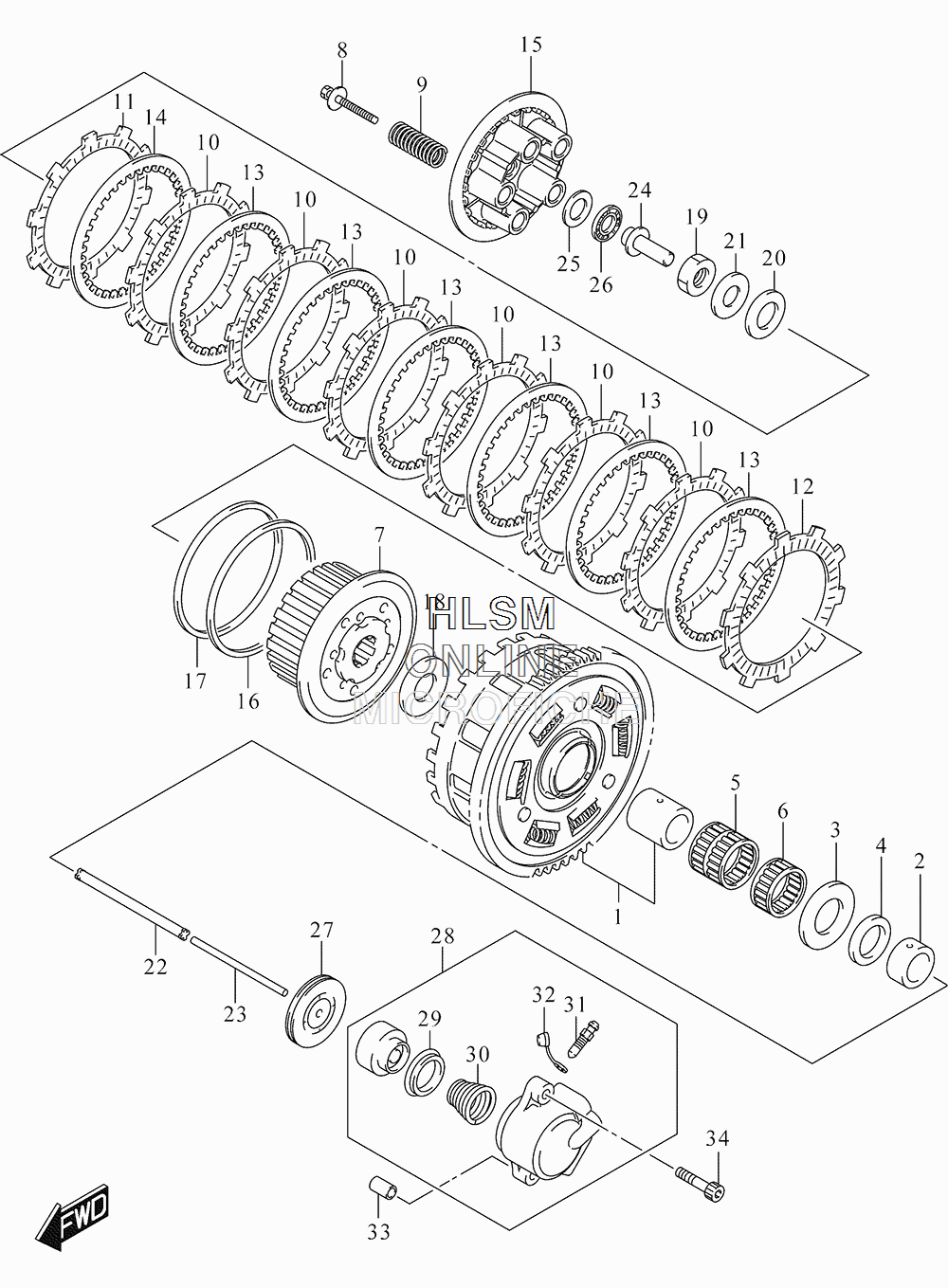

CLUTCH для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
121200-17810 GEAR ASSY, PRIMARY DRIVEN (NT:85)GEAR ASSY, PRIMARY DRIVEN (NT:85)
-
221253-01H10 SPACER, OIL PUMP DRIVESPACER, OIL PUMP DRIVE
-
309160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
409160-25036 WASHER (25X30X3)WASHER (25X30X3)
-
509263-35015 BEARING (35X40X26.8)BEARING (35X40X26.8)
-
609263-35045 BEARING (35X40X12)BEARING (35X40X12)
-
721410-44G00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
821412-35F00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
921413-17H00 SPRING, CLUTCHSPRING, CLUTCH
-
1021441-31E90 PLATE, CLUTCH DRIVE NO.1 (T:3.0)PLATE, CLUTCH DRIVE NO.1 (T:3.0)
-
1121441-31E60 PLATE, CLUTCH DRIVE NO.2 (T:3.0)PLATE, CLUTCH DRIVE NO.2 (T:3.0)
-
1221442-31E21 PLATE, CLUTCH DRIVE NO.3 (T:3.0)PLATE, CLUTCH DRIVE NO.3 (T:3.0)
-
1321451-31E50 PLATE, CLUTCH DRIVEN NO.1 (T:2.6)PLATE, CLUTCH DRIVEN NO.1 (T:2.6)
-
1421451-31E40 PLATE, CLUTCH DRIVEN NO.2 (T:2.3)PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
-
1521462-35F00 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
1621471-31E20 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1721472-31E01 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1809160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1909159-24010 NUTNUT
-
2009181-25223 SHIM (25X38X1)SHIM (25X38X1)
-
2109164-24006 WASHERWASHER
-
2223110-27A00 ROD, CLUTCH PUSH (RH)ROD, CLUTCH PUSH (RH)
-
2323111-42F00 ROD, CLUTCH PUSH (LH)ROD, CLUTCH PUSH (LH)
-
2423121-31E20 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2509160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2609263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2709283-06011 OIL SEAL (6X52X10)OIL SEAL (6X52X10)
-
2823160-18H11 CYLINDER, CLUTCH RELEASECYLINDER, CLUTCH RELEASE
-
2923163-05A00 CUPCUP
-
3023164-05A00 SPRINGSPRING
-
3159121-01A00 BLEEDERBLEEDER
-
3259122-01A00 CAP, BLEEDERCAP, BLEEDER
-
3304211-09129 KNOCK PINKNOCK PIN
-
3409103-06251 BOLT (6X30)BOLT (6X30)
