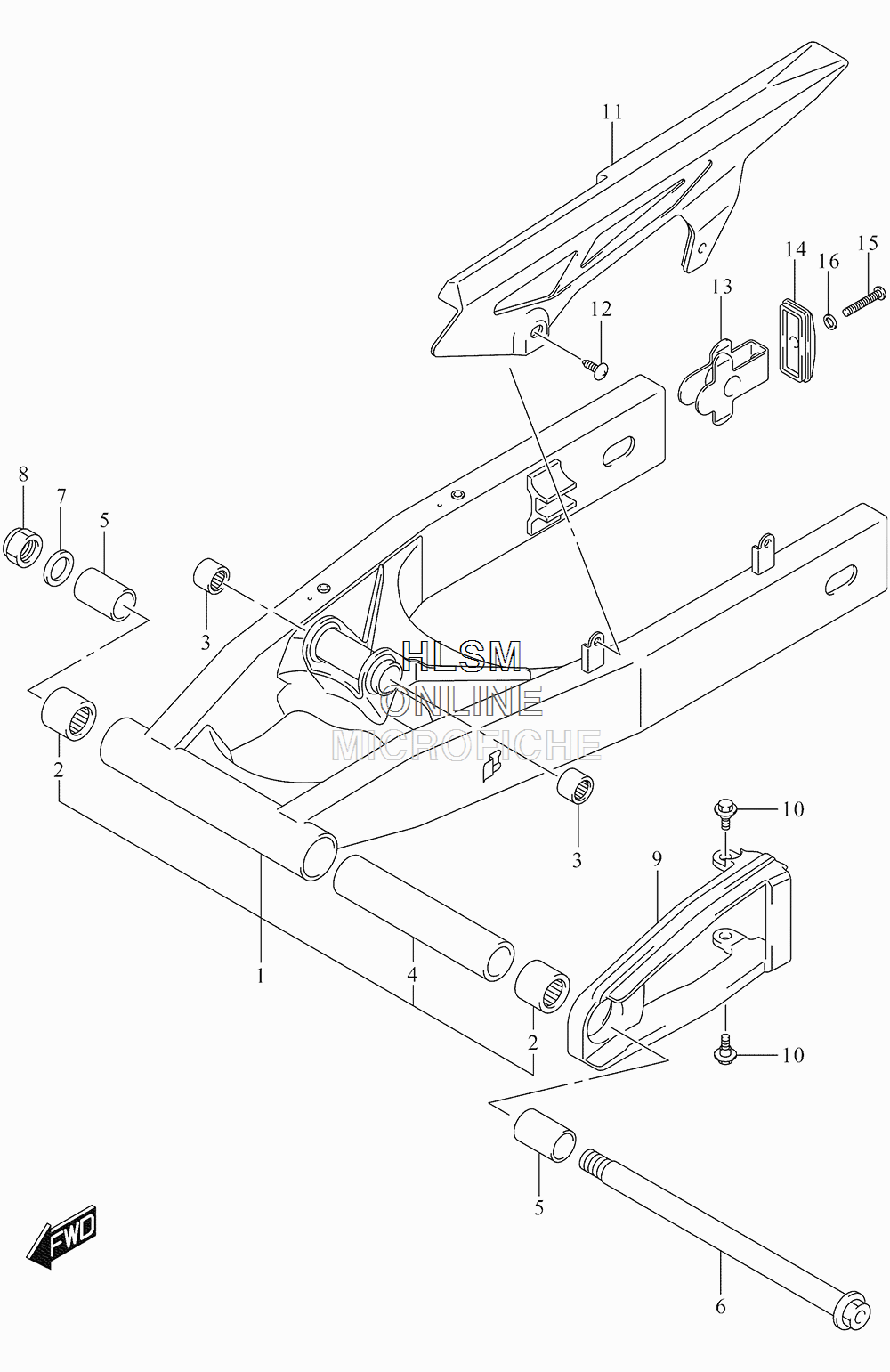

REAR SWINGARM для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
161000-17H10-YAP SWINGING ARM ASSY, REAR (BLACK)SWINGING ARM ASSY, REAR (BLACK)
-
209263-25059 BEARING (25X33X35)BEARING (25X33X35)
-
309263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
409180-20108 SPACER (20.8X27.2X146)SPACER (20.8X27.2X146)
-
561251-21E00 SPACER, REAR SWGARM PIVOTSPACER, REAR SWGARM PIVOT
-
661211-31E00 SHAFT, PIVOTSHAFT, PIVOT
-
709160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
809159-18007 NUTNUT
-
961273-17H10 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1161310-19F00 CASE, CHAINCASE, CHAIN
-
1209139-06083 SCREW (6X16)SCREW (6X16)
-
1361410-21E00 ADJUSTER, CHAIN (RH)ADJUSTER, CHAIN (RH)
-
1461421-08J00 PLATE, ADJUSTER GUIDEPLATE, ADJUSTER GUIDE
-
1509106-08119 BOLT (8X50)BOLT (8X50)
-
1609164-08015 WASHERWASHER
