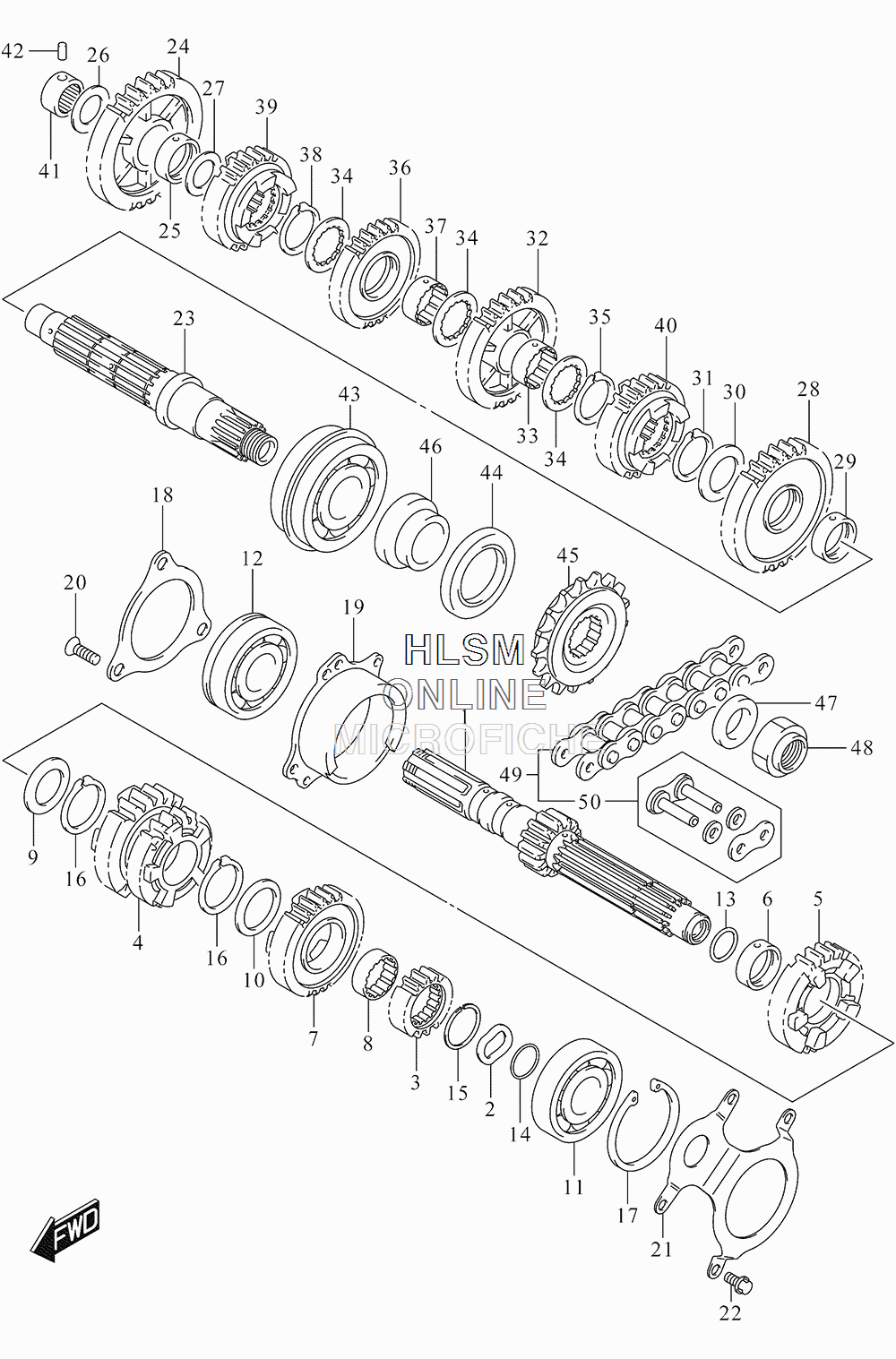

TRANSMISSION для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
124120-17H10 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224127-18H00 WASHER, CNTRWASHER, CNTR
-
324221-18H10 GEAR, 2ND DRIVE (NT:17)GEAR, 2ND DRIVE (NT:17)
-
424231-17H00 GEAR, 3RD AND 4TH DRIVE (NT:20/22)GEAR, 3RD AND 4TH DRIVE (NT:20/22)
-
524251-17H00 GEAR, 5TH DRIVE (NT:24)GEAR, 5TH DRIVE (NT:24)
-
624252-35F00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
724261-18H00 GEAR, 6TH DRIVE (NT:28)GEAR, 6TH DRIVE (NT:28)
-
824262-35F10 BUSH, 6TH DRIVEBUSH, 6TH DRIVE
-
909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
1009167-27001 LOCK WASHERLOCK WASHER
-
1109262-20080 BEARING (20X52X15) (LH)BEARING (20X52X15) (LH)
-
1209262-25163 BEARING (25X62X17) (RH)BEARING (25X62X17) (RH)
-
1309280-17004 O RING (D:1.9,ID:16.6)O RING (D:1.9,ID:16.6)
-
1409280-20001 O RING (D:1,ID:19.5)O RING (D:1,ID:19.5)
-
1509380-27004 CIRCLIPCIRCLIP
-
1609380-27006 CIRCLIPCIRCLIP
-
1708331-41529 CIRCLIPCIRCLIP
-
1824751-18H00 RETAINER, CNTR SHAFT BRG (RH)RETAINER, CNTR SHAFT BRG (RH)
-
1924770-18H10 HOUSING, CNTR SHAFT (RH)HOUSING, CNTR SHAFT (RH)
-
2009139-06159 SCREW (6X20)SCREW (6X20)
-
2124741-18H10 RETAINER, CL PUSH RODRETAINER, CL PUSH ROD
-
2209103-06236 BOLT (6X12)BOLT (6X12)
-
2324131-46H00 SHAFT, DRIVESHAFT, DRIVE
-
2424311-18H00 GEAR, 1ST DRIVEN (NT:40)GEAR, 1ST DRIVEN (NT:40)
-
2524312-02F00 BUSH, 1ST DRIVENBUSH, 1ST DRIVEN
-
2609181-20251 SHIM (20X34X1) (RH)SHIM (20X34X1) (RH)
-
2709181-22223 SHIM (22X34X1) (LH)SHIM (22X34X1) (LH)
-
2824321-18H00 GEAR, 2ND DRIVEN (NT:35)GEAR, 2ND DRIVEN (NT:35)
-
2924322-02F01 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
3009160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
3109380-27006 CIRCLIPCIRCLIP
-
3224331-17H00 GEAR, 3RD DRIVEN (NT:32)GEAR, 3RD DRIVEN (NT:32)
-
3324332-46H00 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
3424333-02F00 WASHER, 3RD AND 4TH DRIVENWASHER, 3RD AND 4TH DRIVEN
-
3509380-27006 CIRCLIPCIRCLIP
-
3624341-18H00 GEAR, 4TH DRIVEN (NT:30)GEAR, 4TH DRIVEN (NT:30)
-
3724332-46H00 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
3809380-27006 CIRCLIPCIRCLIP
-
3924351-18H00 GEAR, 5TH DRIVEN (NT:29)GEAR, 5TH DRIVEN (NT:29)
-
4024361-17H00 GEAR, 6TH DRIVEN (NT:31)GEAR, 6TH DRIVEN (NT:31)
-
4109263-20087 BEARING (20X34X13.5) (RH)BEARING (20X34X13.5) (RH)
-
4209261-06003 PIN (6X10) (RH)PIN (6X10) (RH)
-
4309267-30011 BEARING (30X62X23.8) (LH)BEARING (30X62X23.8) (LH)
-
4409283-42018 OIL SEAL (42X62X7)OIL SEAL (42X62X7)
-
4527510-20F00 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
4627531-17H00 SPACER, SPROCKETSPACER, SPROCKET
-
4727532-17H00 SPACER, SPROCKETSPACER, SPROCKET
-
4809159-20004 NUTNUT
-
4927600-06G40-120 CHAIN ASSY (RK525SMOZ8,120LE) (L:120->118)CHAIN ASSY (RK525SMOZ8,120LE) (L:120->118)
-
5027620-06G40 JOINT SET, DRIVE CHAINJOINT SET, DRIVE CHAIN
